Solid Four Bolt Ucf201-8 Square Flanged Cast Housing Mounted Bearing With 1/2 Inch Inner Diameter Set Screw Type For Heavy Duty Shaft Work

UCF201-8 1/2 Inch Bearing Square Flange Mount Sealed Ball Unit
✔️ 1/2 Inch Shaft, Square Flange, 3/8 Bolt, Set Screw Lock.

This four bolt flange unit delivers reliable motion control for industrial machinery where alignment and stability are critical. You get one sealed ball bearing housed in a durable cast housing designed for heavy duty shaft support applications.

✅ Inner Diameter measures 1/2 inch perfect for standard shaft sizing ✅ Basic Load rating reaches 12.8 KN for demanding operational stress ✅ Four bolt hole pattern secures fast mounting with 3/8 bolt size ✅ Set screw locking mechanism ensures firm grip on rotating parts ✅ Includes single UCF201-8 bearing unit with housing number F204

💡 Why do users select set screw type locked bearings for linear slide units?
Most mechanical systems require secure shaft fixation under vibration.
- Seal protection keeps out dust during active movement phases.
- Cast iron housing resists deformation in high heat environments.
- Precise fit reduces play between moving components smoothly.

✝️

UCF201-8 Four Bolt Flange Unit Set Screw Type 1/2" inch Inner Diameter

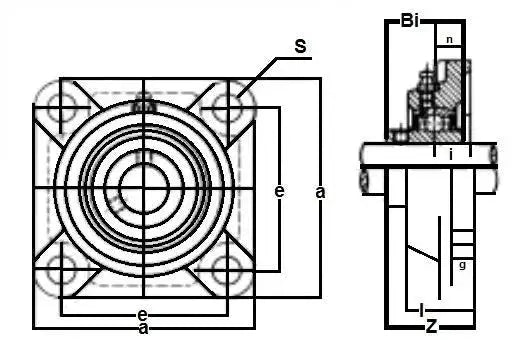

UCF201-8 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 1/2" inch UCF201-8 Ball Bearing Flange Mounted Bearing Bolt Size: 3/8" inch Shaft Diameter: 1/2" inch Basic Load (Cr): 12.8 KN Basic Load (Cor): 6.65 KN Bearing No: UC201-8 Housing No: F204 Quantity: 1 Bearing Dimensions (inches) a e i g l s z Bi n 3-3/8" 2-33/64" 19/32" 15/32" 1" 15/32" 1-5/16" 1-7/32" 1/2"
