Built Legit 25mm Linear Motion Slide Unit With Twin Block Aluminum Pillow Bearing Mount Pre Installed Ball Bushings That Roll Slick For Smooth Industrial Projects And Custom Mods

Pack Of One Dual Shaft Sealed Pillow Block Linear Slide Unit
✔️ Precision Aluminum Runner Frame with Matched Bearings

This twin carriage housing acts as a compact linear slide unit for heavy machinery. Fabricators and electronics engineers install it to guide precise motion along steel rods. The sealed ball bearings inside resist dust while keeping friction near zero.

✅ Preassembled pair of durable sealed bearings ✅ High rigidity alloy body resists bending stress ✅ Optimized clearance for steady rotational freedom ✅ Flat base ready for direct bolt pattern drilling ✅ Smooth glide performance on polished tool steel rods

💡 What makes a twin carriage linear slide unit better for automated equipment?

The matched runner design keeps parallel tracking stable under continuous duty cycles.

- Deep groove ball contacts lower startup drag on solid shafts - Tapped base plate gives you a handy way to mount onto wood or metal - Compact footprint saves valuable workspace on smaller gantry frames - Standardized spacing simplifies retrofit work on legacy machining tools

Specification	Measurement
Shaft Compatibility	25mm
Overall Height	27mm
Body Width	60mm
Total Length	130mm
Base Plate Length	100mm
Fastener Type	M6 Thread

✝️

Double Size Aluminium Pillow Block Open Slide unit with 2 pre-installed 25mm Ball bushing Can be used with 25mm Shafts

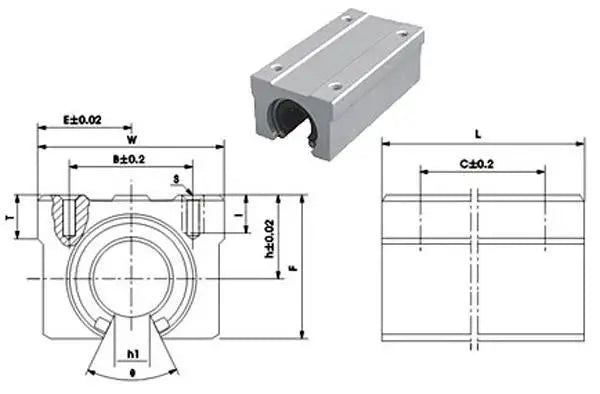

Shaft Diameter	Main Dimensions (mm)								Mounting Dimensions (mm)
	h	e	W	L	F	T	h1	B	C	S	I
25mm	27	30	60	130	47	14	11.5	40	100	M6	12
