1-1/2" Bore Mounted Bearing UCF208-24 + Square Flanged Housing
Reliable shipping
Flexible returns

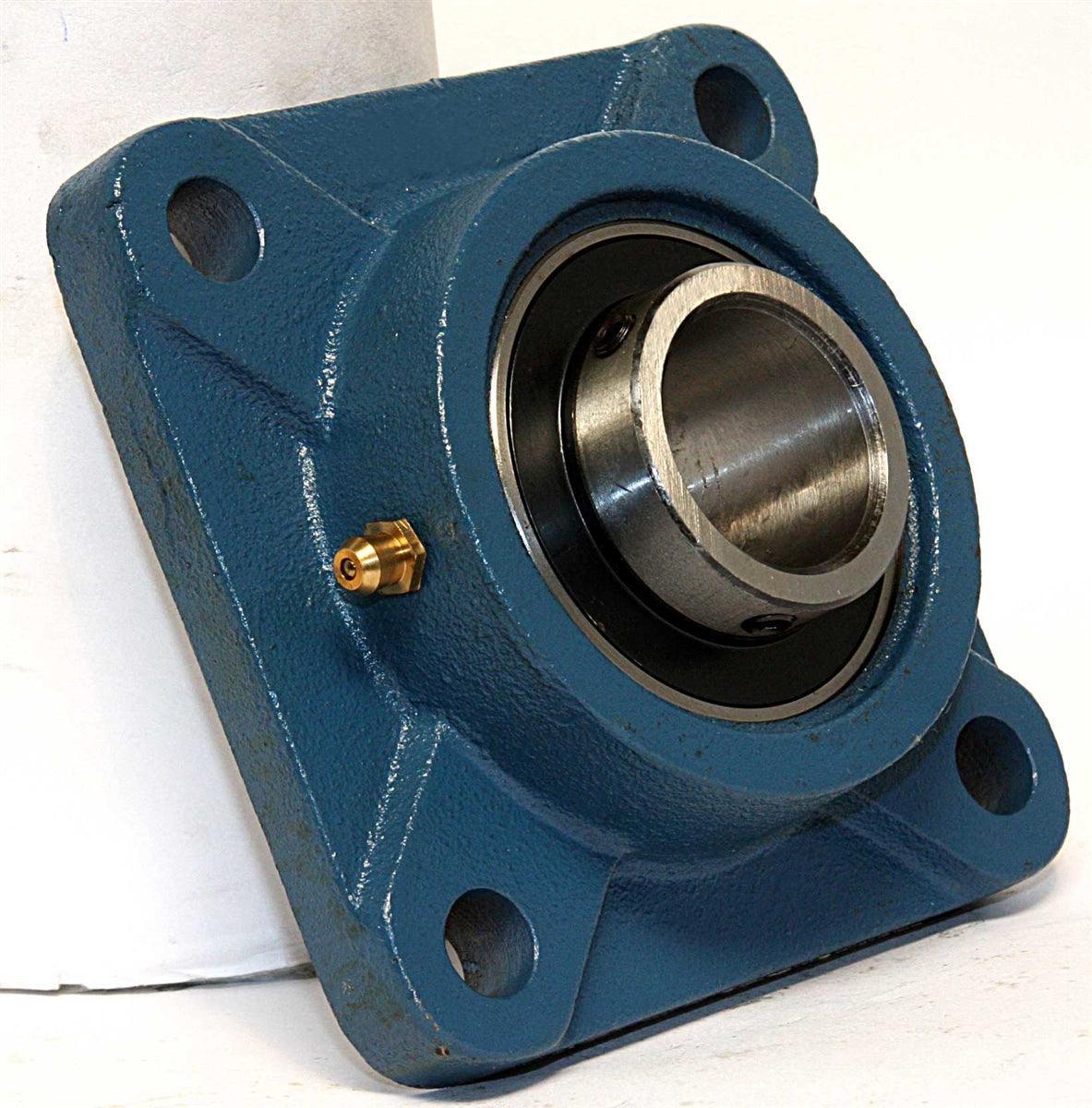

UCF208-24 Four Bolt Flange Bearing Unit
✨ 1-1/2" ID - Set Screw Lock, Cast Iron Housing
The UCF208-24 is a heavy-duty four-bolt flange bearing unit, perfect for mounting on flat surfaces where you need solid support for a rotating shaft. With a 1-1/2" inner diameter and set screw locking collar, it's built to stay put under load. Ideal for conveyors, machinery, and agricultural equipment.
🟢 Pack size: One flange bearing unit
🟢 Type: Four-bolt flange unit (UCF series)
🟢 Shaft diameter: 1-1/2" inch
🟢 Bearing number: UC208-24
🟢 Housing number: F208
🟢 Lock type: Set screw
🟢 Bolt hole size: 3/8" inch
🟢 Dynamic load rating (Cr): 29.1 kN
🟢 Static load rating (Cor): 17.8 kN
🟢 Mounting Dimensions (inch):
| a (Bolt Hole Ctr-Ctr) | e (Flange Width) | i (Bolt Hole Dia.) | g | l | s | z | Bi (Bearing Width) | n (Shaft Height) |
|---|---|---|---|---|---|---|---|---|
| 5-1/8" | 4-1/64" | 53/64" | 5/8" | 1-13/32" | 5/8" | 2-1/64" | 1.937" | 3/4" |
