1-1/2" Heavy Duty Machined Steel Drop-in Ball Transfer Unit 551 lbs

1-1/2" Heavy Duty Ball Transfer Unit
✨ 551 lbs Load - Machined Steel - Drop-In Style

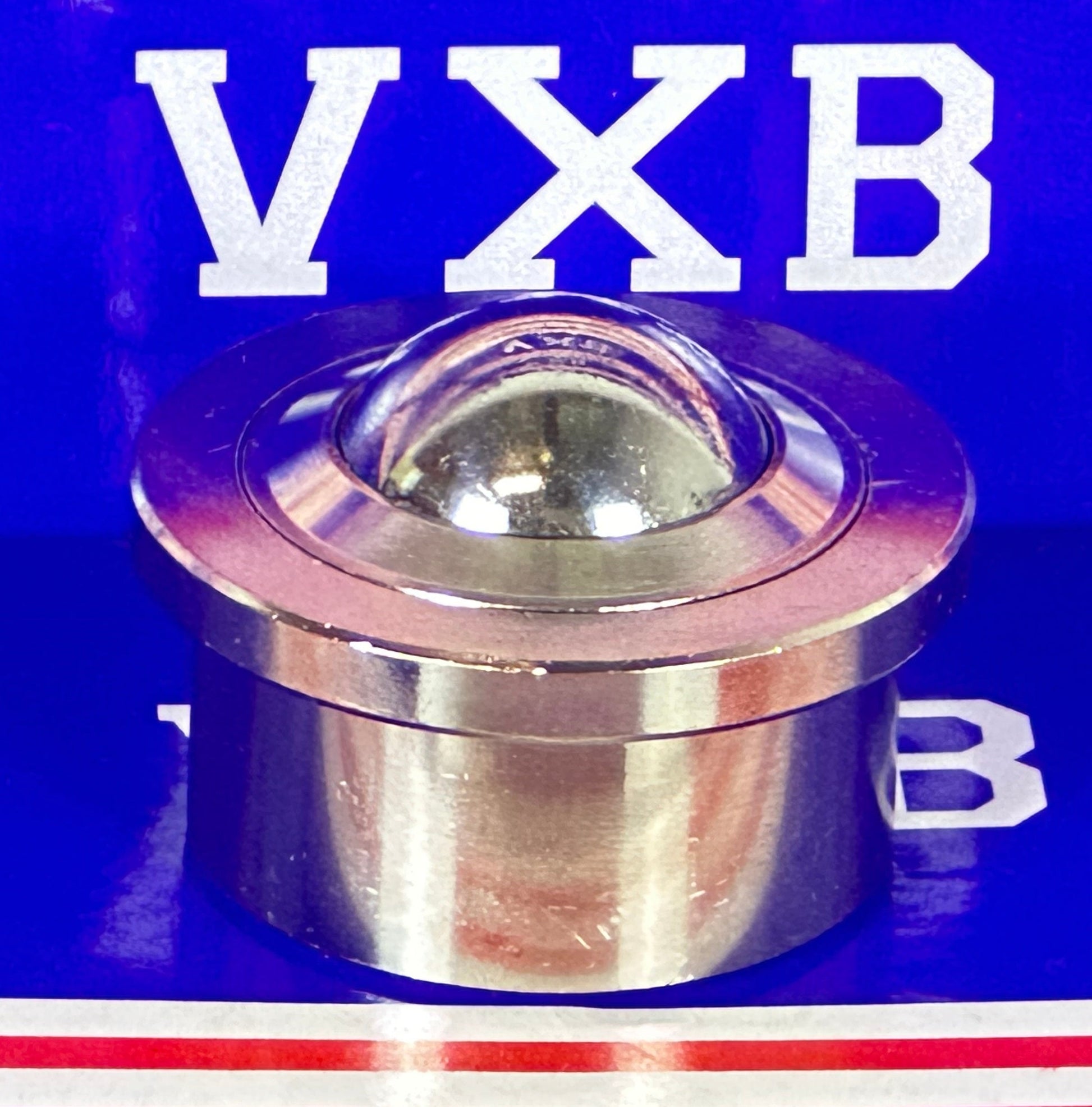

This rugged ball transfer unit is built from solid machined steel and supports up to 551 lbs of rolling load. Featuring a 1-1/2" chrome-plated main ball and a plated steel cover, it's perfect for conveyor tables, cargo platforms, and transfer systems demanding durability and smooth multidirectional movement.

🟢 Pack size: 1 unit
🟢 Load capacity: 551 lbs
🟢 Breaking load: 661 lbs
🟢 Ball diameter: 1" (25.4mm)
🟢 Housing outer diameter (D): 1.5" (38mm)
🟢 Overall height: 1.22" (31mm)
🟢 Recess depth (h1): 0.28" (7.2mm)
🟢 Base depth (h2): 0.66" (17mm)
🟢 Length (L): 1.77" (45mm)
🟢 Weight: 0.17 lbs
🟢 Ball and support: Chrome-plated
🟢 Housing: Hardened machined steel with plated steel cover
