1-1/4 Bearing UCF-206-20 + Square Flanged Housing Mounted Bearing
  • 1-1/4 Bearing UCF-206-20 + Square Flanged Housing Mounted Bearing
  • 1-1/4 Bearing UCF-206-20 + Square Flanged Housing Mounted Bearing
1-1/4 Bearing UCF-206-20 + Square Flanged Housing Mounted Bearing

1-1/4 Bearing UCF-206-20 + Square Flanged Housing Mounted Bearing

$18.65 $26.99

Reliable shipping

Flexible returns

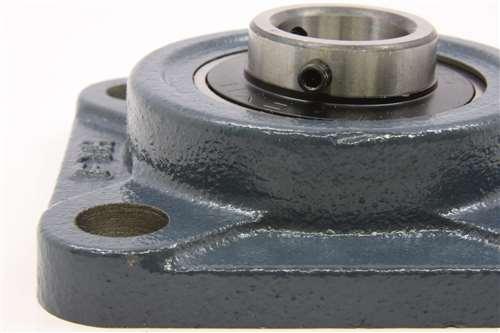

UCF-206-20 Four Bolt Flange Unit
Set Screw Type
1 1/4" inch Inner Diameter

UCF-206-20 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 1 1/4" inch.

  • UCF-206-20 Ball Bearing
  • Flange Mounted Bearing
  • Material: Chrome Steel
  • Lubrication: Pre Lubricated
  • Bolt Size: 3/8" inch
  • Shaft Diameter: 1 1/4" inch
  • Basic Load (Cr): 19,500 N
  • Basic Load (Cor): 11,300 N
  • Bearing No: UC206-20
  • Housing No: F206
  • Quantity: 1 Bearing


Dimensions (inches)
a e i g l s z Bi n
4-1/4" 3-17/64" 45/64" 9/16" 1-7/32" 15/32" 1-19/32" 1-1/2" 5/8"
