Flanged Ball Bearing Unit UCF206-20 Four Bolt Square Housing With Set Screw Bore One And One Quarter Inch Chrome Steel Pre Lubricated Shaft Diameter Three Eighths Inch Heavy Duty Mounted Bearing Assembly

1-1/4 inch bore UCF206-20 flange bearing with square housing
✔️ 1-1/4 inch bore, four-bolt flange, set screw design, chrome steel

UCF206-20 Four Bolt Flange Unit is a mounted bearing with a square housing, designed to support shafts in machinery where compact, rigid mounting is needed. The set screw type bearing uses chrome steel components and comes pre-lubricated, making it a solid choice for conveyors, gearboxes, and automation equipment.

✅ Four bolt flange mounted bearing, UCF206-20, 1-1/4" bore
✅ Set screw type, chrome steel bearing, pre-lubricated
✅ Shaft diameter compatible 1-1/4", bolt size 3/8"
✅ Basic load ratings: Cr 19,500 N; Cor 11,300 N

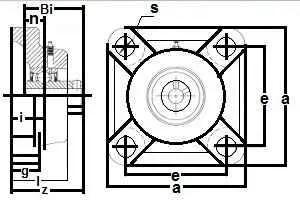

Dimension	Value
a	4-1/4"
e	3-17/64"
i	45/64"
g	9/16"
l	1-7/32"
s	15/32"
z	1-19/32"
Bi	1-1/2"
n	5/8"

💡 What is a flange mounted bearing with square housing commonly used for in machinery?

A handy solution for supporting rotating shafts in tight spaces while keeping alignment true.

- Provides precise shaft support in compact layouts - Maintains alignment in driven systems - Pre-lubricated for quick setup - Works with set screw and four-bolt flange configurations✝️

UCF206-20 Four Bolt Flange Unit Set Screw Type 1 1/4" inch Inner Diameter

Dimensions (inches) a e i g l s z Bi n 4-1/4" 3-17/64" 45/64" 9/16" 1-7/32" 15/32" 1-19/32" 1-1/2" 5/8"
