Heavy Duty HCF208-25 Square Flanged Housing Bearing Unit With Eccentric Collar And Set Screws Perfect For 1-9/16 Inch Shafts In Industrial Machinery And Heavy Loads That Need Durable Four Bolt Mounting Support

Flanged Ball Bearing Unit 1 9/16 Shaft Eccentric Collar Lock ✔️ 4 Bolt Flange Unit 1/2 Bolt Size 1 9/16 Inner Diameter Basic Load

This flanged housing ball bearing unit secures rotating shafts within machinery frames. It enables users to achieve precise shaft alignment while keeping internal components protected from dust and debris during continuous industrial operations. The design ensures reliable performance under radial loads and misalignment scenarios common in conveyor systems. ✅ Four bolt flange mounts securely to solid metal plates providing stable rotation support ✅ Set screw locking system grips shafts tightly preventing unexpected slippage issues ✅ Inner diameter accommodates 1 9/16 inch round stock with proper fit tolerance standards ✅ Dynamic load capacity meets 32650 Newtons demand for demanding factory floor tasks ✅ Includes single sealed ball bearing ready for immediate installation in equipment designs

💡 How do square flange mounted units support heavy radial loads effectively? These housings distribute stress evenly across four anchor points for increased structural integrity when handling vibration. Standardized dimensions allow easy integration into existing machine bases.

- Anchor point bolts clamp down firmly onto surface plate to prevent shifting under torque - Internal bore aligns closely with shaft diameter reducing wobble during rotation cycles - Cast iron outer casing absorbs shock forces better than lighter plastic alternatives used elsewhere - Sealing keeps lubrication inside preventing premature wear from environmental contaminants exposure✝️

HCF208-25 Four Bolt Flange Unit Set Screw Type with Eccentric Collar 1 9/16" Inch Inner Diameter

HCF208-25 Four Bolt Flange Unit with eccentric collar, bearing is set screw type, inner diameter 1 9/16" inch HCF208-25 Ball Bearing Flange Mounted Bearing with eccentric Collar Bolt Size: 1/2" inch Shaft Diameter:1 9/16"inch Basic Load (Cr): 32650 N Basic Load (Cor): 16236 N Bearing No: HC208-25 Housing No: F208 Quantity: 1 Bearing

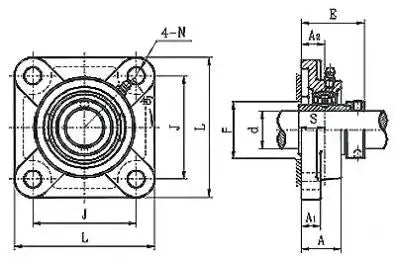

Dimensions
L	J	A2	A1	A	E	N	S	F min.
5 1/8"	4 1/32"	27/32"	19/32"	1 13/32"	2 7/32"	9/16"	27/32"	2 5/32"
