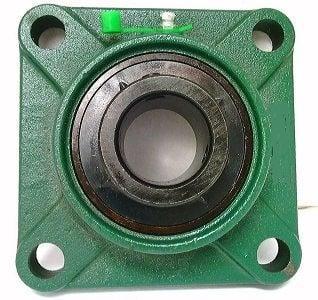

1" Bearing UCF205-16 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing
Sale price
$26.96
Regular price
$29.99
Reliable shipping
Flexible returns
UCF205-16 Flange Bearing Unit
✨ 1" Inch Set Screw Style with Black Oxide Coating
This UCF205-16 is a four-bolt flange bearing unit with a 1" inner diameter insert bearing, secured by set screws. It’s coated with black oxide for extra corrosion resistance and is commonly used in industrial equipment, conveyors, and agricultural machinery.
🟢 Shaft diameter: 1 inch
🟢 Black oxide plated insert for rust protection
🟢 Set screw locking mechanism
🟢 Housing type: F205
🟢 Bearing number: UC205-16
🟢 Basic dynamic load (Cr): 14 kN
🟢 Basic static load (Cor): 7.85 kN
🟢 Pack size: One assembled unit
Dimension Table (Inches):
| a (Base) | e (Bolt Ctr) | i | g | l | s | z | Bi | n (Bolt) |
|---|---|---|---|---|---|---|---|---|
| 3-3/4" | 2-3/4" | 5/8" | 9/16" | 1-1/16" | 15/32" | 1-13/32" | 1.34" | 9/16" |
