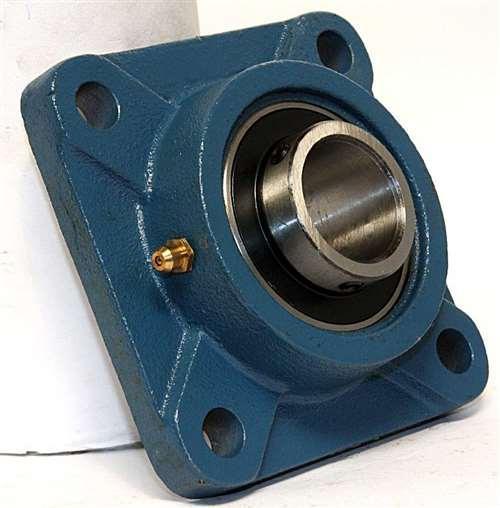

1" ID - UCF-205-16 + Square Flanged Cast Housing Mounted Bearing

UCF-205-16 Four Bolt Flange Unit
Set Screw Type - 1" Inch Inner Diameter - VXB Bearings

A strong, reliable solution for shaft mounting, the UCF-205-16 Four Bolt Flange Unit ensures stability and ease of installation in heavy-duty applications.

🟢 Item: UCF-205-16 Ball Bearing
🟢 Type: Four Bolt Flange Mounted Bearing
🟢 Inner Diameter (ID): 1" Inch
🟢 Bolt Size: 3/8" Inch
🟢 Shaft Diameter: 1" Inch
🟢 Basic Dynamic Load Rating (Cr): 14 KN
🟢 Basic Static Load Rating (Cor): 7.85 KN
🟢 Bearing Number: UC205-16
🟢 Housing Number: F205
🟢 Quantity: 1 Bearing
🟢 Brand: VXB Bearing

Dimensions (Inches):

• Center-to-Center Bolt Distance (a): 3-3/4"

• Bolt Hole Distance (e): 2-3/4"

• Bolt Hole Size (i): 5/8"

• Slot Width (g): 9/16"

• Total Height (l): 1-1/16"

• Bolt Slot Thickness (s): 15/32"

• Overall Width (z): 1-13/32"

• Bearing Width (Bi): 1.34"

• Bolt Hole Diameter (n): 9/16"
