10mm Slide Unit Ball Bushing Block Linear Motion

10mm Aluminum Linear Motion Slide Unit For Robot Arm Builds
✔️ Fits 10mm Shafts Aluminum Housing Low Friction And Easy Install

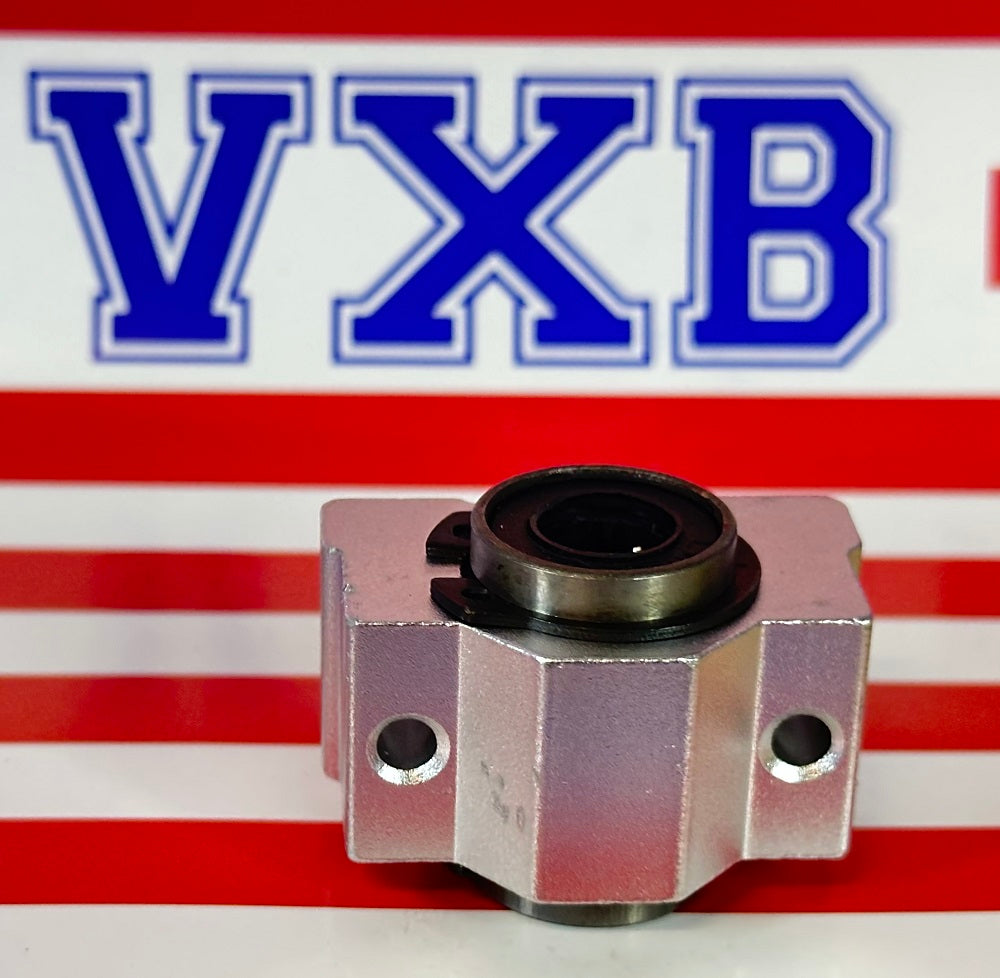

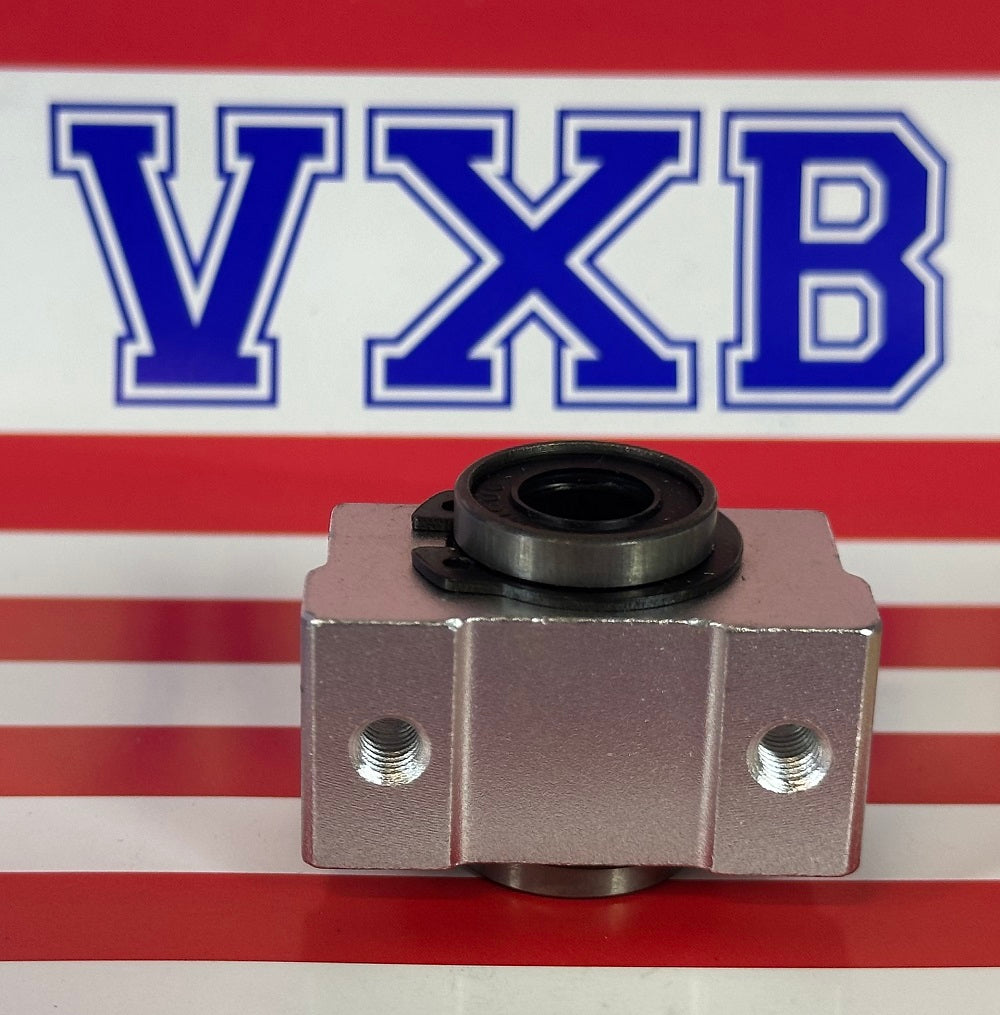

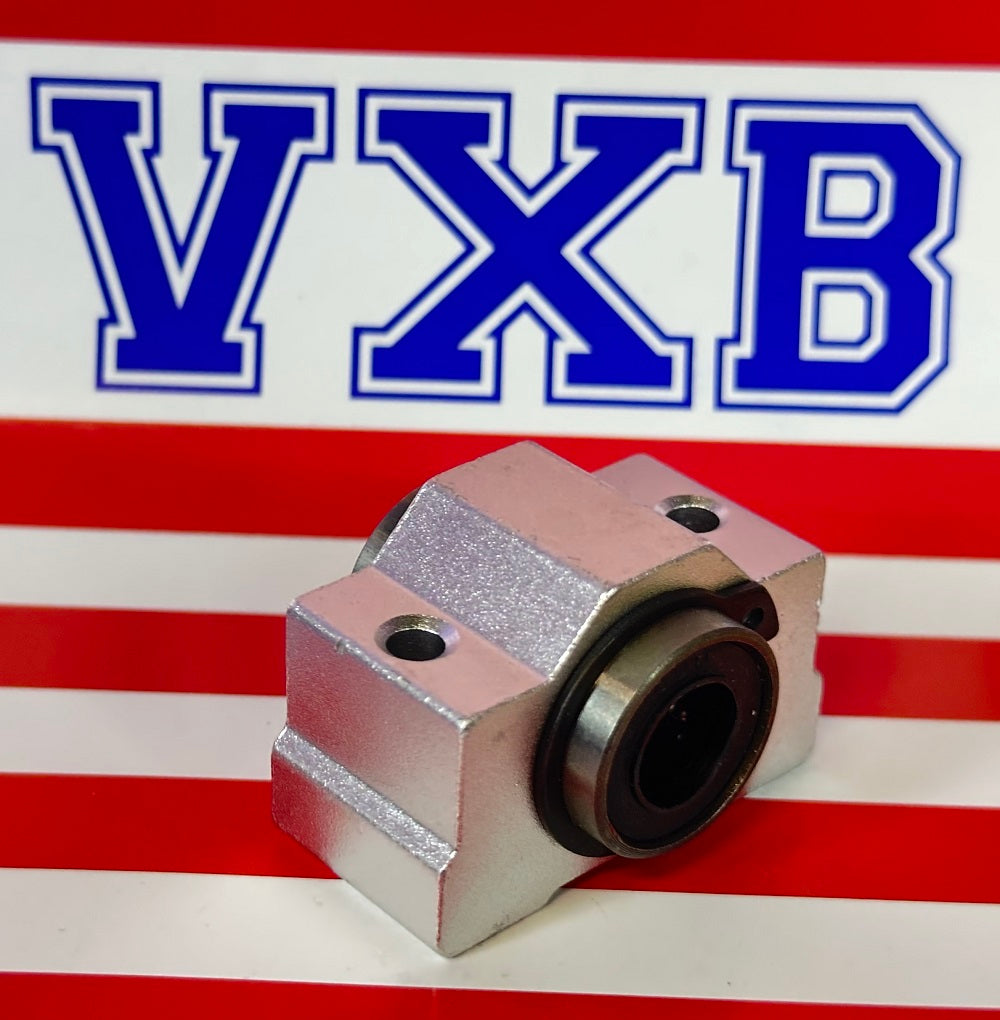

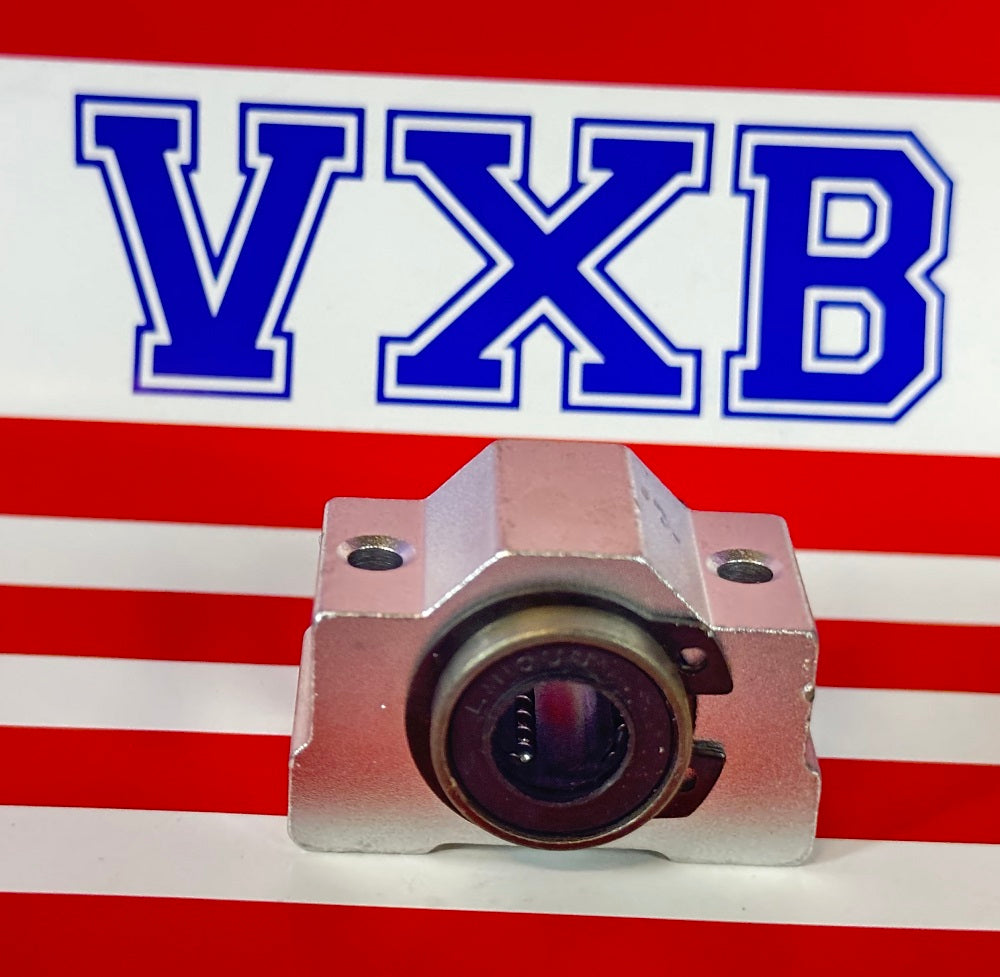

This aluminum slide unit features a sealed ball bushing pre-installed for smooth linear movement on 10mm shafts. It is often used in robotics, 3D printers, and DIY projects requiring reliable guided motion without excessive maintenance.

✅ Made from lightweight aluminum alloy shell for durability and strength
✅ Accepts standard 10mm round shafts with smooth inner diameter fit
✅ Includes sealed internal ball raceways for continuous linear motion support
✅ Supports dynamic loads up to 549 N while staying static load rated at 53 N

💡 What is a pillow block bearing used for in machine design? - Reduces friction to allow smooth sliding movement along fixed rails - Keeps rotating shafts stable while preventing sideways wobbling effects - Helps align mechanical parts accurately without complex mounting steps

✝️

Aluminum Pillow Block Slide unit with pre-installed 10mm ID Bearing To be used with 10mm Shafts

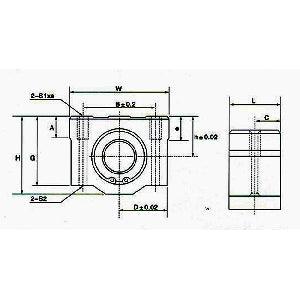

h	D	W	H	G	A	B	E	S1xe	S2	C	L	Dynamic Load(N)	Static Load (N)
13	20	40	26	21	8	28	6	M5x12	4.3	9.75	19.5	549	53
