Heavy Duty CNC Linear Motion Guide with Ballscrew ✨ 12" Stroke - Dual Axis CNC Router/Robot Module

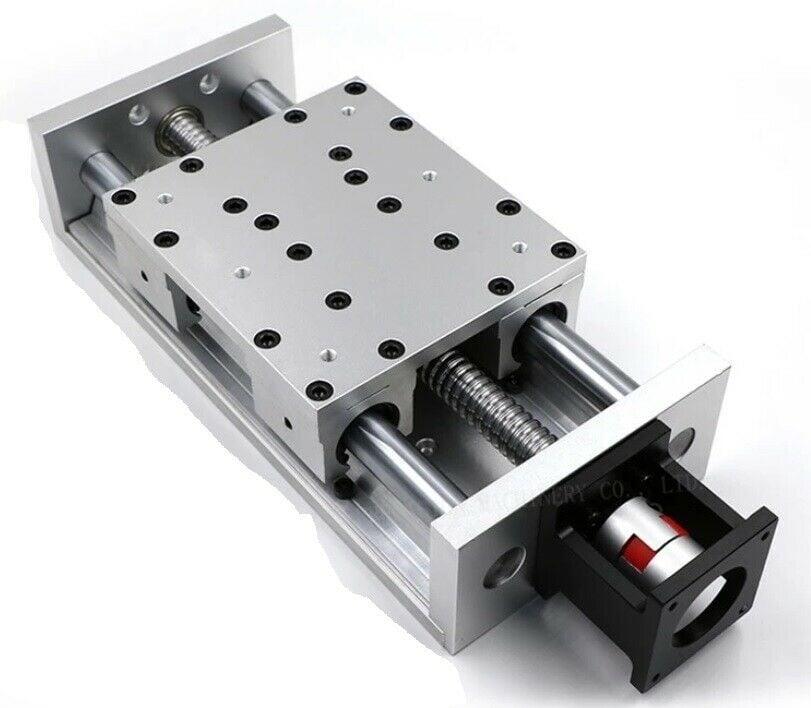

This heavy-duty linear motion module combines SBR20 guideways with a 2020 ball screw for precision-driven performance in CNC routers, robotic arms, and automation setups. Designed for 12-inch travel, it supports both stepper and servo motors and delivers smooth, accurate linear movement at high speeds.

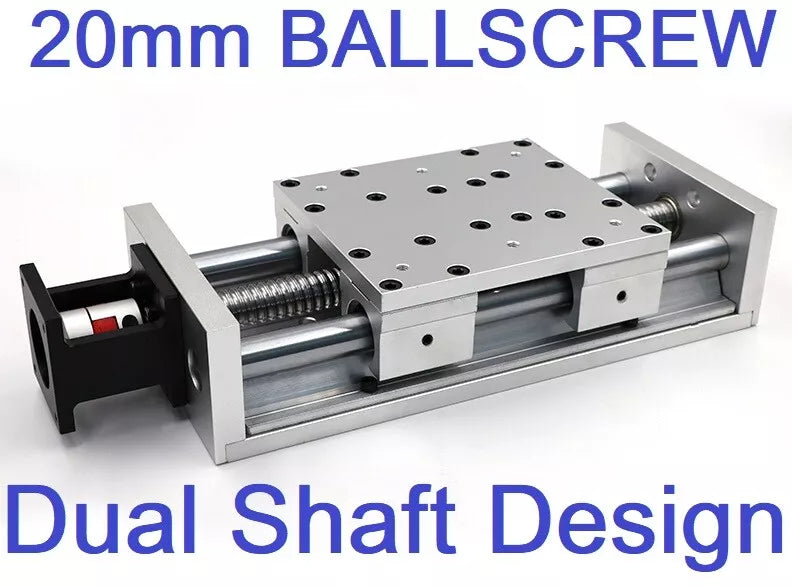

🟢 Stroke Length: 12 inches (approx. 300mm) 🟢 Type: Double-axis linear motion with integrated ball screw 🟢 Ball Screw Specs: 2020 model with 20mm lead 🟢 Guideways: SBR20 linear motion rails 🟢 Max Speed: Up to 1,000mm/sec 🟢 Accuracy: C7 grade for precision positioning 🟢 Motor Compatibility: ✨ 57 & 86 Stepper Motors ✨ 100W, 200W, and 400W Servo Motors 🟢 Design: Dual shaft for extra rigidity and stability
