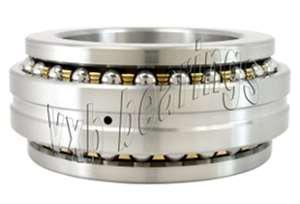

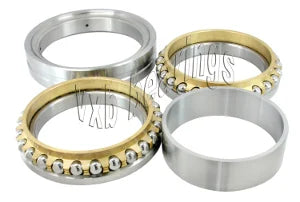

130TAD20 P5 2 direction Thrust Angular Contact Bearing 130x200x84

130mm Precision Double Thrust Angular Contact Ball Bearing
✔️ 130mm ID x 200mm OD x 84mm Wide ABEC-P5 Steel Construction

This industrial component accommodates axial loads effectively within complex mechanical assemblies such as spindles or transmission gearboxes where high rigidity is critical for peak performance stability.

✅ Dynamic load rating reaches 109,000 Newtons under operational force
✅ Static load capacity stands strong at 325,000 Newtons for resting states
✅ Limiting speed goes up to 2,800 RPM using oil lubrication methods
✅ Inner diameter measures exactly 130 millimeters for shaft fitment
✅ Overall width dimension totals 84 millimeters for mounting depth

💡 Why select precision thrust angular contact bearings for heavy machinery
This handy selection keeps your setup stable while running hard.
- High precision grinding minimizes heat generation during heavy cuts
- Robust steel components maintain alignment when pressure spikes
- Sealed construction options help keep dirt contamination away safely
