15mm Bearing UCP-202 + Pillow Block Cast Housing Mounted Bearing

Pillow block bearing set screw type 15mm inner diameter sealed unit
✔️ 15mm shaft size UC202 high center 12.8KN load rating 3/8 bolts

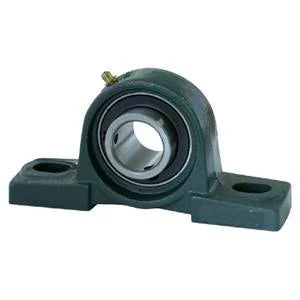

This UCP-202 pillow block bearing features a cast housing designed for robust industrial applications. It supports rotating shafts in machinery requiring stable linear movement with minimal friction.

✅ Inner diameter exactly fits 15mm shafts securely ✅ Basic dynamic load capacity rated at 12.8 kilonewtons ✅ Cast iron housing provides dust resistance and strength ✅ Hex head set screws allow easy maintenance and lock-in

💡 What factors determine the best pillow block bearing selection? Selecting the right unit depends on alignment needs and load types. Choose high-center height models for greater stability under torque. Match the bolt pattern to your mounting plate hole spacing. Consider environmental conditions that might require additional seals.

✝️

UCP-202 Pillow Block Bearing Set Screw Type High-Center Height 15mm Inner Diameter

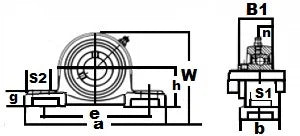

Dimensions (mm) h a e b S2 S1 g W B1 n 30.2 127 95.25 38.1 19.05 12.7 11.9 60.33 31 18.30
