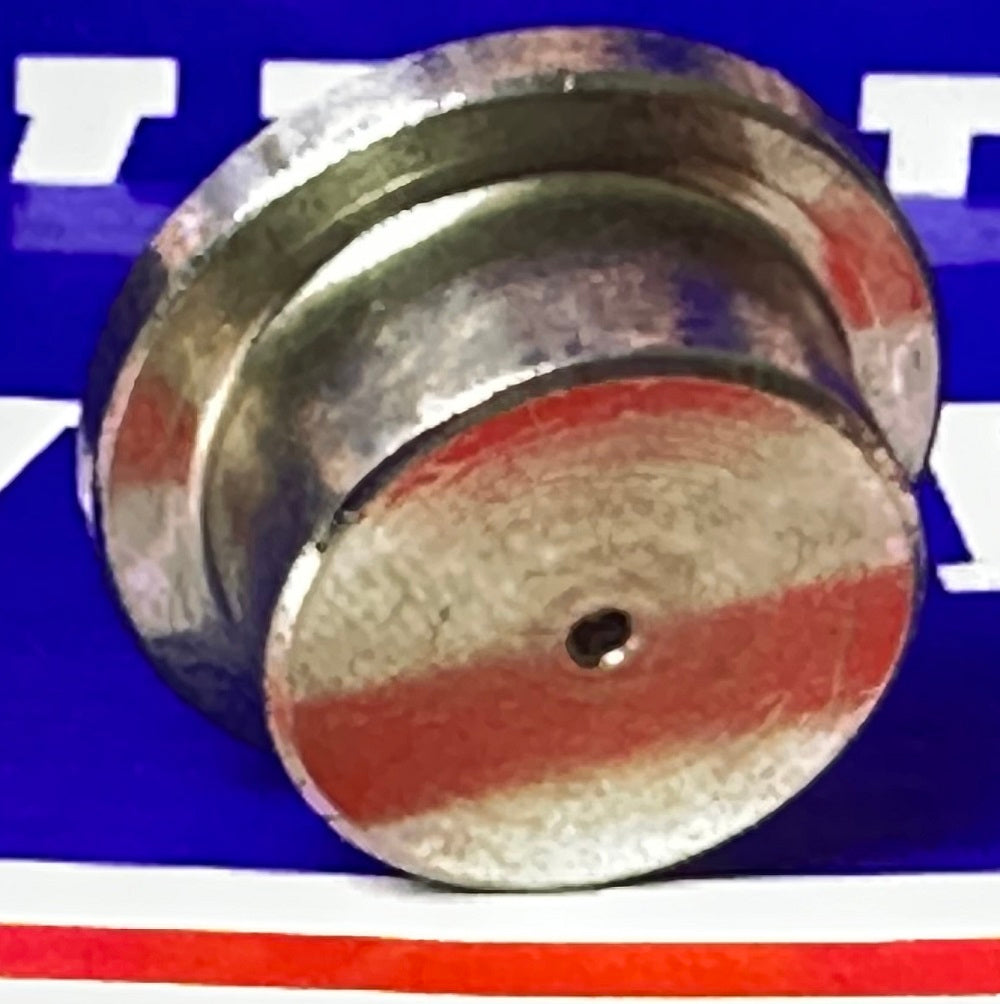

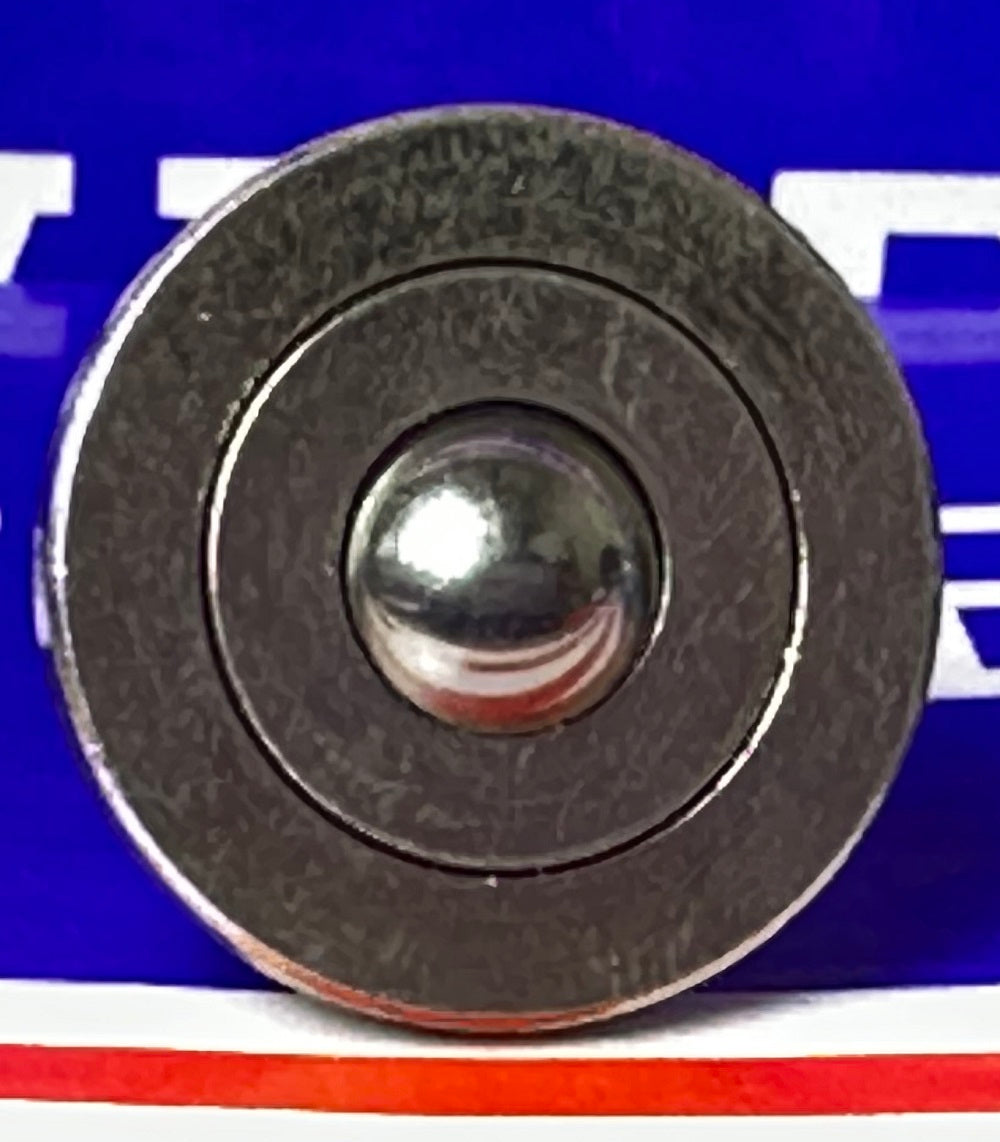

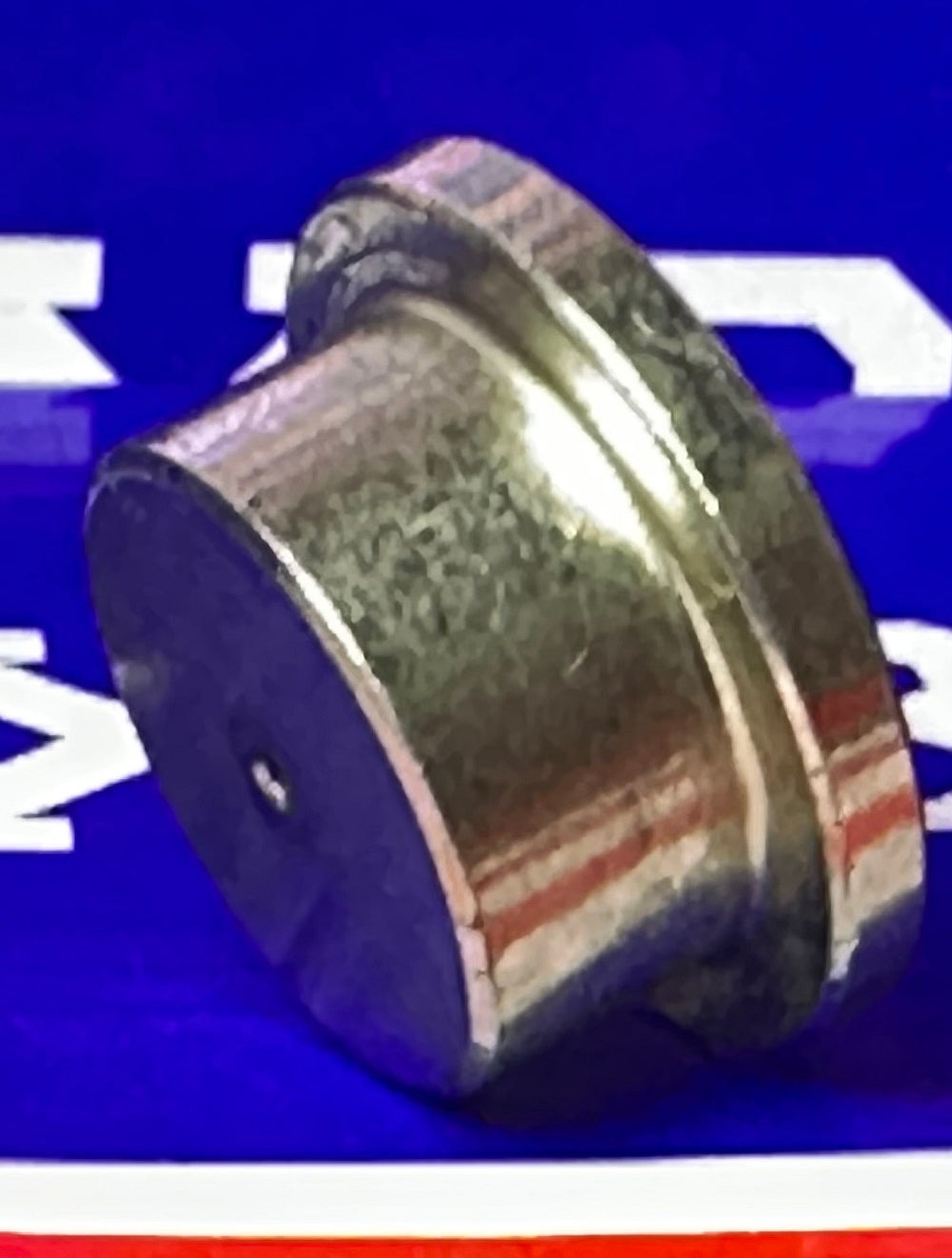

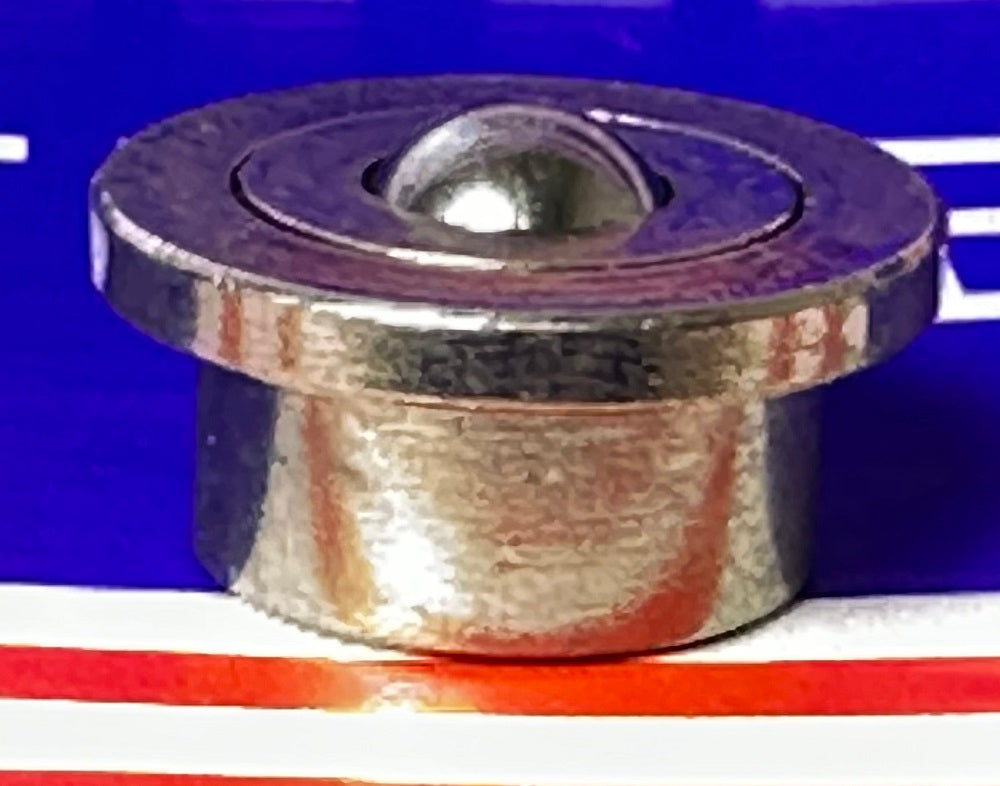

15mm Drop-in Ball Transfer Unit Surface Bearing - Machined Steel

15mm Drop-in Ball Transfer Unit - Heavy Duty Surface Bearing
Machined Steel Construction - Load Capacity: 17 lbs - VXB Bearing

Built for durability and smooth motion, this 15mm ball transfer unit is machined from solid steel and chrome-plated for corrosion resistance. Designed for easy drop-in mounting, it's ideal for material handling, workstations, and conveyor applications.

🟢 Item: 17 lbs Ball Unit
🟢 Type: Ball Transfer Unit
🟢 Ball Material: Chrome Plated
🟢 Cup & Housing: Solid Machined & Plated Steel
🟢 Load Capacity: 17 lbs
🟢 Breaking Load: 33 lbs
🟢 Quantity: 1 Bearing

📐 Metric Dimensions:

• Main Ball Diameter (d): 8mm

• Outer Diameter (D): 15mm

• Total Height (H): 11.1mm

• Collar Thickness (h1): 2mm

• Recess Depth (h2): 6.8mm

• Mounting Diameter (L): 20mm

• Weight: 0.01 lb

📏 Imperial Dimensions:

• d: 0.31"

• D: 0.59"

• H: 0.43"

• h1: 0.07"

• h2: 0.26"

• L: 0.78"
