16mm Bearing Twin Block Slide unit Open Linear Motion

16mm Twin Block Open Linear Motion Slide Unit
✨ Double Pillow Block - Fits 16mm Shafts - Pre-Installed Bushings

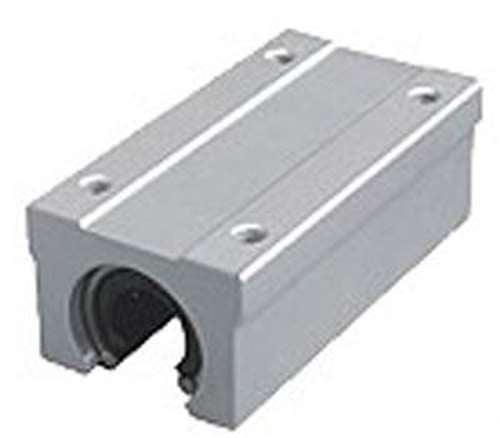

This twin block slide unit features two open 16mm linear ball bushings housed in a durable aluminum body. Designed for use with 16mm shafts, it allows for precise, smooth linear movement and is ideal for CNC, 3D printers, and motion systems requiring strong, low-friction guidance.

🟢 Type: Twin block open linear motion slide unit
🟢 Shaft compatibility: 16mm
🟢 Includes: 2 pre-installed 16mm open linear ball bushings
🟢 Housing: Anodized aluminum alloy for corrosion resistance
🟢 Design: Open type for use with supported rails
🟢 Quantity: 1 unit

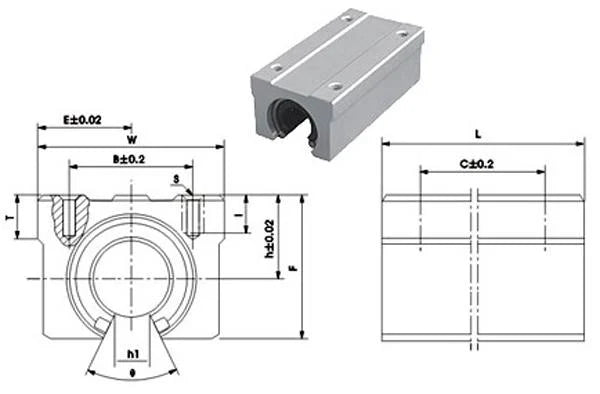

Main Dimensions (mm):

• Shaft diameter (h): 16mm

• Block height (h1): 20mm

• Block width (W): 45mm

• Total length (L): 85mm

• Hole spacing (C): 60mm

• Mounting hole diameter (S): M5

• Mounting hole spacing (B): 32mm

• Mounting offset (F): 33mm

• Thickness (T): 9mm

• Edge distance (e): 22.5mm

• Hole inset (I): 12mm
