16mm Long Square Flanged Bushing Linear Motion Bearing LMK16LUU LBK16LUU

Premium 16mm Square Flanged Linear Motion Bushing Kit Design
✔️ Inner 16mm Outer 28mm Length 70mm Dynamic 1230N Load Support

This component delivers smooth sliding motion for various industrial machines. It finds typical application within CNC routers printers and general automation setups requiring reliable linear travel paths. Heavy duty steel ball bearings support dynamic movement effectively with high load ratings ensuring stability.

✅ Dynamic load rating measures 1230 Newtons capacity strength ✅ Static load rating supports up to 2350 Newtons weight limit ✅ Includes square flange design for secure mounting stability ✅ Tolerances maintained precisely for exact alignment precision

💡 How do linear slide units improve movement precision?

These components reduce friction significantly during operation tasks.
- They guide shafts smoothly with minimal play or wobble effect.
- Proper selection enhances machine lifespan under heavy working loads.
- Sealed designs protect internal balls from dust debris accumulation | | ✝️

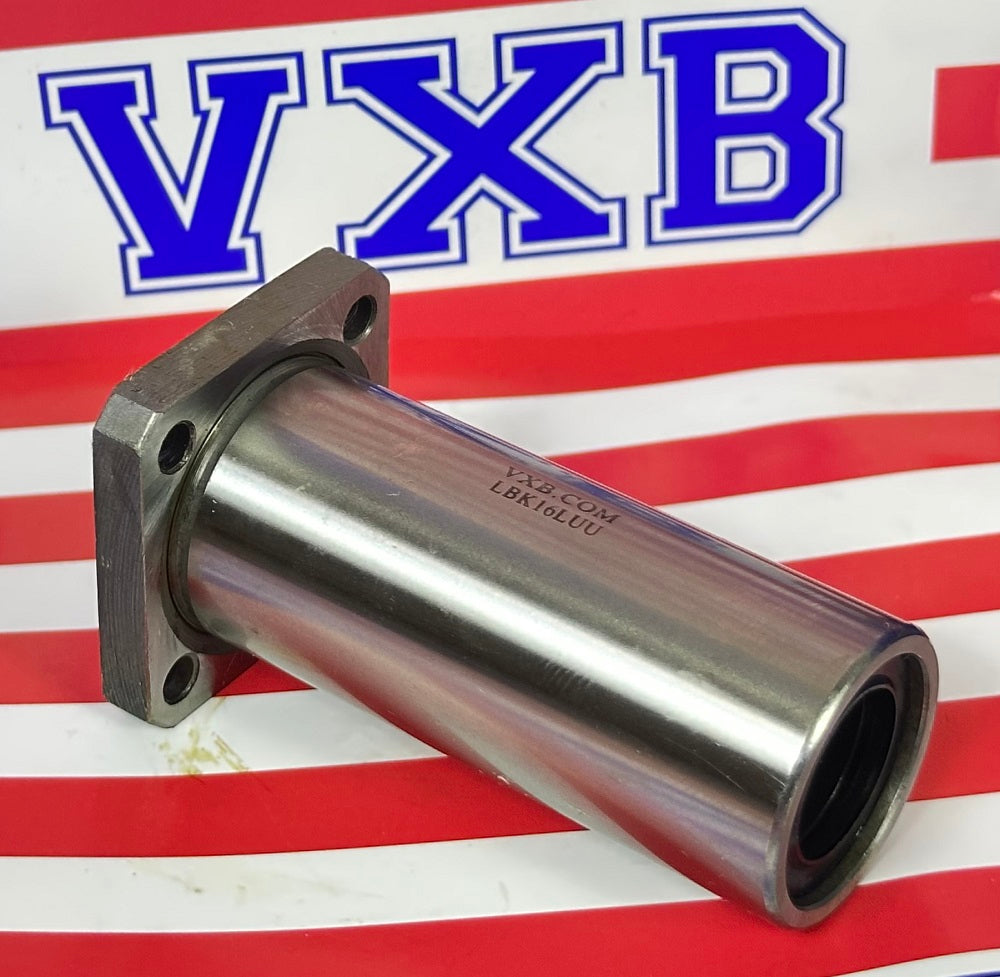

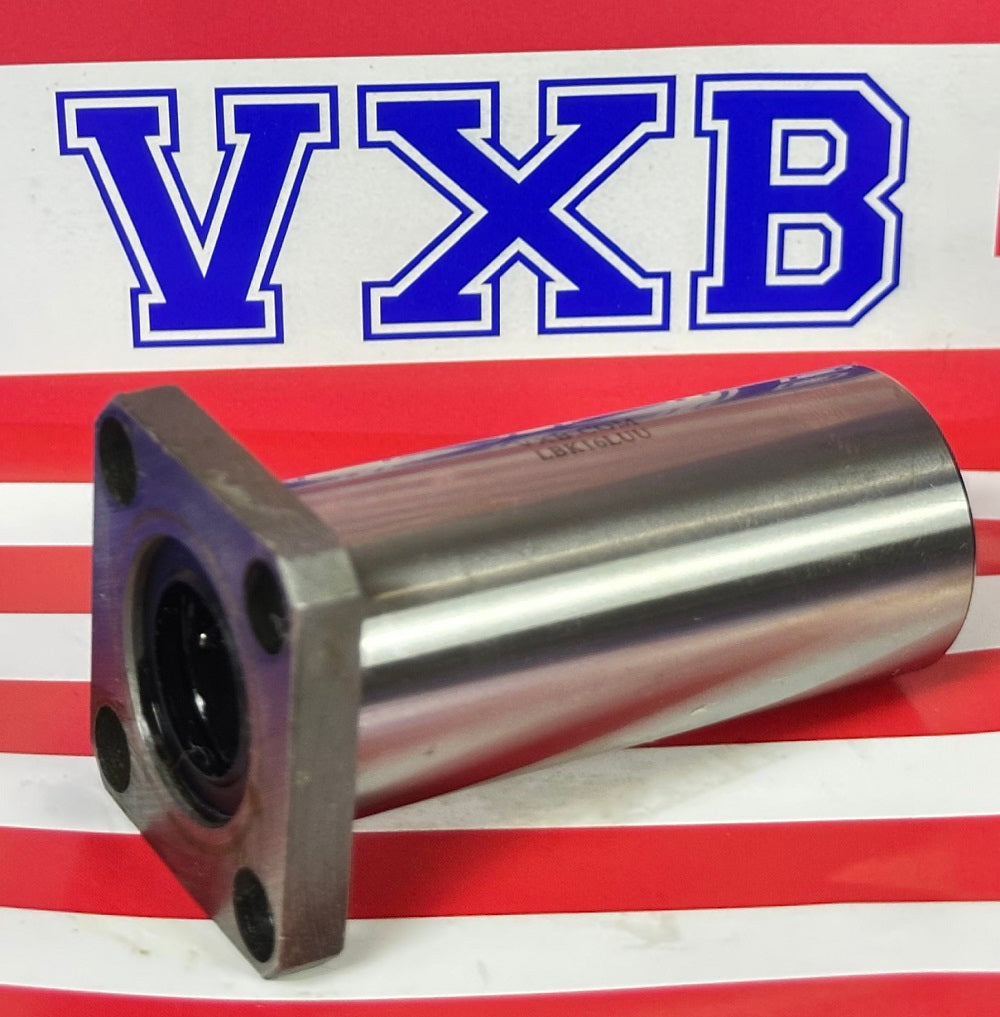

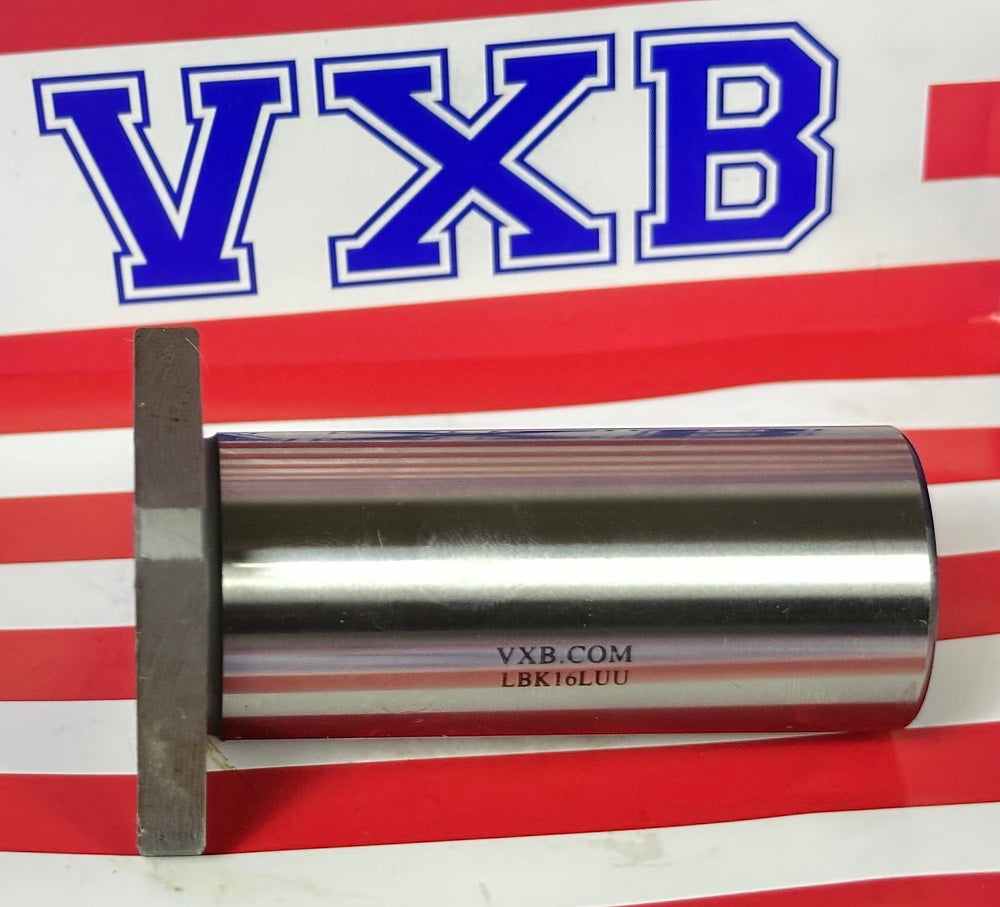

LBK16LUU Square Flanged Linear Motion Long Ball Bushing 16mm

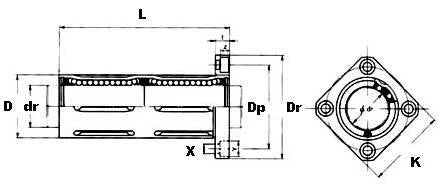

Major dimensions and tolerance (mm) dr D L Flange mm tolerance mm tolerance mm tolerance Df K t Dp X Y Z 16 0-10 28 0-13 70 300 48 37 6 38 4.5 7.5 4.1
