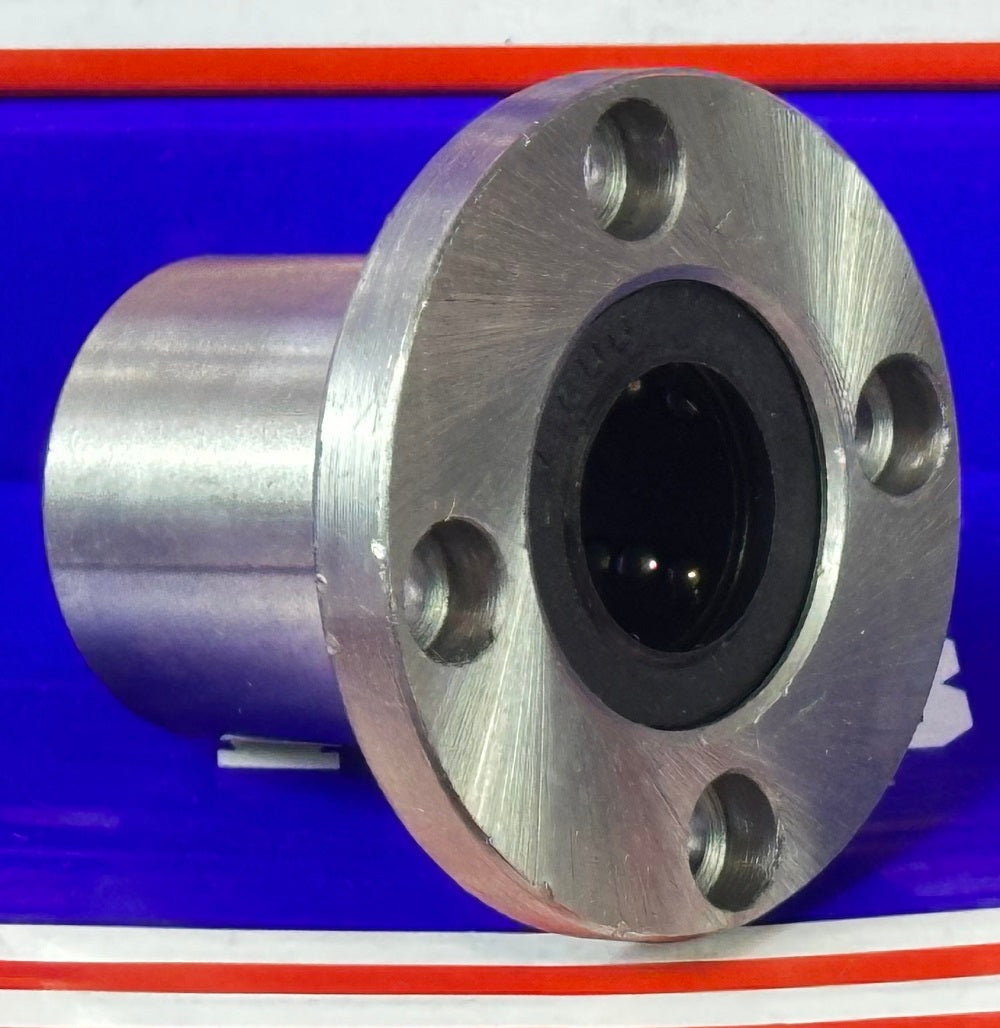

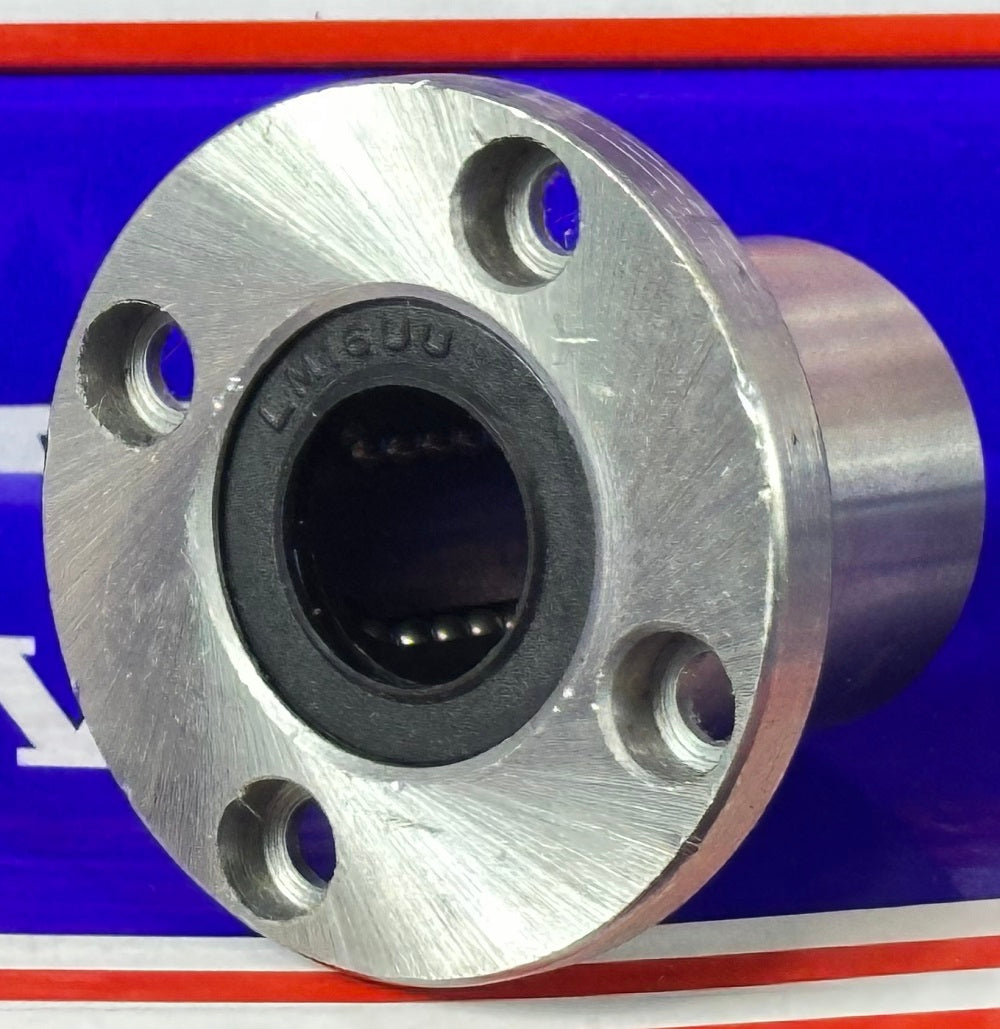

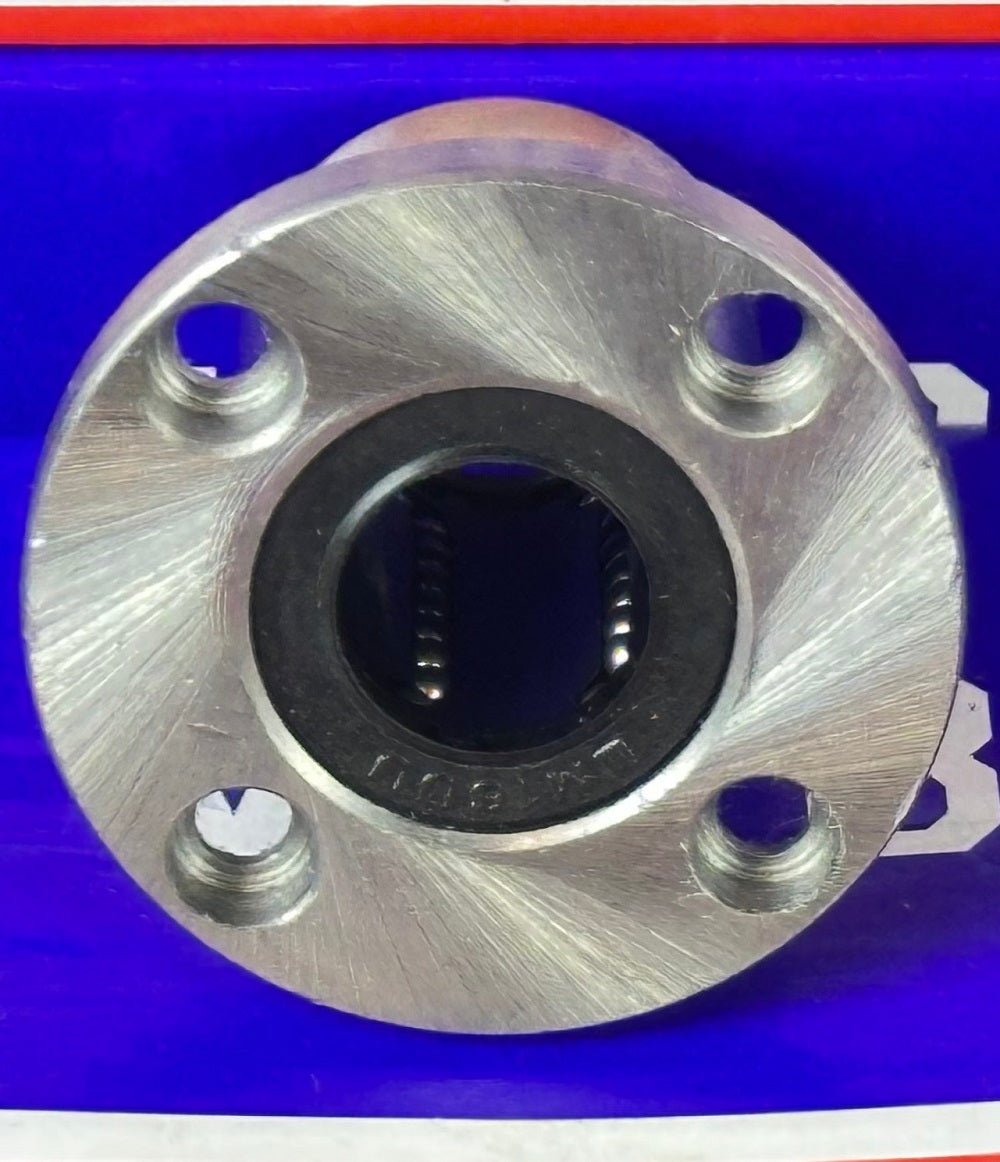

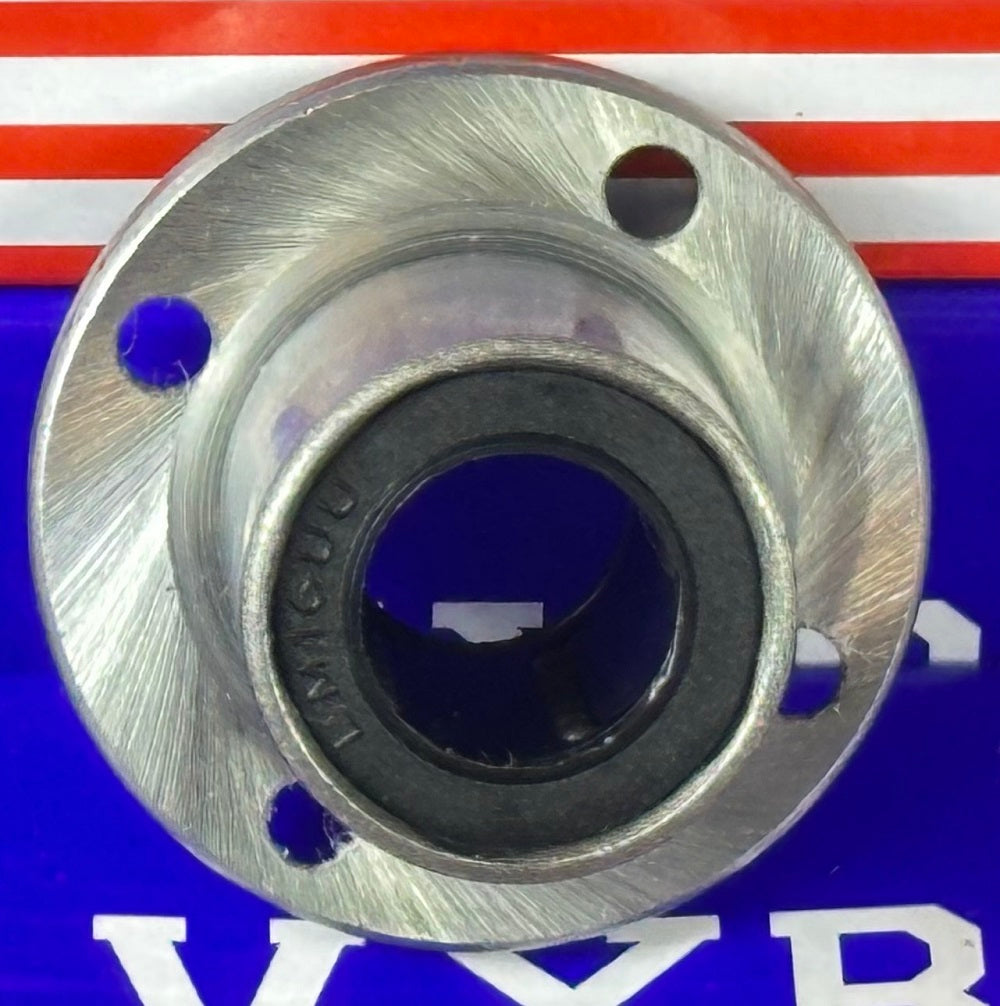

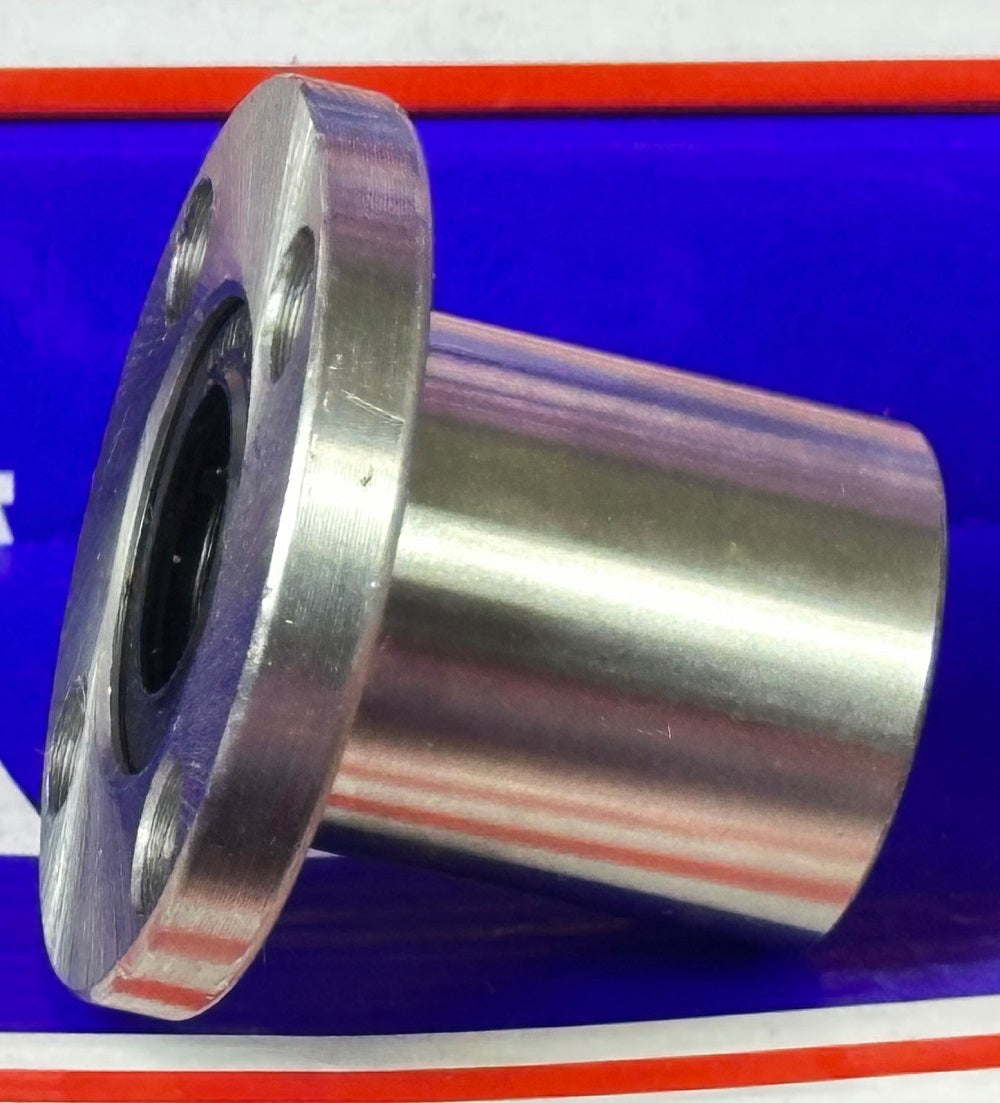

16mm Flanged Linear Motion Ball Bearing Bushing Unit
✔️ 16mm Bore 28mm OD 37mm Length Sealed Ball Bearing
This sealing unit guides smooth shaft movements in automation gear. Typically fitted into industrial machinery or custom rigs. Pack refers to one piece.
✅ Inner diameter measures exactly sixteen millimeters clear
✅ Outer width spans twenty-eight millimeters across the frame
✅ Overall structural length reaches thirty-seven millimeters total
| Diameter |
Width |
Length |
| 16mm |
28mm |
37mm |
💡 Why choose flanged bearings for precision equipment?
Standard shaft guides work best with these units.
- Low vibration reduces machine noise during operation
- Strong flange locks down firmly to mount plates
✝️
Round Flanged Linear Motion
Ball Bushings 16mm |
Specs |

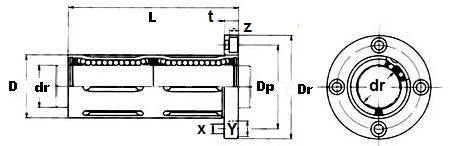

Main Dimensions and Tolerances |
Basic Load Rating |
dr |
D |
L |
flange |
dynamic
(CN)
|
static
(CoN) |
mm |
tolerances |
mm |
tolerances |
mm |
tolerances |
Df
mm |
K
mm |
t
mm |
Dp
mm |
X
mm |
Y
mm |
Z
mm |
Flanged Round |
16 |
0
-9 |
28 |
0
-16 |
37 |
300 |
48 |
37 |
6 |
38 |
4.5 |
7.5 |
4.1 |
774 |
1180 |
