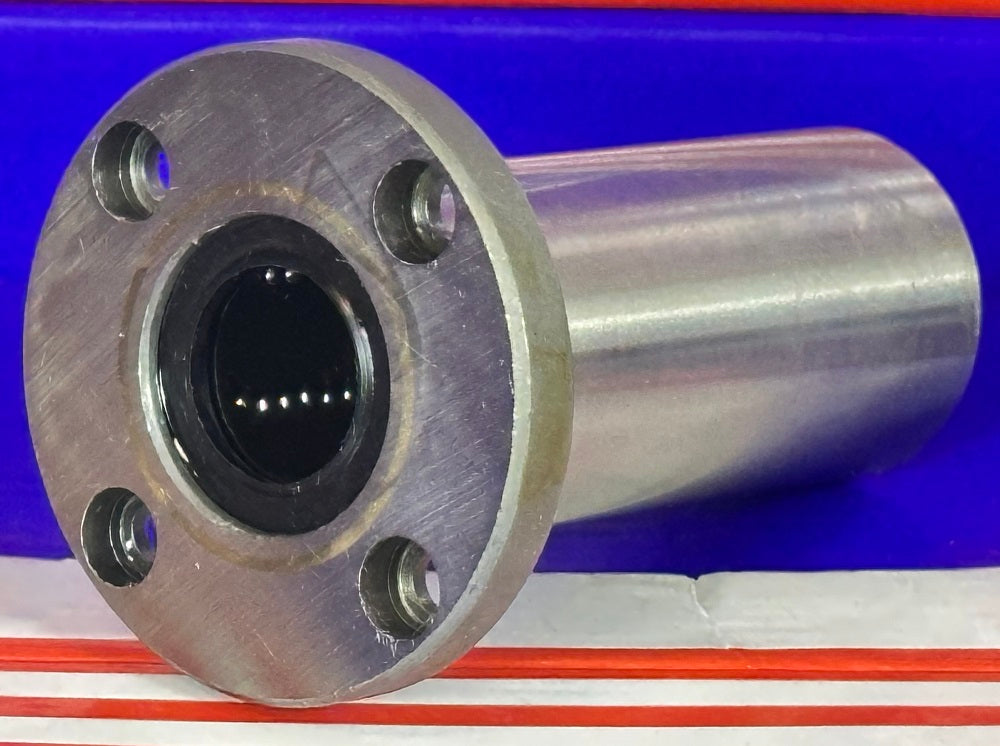

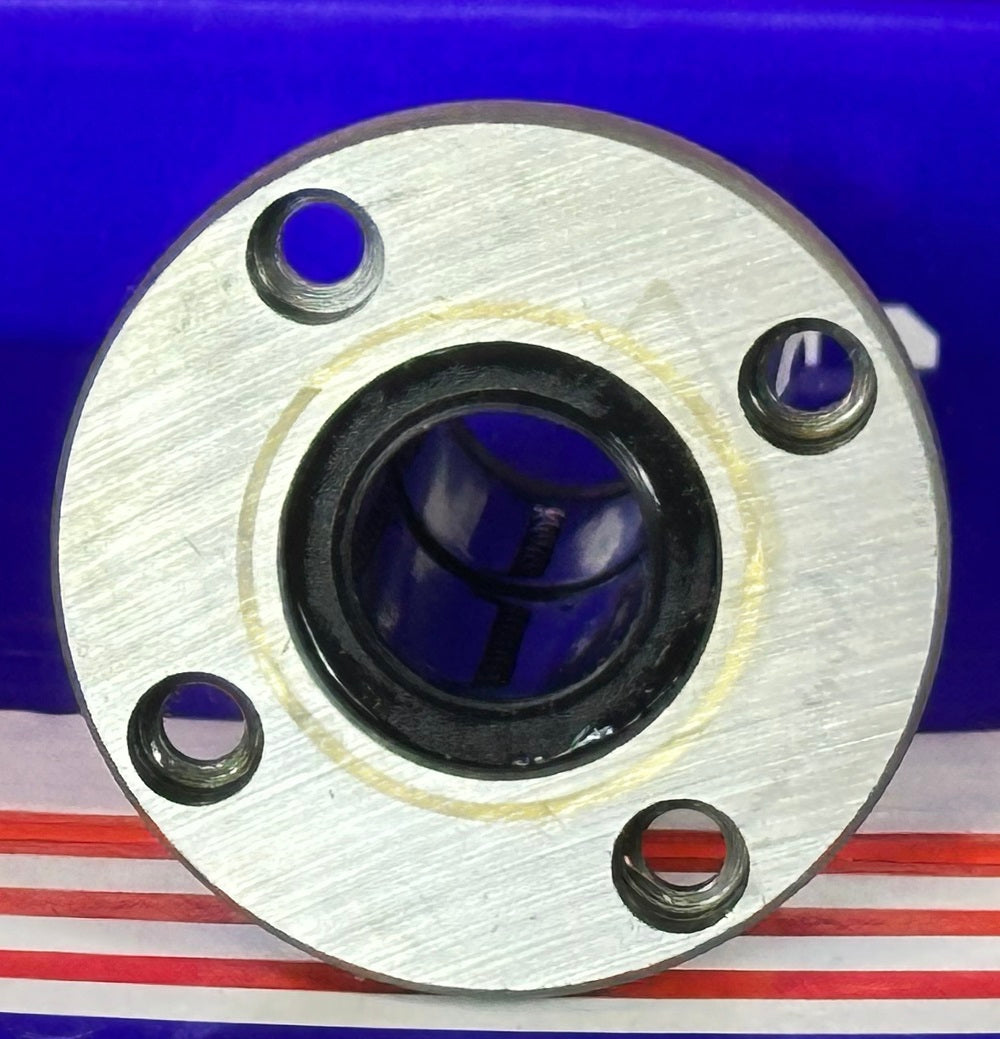

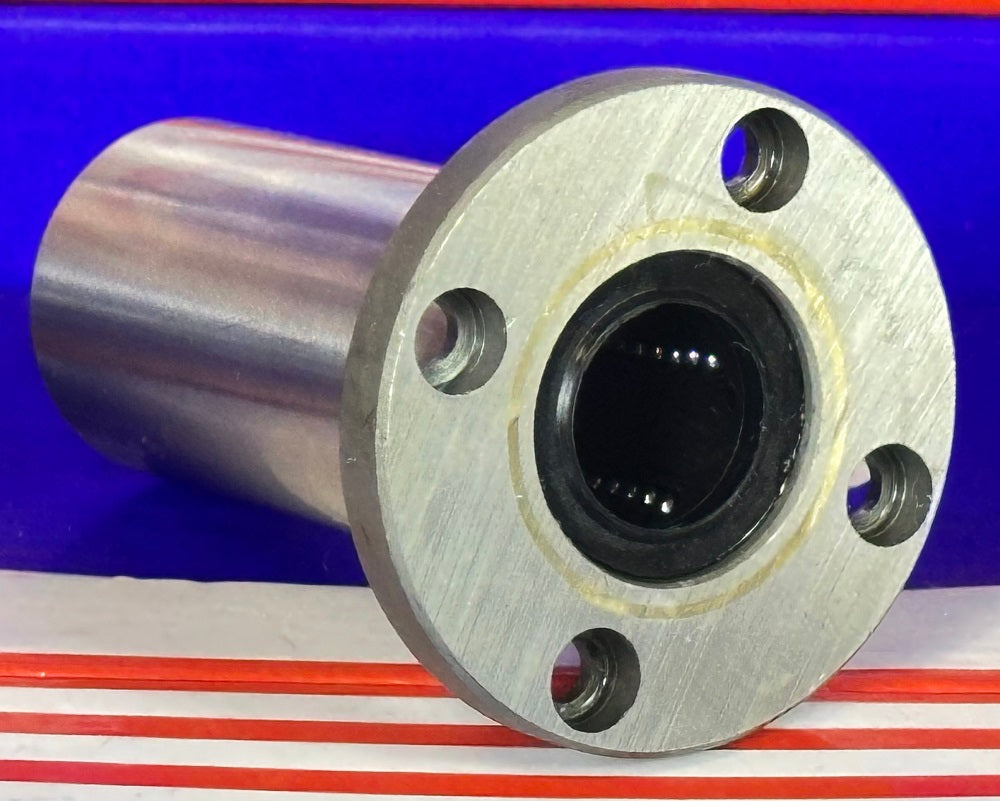

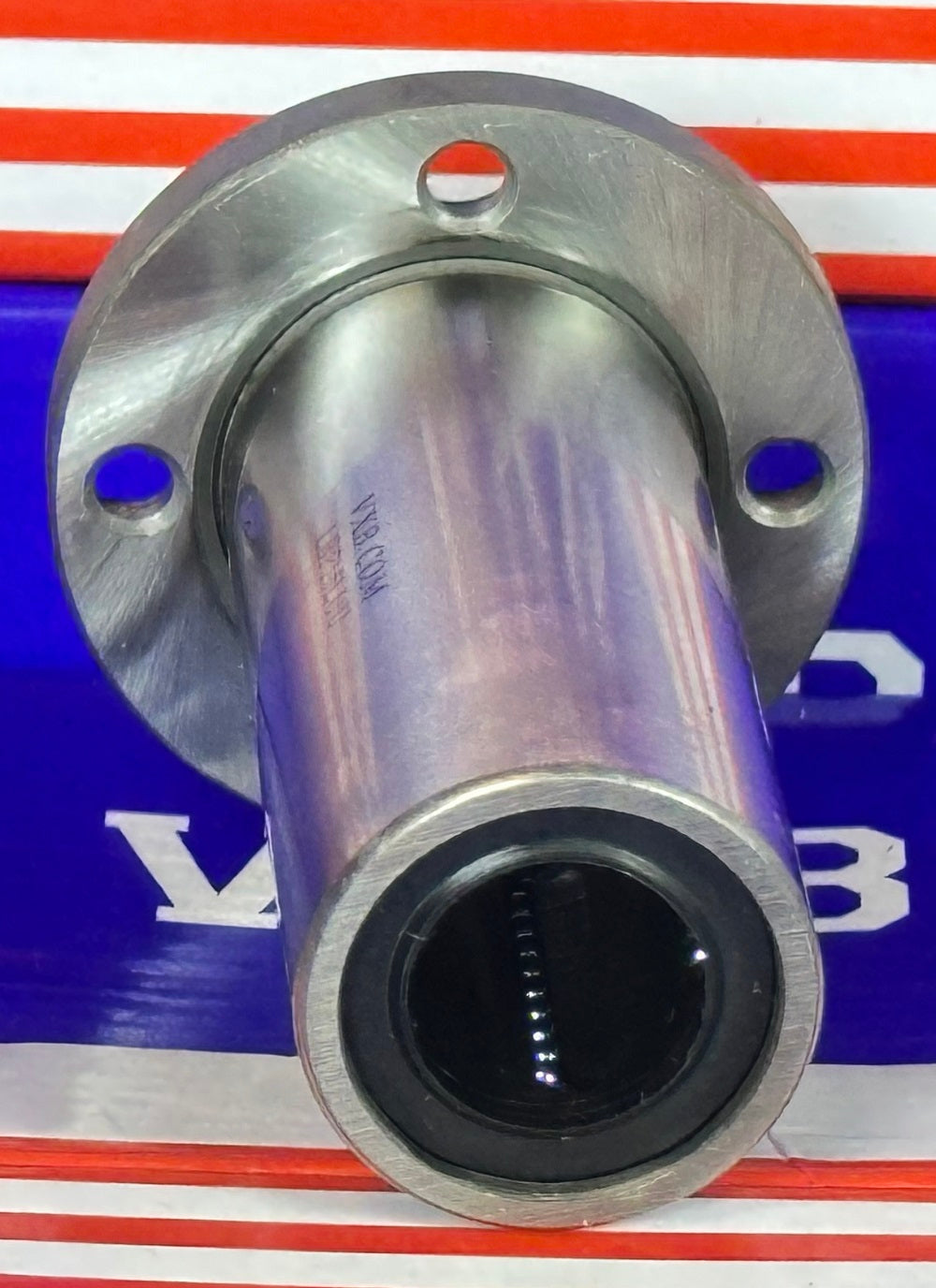

16mm Round Flanged Long Bushing Linear Motion LBF16LUU

16mm Flanged Linear Ball Bushing Guide For Heavy Shop Work
✔️ 16mm Hole 28mm O.D. 70mm Long Sealed Ball Linear Bushing Unit

This 16mm round flanged linear motion ball bushing works great on CNC machines and smooth shaft setups. You get one sealed unit here designed for high load paths without wobble during sliding movement tasks. Perfect for hobbyists building 3D printers or industrial engineers needing reliable guidance rails. The flange design allows for straightforward mounting on flat surfaces to prevent rotation under pressure. Sealed rubber lips keep debris out and oil in to maintain smooth travel distances.

✅ Inner Diameter measures exactly 16mm for precise fitment standards
✅ Max dynamic load rating up to 1230N supports heavy duty work loads
✅ Outer diameter stands at 28mm to secure stability inside mounts
✅ Total length spans 70mm providing extended guide surface coverage

💡 Why Choose A Pillow Block Bearing For Your Industrial Setup? These components support rotating shafts within machinery frames easily. - Ensures consistent low friction for higher cycle rates compared to plain bearings every time - Compatible with various steel and aluminum housing types for flexible installation options - Reduces equipment wear significantly due to the superior precision of ball internal tracks - Improves overall machine accuracy and longevity with minimal vibration interference effects

✝️

LBF16LUU Round Flanged Linear Motion Long Ball Bushing 16mm

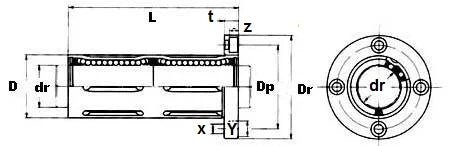

Major dimensions and tolerance (mm) dr D L Flange mm tolerance mm tolerance mm tolerance Df K t Dp X Y Z 16 0-10 28 0-16 70 300 48 37 6 38 4.5 7.5 4.1
