2 1/16" Bearing HCF211-33 4-Bolt Flanged Housing Mounted Bearing - eccentric collar

2 1/16" Bearing HCF211-33 4-Bolt Flanged Housing Mounted Bearing - eccentric collar

$86.39 USD
$79.99 USD $86.39 USD
Sale Sold out
Shipping calculated at checkout.

HCF211-33 Four-Bolt Flange Bearing Unit
✨ 2 1/16" ID with Eccentric Collar & Set Screws

This HCF211-33 flange unit features a 2 1/16" inner diameter insert bearing with an eccentric locking collar. It's designed for easy installation and secure shaft locking in conveyor systems, heavy equipment, and agricultural machinery.

🟢 Bore size: 2 1/16" inch
🟢 Mount: Four-bolt flange housing
🟢 Lock type: Eccentric collar with set screws
🟢 Bolt size: 5/8" inch
🟢 Dynamic load rating (Cr): 32,695 N
🟢 Static load rating (Cor): 18,460 N
🟢 Bearing number: HC11-33
🟢 Housing number: F211
🟢 Quantity: 1 assembled unit

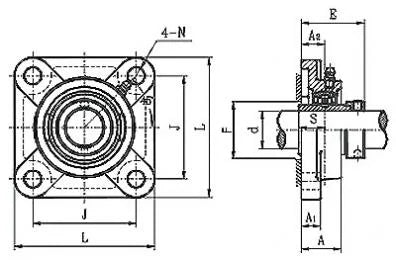

Dimensions (inch):

Feature Size
d 2 1/16"
L 6 3/8"
J 5 1/8"
A2 1"
A1 23/32"
A 1 11/16"
E 2 23/32"
N 23/32"
S 1 3/32"
F min. 2 13/16"
