2 1/2" Bearing UCP213-40 + Pillow Block Cast Housing Mounted Bearing

2 1/2 Inch Pillow Block UCP213-40 Bearing Cast Sealed Unit
✔️ Inner Dia 2 1/2 Inch UC213-40 Set Screw High Center

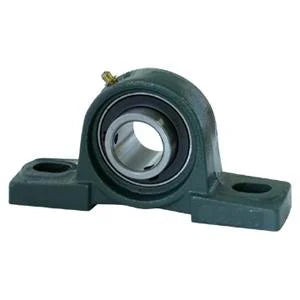

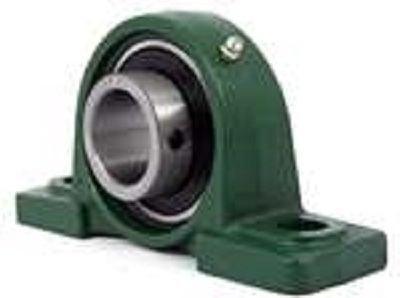

This mounted bearing unit features a cast iron housing designed to support rotating shafts in industrial machinery and conveyor systems. It secures the inner ring while allowing external bolts to hold the housing firmly in place. The unit is handy for maintaining alignment between the drive mechanism and the frame for smoother operation. ✅ Inner diameter measures 2 1/2 inches for precise shaft fitment ✅ Mounting bolt size is 3/4 inch for secure attachment stability ✅ Basic dynamic load capacity reaches 57,200 Newtons under stress ✅ Includes set screw type locking mechanism for reliable operation

💡 Question: What role do pillow block bearings play in rotary motion systems Answer: They provide stable radial support while reducing friction during operation.-These units maintain alignment between the shaft and frame for better performance-Seals and housings protect against dirt ingress common in factory environments-Made for high center heights to handle demanding workloads easily

✝️

UCP213-40 Pillow Block Bearing Set Screw Type High-Center Height 2 1/2" Inch Inner Diameter

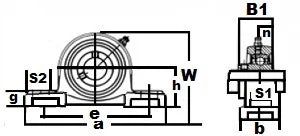

Dimensions (Inches) h a e b S2 S1 g W B1 n 3" 10-7/16" 8" 2-3/4" 63/64" 1-3/32" 1-1/16" 5-29/32" 2-9/16" 1"
