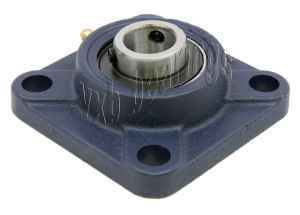

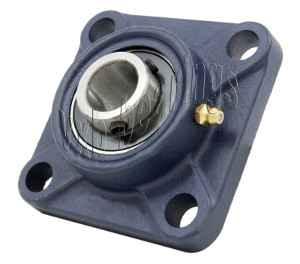

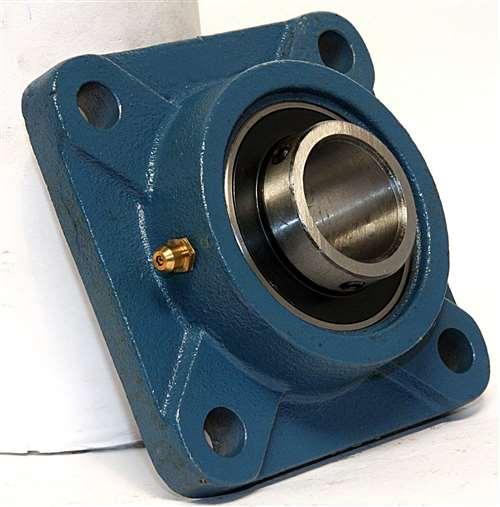

2 1/4" Bearing UCF-212-36 + Square Flanged Cast Housing Mounted Bearing

2 1/4" Bearing UCF-212-36 + Square Flanged Cast Housing Mounted Bearing

$129.60 USD
$120.00 USD $129.60 USD
Sale Sold out
Shipping calculated at checkout.
UCF-212-36 Four Bolt Flange Unit
Set Screw Type
2 1/4" inch Inner Diameter

UCF-212-36 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 2 1/4" inch.

  • UCF-212-36 Ball Bearing
  • Flange Mounted Bearing
  • Bolt Size: 3/8" inch
  • Basic Load Dynamic (Cr): 52,400 N
  • Basic Load Static(Cor): 36,200 N
  • Bearing No: UC212-36
  • Housing No: F212
  • Quantity: 1 Bearing

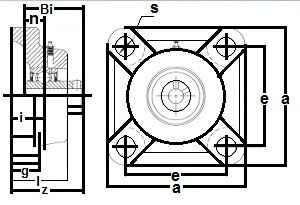

Dimensions (Inches)
a e i g l s z Bi n
6-7/8" 5-5/8" 1-9/16" 25/32" 1-7/8" 3/4" 2-23/32" 2-9/16" 1"
