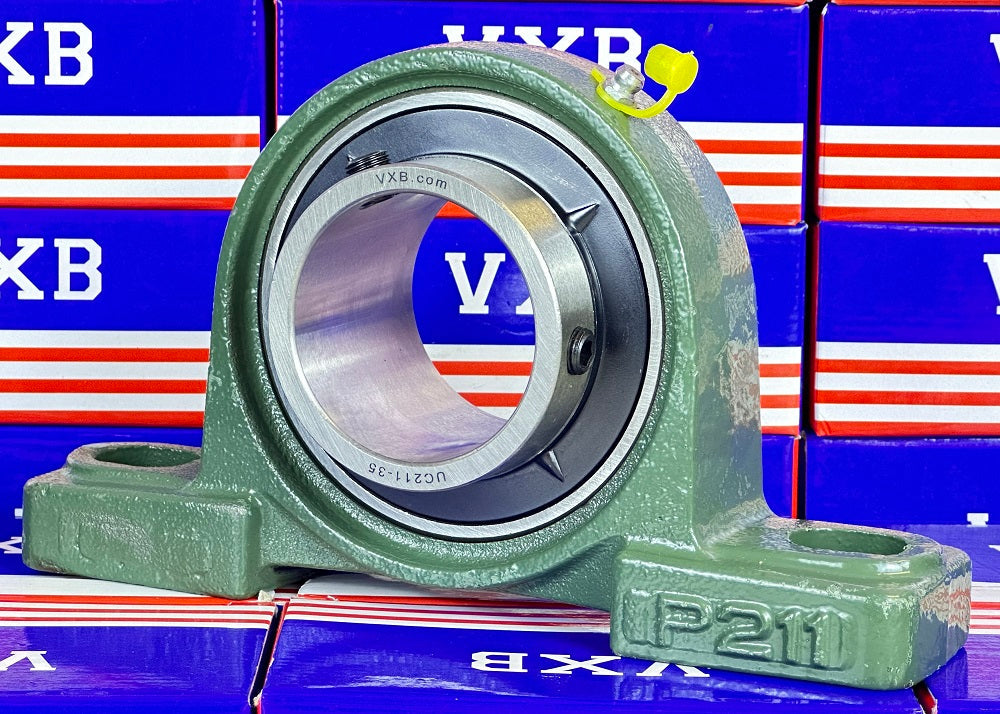

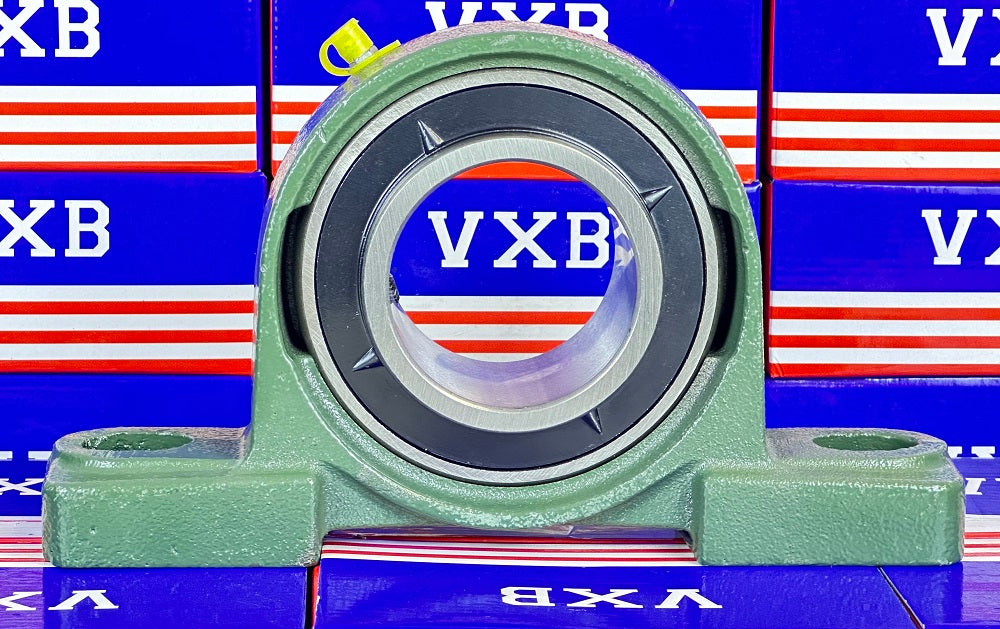

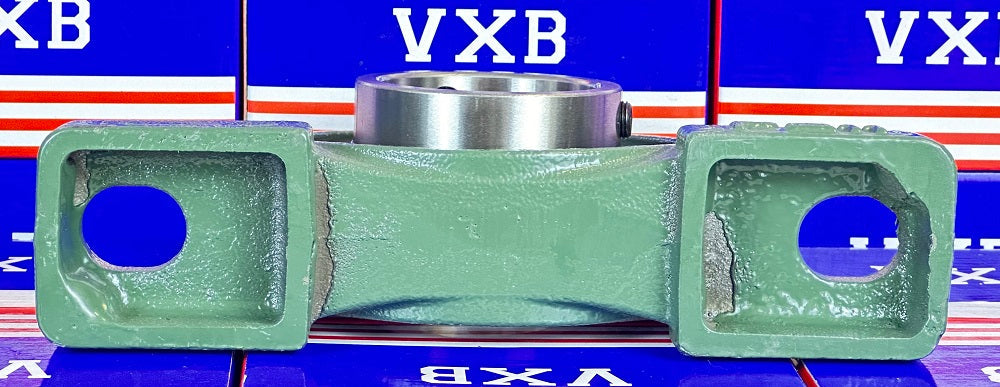

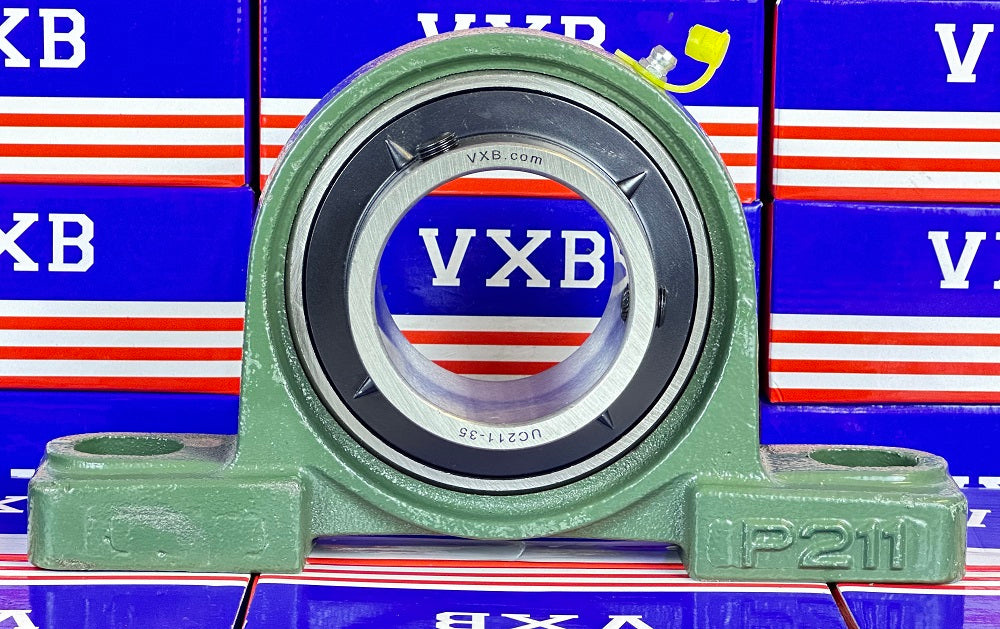

2 3/16" Bearing UCP211-35 + Pillow Block Housing Mounted Bearing

UCP211-35 Single Pack Pillow Block Bearing Set Screw Mount
✔️ 2 3/16" Inner Diameter Bearing Set Screw 5/8 Bolt Holes High Load

Workers typically install this single pack unit on power transmission systems requiring reliable support. This mounted bearing assembly supports rotating shafts efficiently.

✅ Inner Diameter measures 2 3/16 Inch across the hole opening size
✅ Dynamic Load Rating equals 43400 Newton Force capacity under stress
✅ Mounting bolts fit a 5/8 Inch standard hardware piece for bracket fixings

💡 How does pillow block height impact shaft alignment stability?
A high center housing design provides necessary distance from the floor.
- Higher center housing allows clearance for thicker belts above shaft axis
- Reduces interference risk when installing heavy duty pulley wheels nearby
- Maintains concentricity better despite uneven mechanical loads during operation

✝️

UCP211-35 Pillow Block Bearing Set Screw Type High-Center Height 2 3/16" Inch Inner Diameter

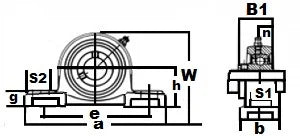

Dimensions (Inches) h a e b S1 S2 g W B1 n 2-1/2" 8-5/8" 6-23/32" 2-3/8" 7/8" 25/32" 3/4" 4-29/32" 2-3/16" 7/8"
