2 7/16 Inch 4-Bolt Flanged Ball Bearing UC212-39 Unit
✔️ 2 7/16 Inch Set Screw 4-Bolt Flange 52kN Dyn Load 3/8 Bolt
This 4-bolt flange unit provides reliable support for rotating shafts in industrial machinery. It mounts securely to frames via four holes for stability.
✅ Inner Diameter measures 2 7/16 inch accurately
✅ Basic Load Dynamic reaches 52,400 Newtons strength
✅ Compatible with 3/8 inch mounting bolt sizes
✅ Set screw type holds inner ring firmly
✅ Pack contains one single bearing unit
| Overall A |
6-7/8" |
| Width E |
5-5/8" |
| Hinge Hole Z |
2-23/32" |
💡 How does a pillow block flange bearing differ from a pedestal?
- Pillow blocks mount flat to surfaces for tight setups
- Pedestals lift the shaft higher off ground level clearly
- Both rotate shafts similarly with low friction operation
- Flange units offer faster installation on machine panels
✝️

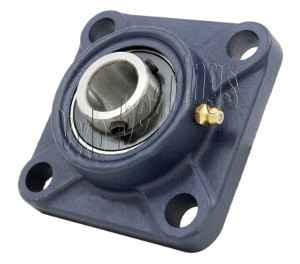

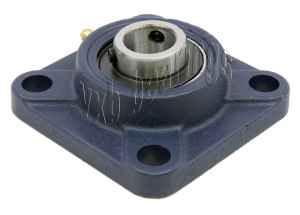

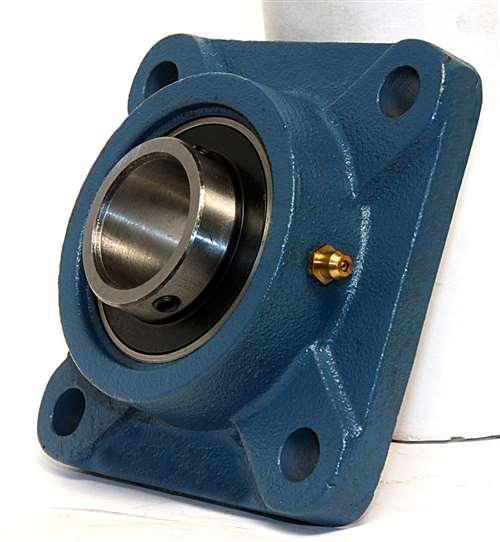

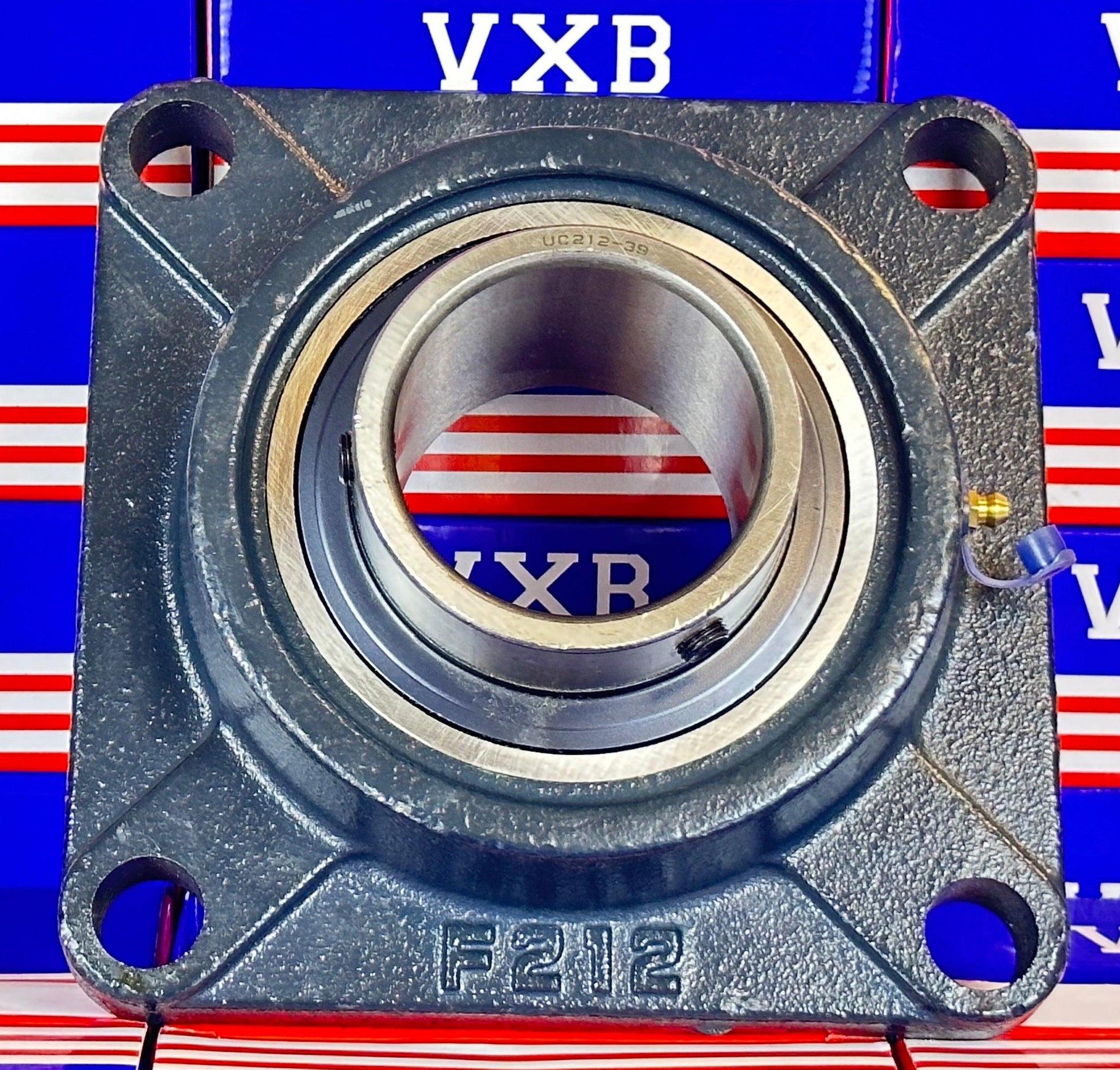

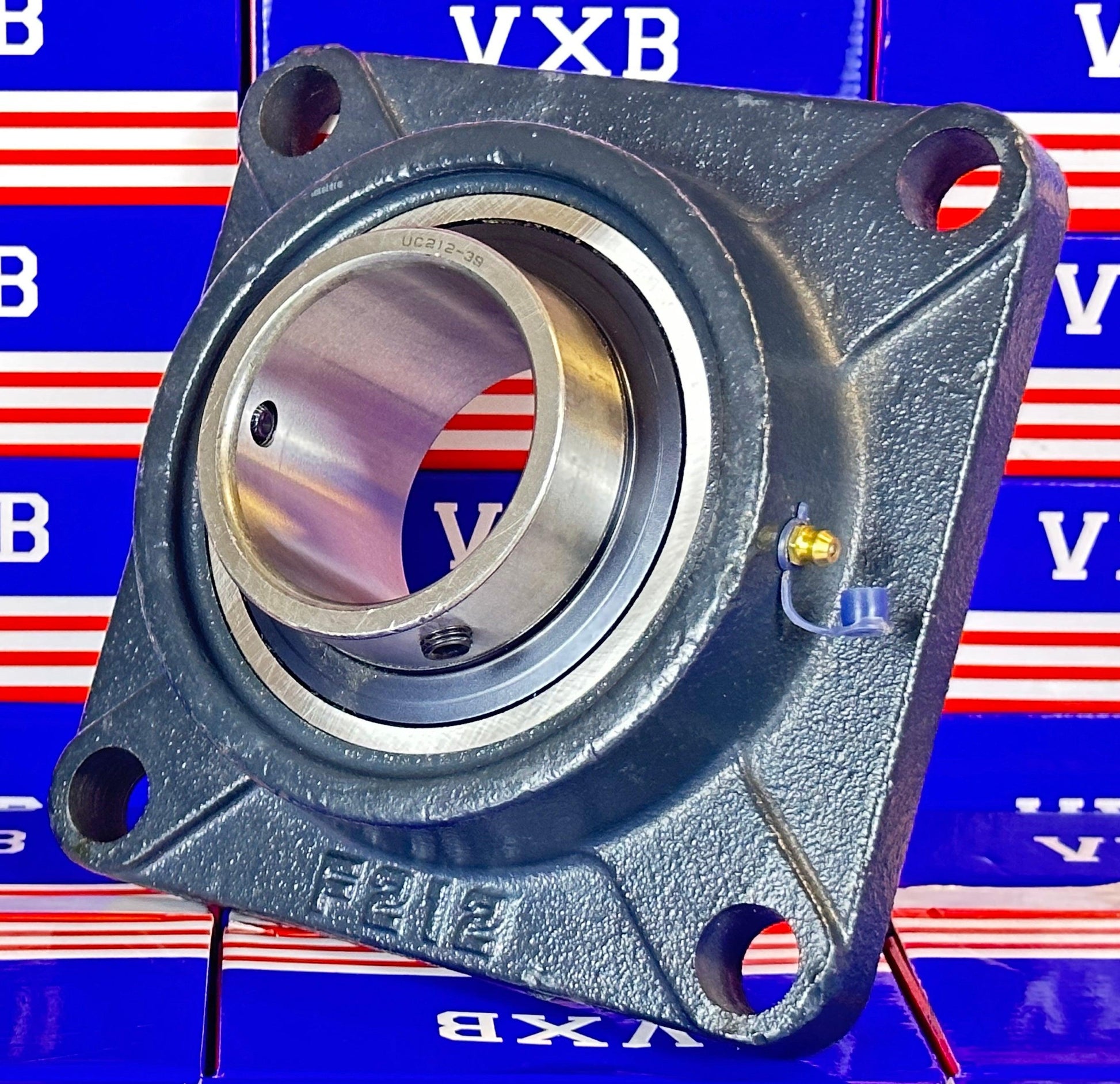

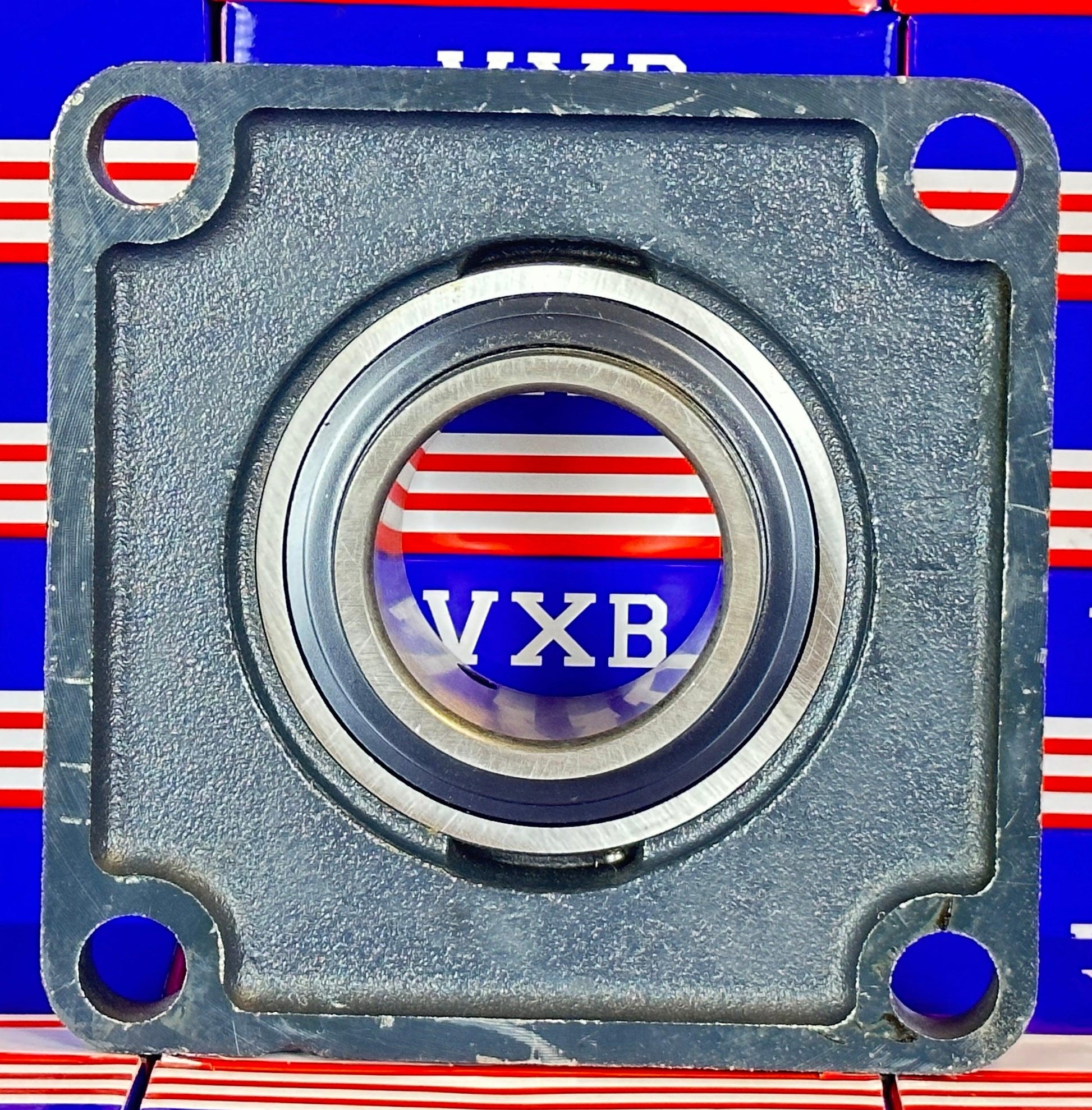

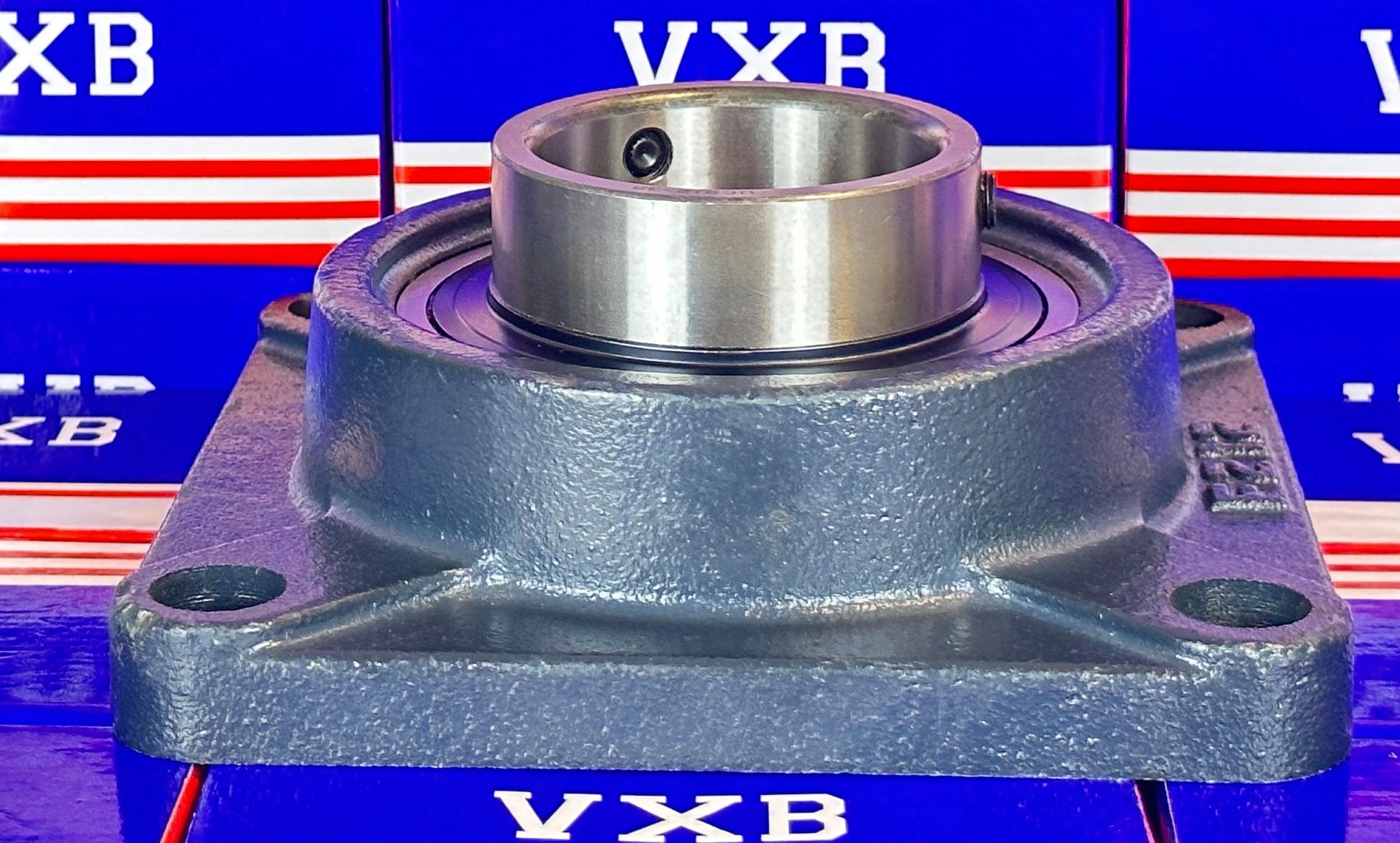

UCF212-39 Four Bolt Flange Unit
Set Screw Type
2 7/16" inch Inner Diameter |

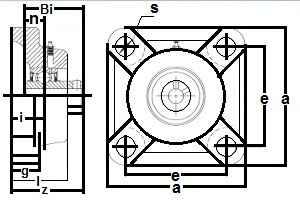

| Dimensions (Inches) |
|---|
| a |
e |
i |
g |
l |
s |
z |
Bi |
n |
| 6-7/8" |
5-5/8" |
1-9/16" |
25/32" |
1-7/8" |
3/4" |
2-23/32" |
2-9/16" |
1" |
|
