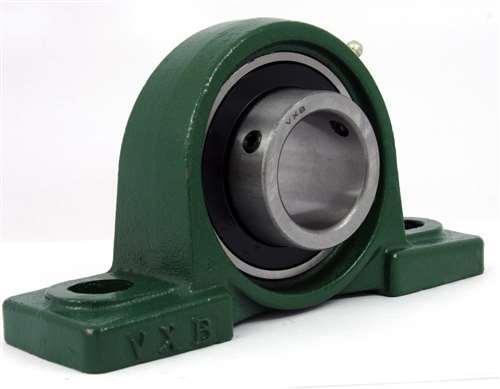

2 Inch Bearing UCP211-32 + Pillow Block Cast Housing Mounted Bearing

Industrial 2 Inch Inner Diameter Pillow Block Bearing Unit
✔️ UC211 high center set screw 2 inch bore pillow block unit detail

This 2 Inch pillow block bearing works great in industrial machines requiring reliable shaft support. You'll get handy mounting options for motors and conveyor drives with this single pack unit.

Inner Diameter	2 Inches
Height	2-1/2 Inches
Length	8-5/8 Inches
Dynamic Load	43,400 N
Bolt Size	5/8 Inches

✅ Cast iron housing supports stable mounting
✅ Set screw lock secures shaft firmly
✅ High center design fits tight assemblies

💡 How do you install pillow block bearings correctly?
Align shaft precisely before tightening bolts securely
- Use grout or epoxy for base stability
- Ensure set screws contact flat keyway area

✝️

UCP211-32 Pillow Block Bearing Set Screw Type High-Center Height 2" Inch Inner Diameter

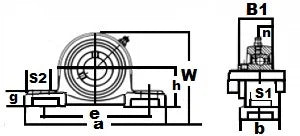

Dimensions (Inchs) h a e b S1 S2 g W B1 n 2-1/2" 8-5/8" 6-23/32" 2-3/8" 7/8" 25/32 3/4" 4-29/32" 2-3/16" 7/8"
