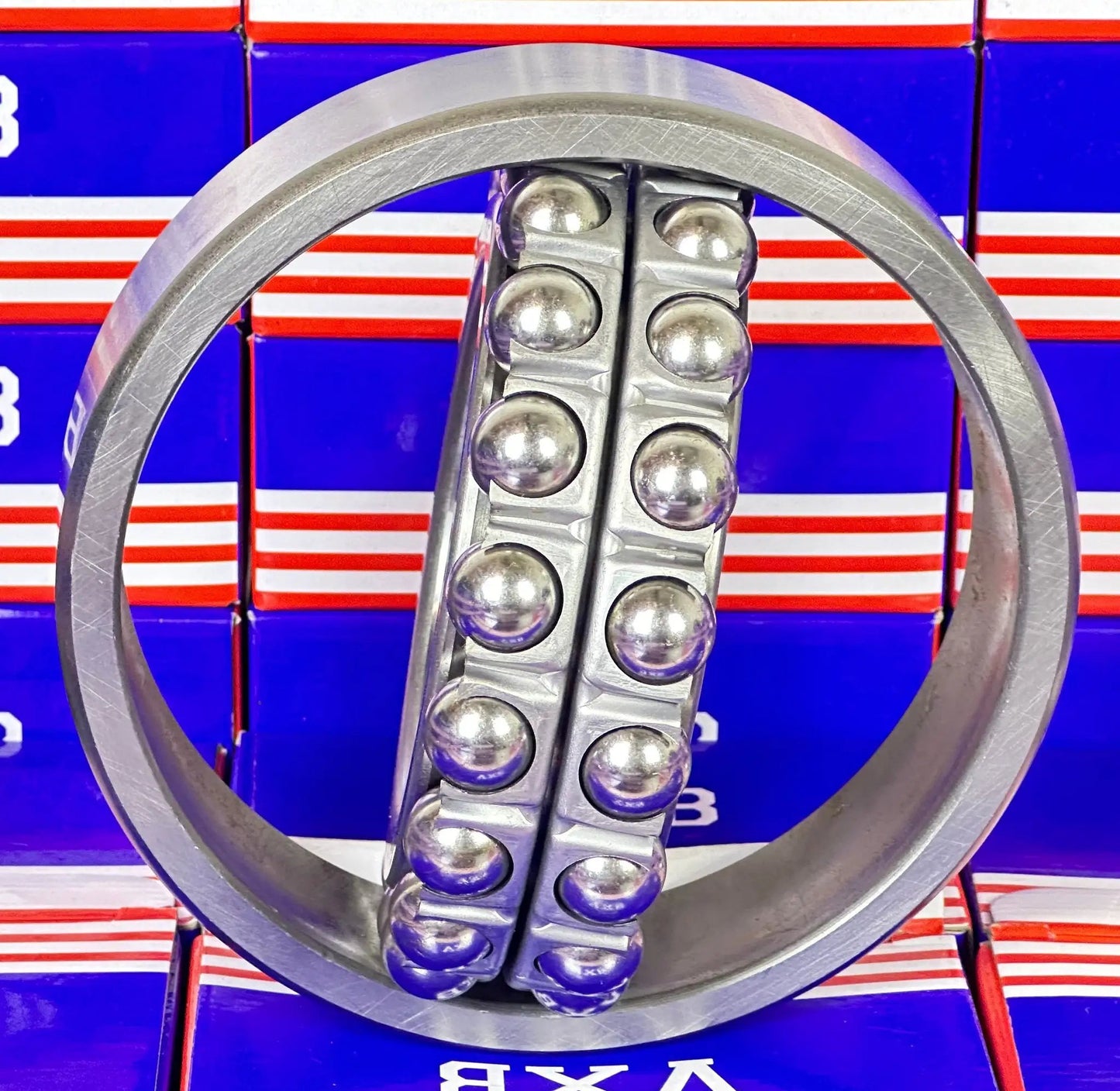

2218 Self Aligning Ball Bearing 90x160x40mm
2218 Self Aligning Ball Bearing 90x160x40mm
Couldn't load pickup availability
2218 Self Aligning Ball Bearing
✨ 90mm x 160mm x 40mm - Chrome Steel for Shaft Misalignment
The 2218 self-aligning ball bearing is built for setups where shaft deflection or misalignment might occur. It features a spherical outer ring raceway that lets the balls and cage rotate freely, making it ideal for heavy-duty machinery, motors, or applications with shaft bending or housing distortion.
🟢 Size: 90mm ID x 160mm OD x 40mm width
🟢 Self-aligning design absorbs shaft misalignment
🟢 Made from 52100 chrome steel for strength and wear resistance
🟢 Dynamic load rating: 67,700 N
🟢 Static load rating: 27,200 N
🟢 Max grease-lubed speed: 3,500 RPM
🟢 Max oil-lubed speed: 4,300 RPM
🟢 Quantity: One bearing
Dimension Table (mm):
| Inner Diameter | Outer Diameter | Width | Cr (N) | Cor (N) | Grease RPM | Oil RPM |
|---|---|---|---|---|---|---|
| 90mm | 160mm | 40mm | 67,700 | 27,200 | 3,500 | 4,300 |
