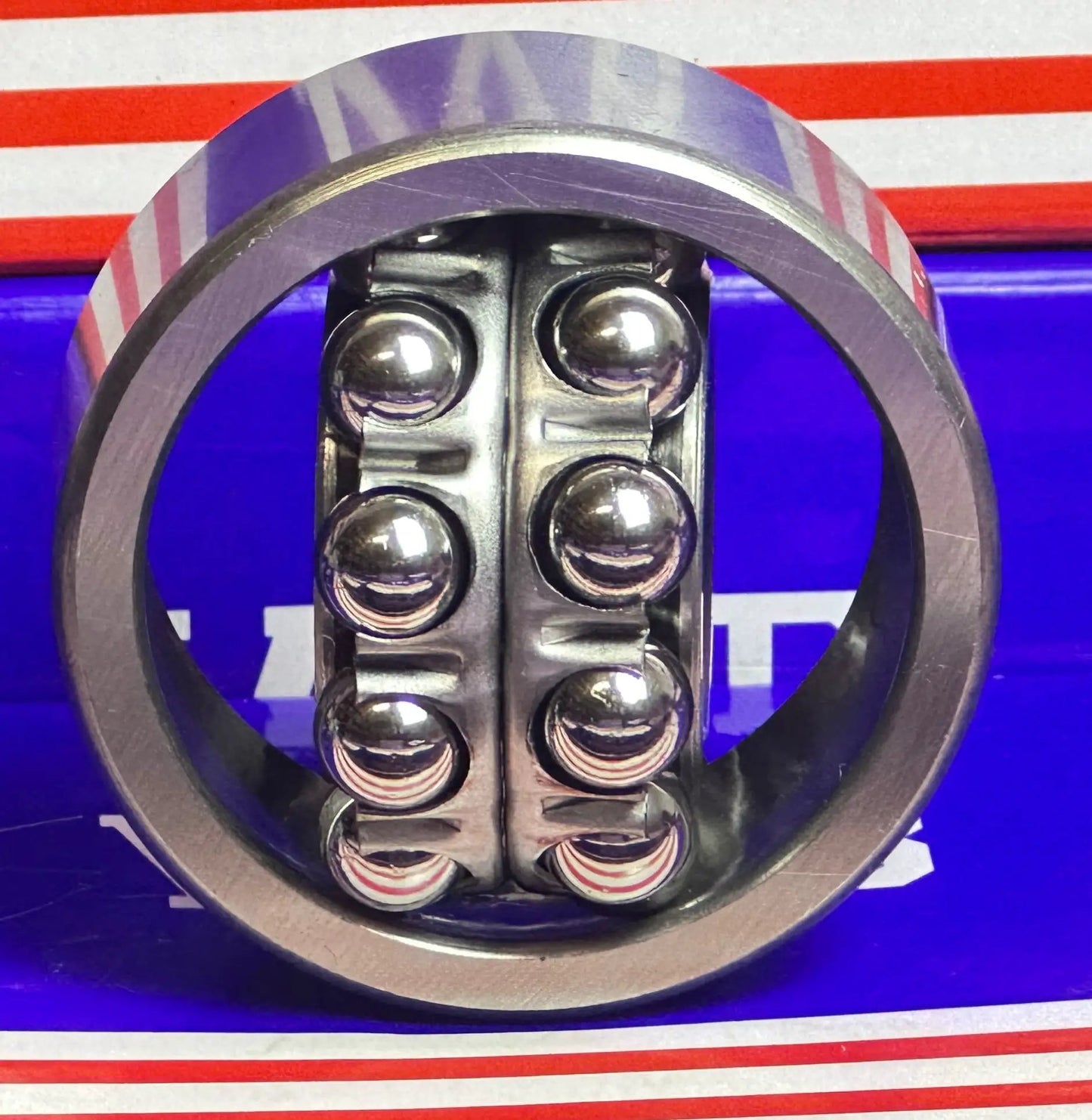

2304 self-aligning ball bearing is designed with a spherical outer raceway that allows the inner ring, balls, and cage to adjust naturally to misalignment. Ideal for applications where shaft deflection or mounting inaccuracies occur, this bearing offers long-lasting performance and smooth operation under dynamic conditions.
- 2304 Ball Bearing
- Self Aligning Bearing
- Dimensions: 20mm x 52mm x 21mm
- Inner Diameter: 20mm
- Outer Diameter: 52mm
- Width: 21mm
- Size: 20 x 52 x 21 mm
- Quantity: 1 Bearing
- Dynamic load rating C: 18,500 N
- Static load rating Co: 4,700 N
-
Limiting Speed:
- Grease Lubrication: 11,000 RPM
- Oil Lubrication: 14,000 RPM
|
