24 Inch Four-Point Contact 608x812x80mm Ball Slewing Ring Bearing - Outside Gear
24 Inch Four-Point Contact 608x812x80mm Ball Slewing Ring Bearing - Outside Gear
Regular price
$1,669.25 USD
Regular price
$1,856.99 USD
Sale price
$1,669.25 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

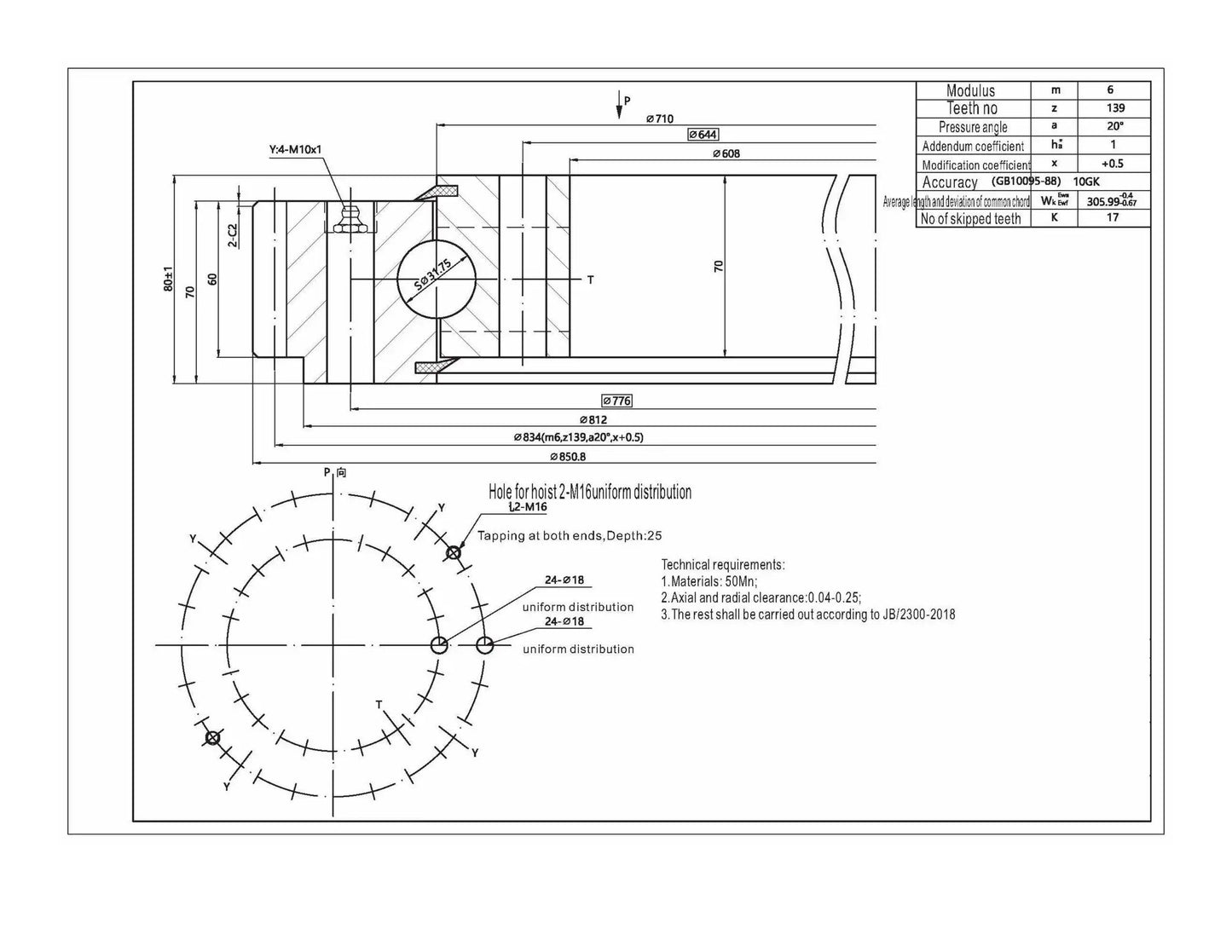

24 Inch Four-Point Contact 608x812x80 mm Ball Slewing Ring Bearing with Outside Gear
| Four-Point Contact Ball Slewing Bearing with Outside Gear |
A slewing bearing ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, or the wind-facing platform of a horizontal-axis windmill. (To 'slew' means to turn without change of place.) |
| Outside Dimensions(mm) | Shoulder Dimensions(mm) | Physical Dimensions(mm) | Gear Parameter | Gear Peripheral force | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dp | De | D | d | T | D0 | d0 |
n |
C |
M |
n1 |
d1 | D1 | B | S | b | m |
z |
x |
ha |
Normalizing (KN) | Slack Quench (KN) |
| VXB01130710001 | 850.8 | 812 | 608 | 80 | 776 | 644 | 24 | 18 | 16 | 4 | 711 | 708 | 70 | 10 | 60 | 6 | 139 | 0.5 | 0.9 | 45 | 62 |
