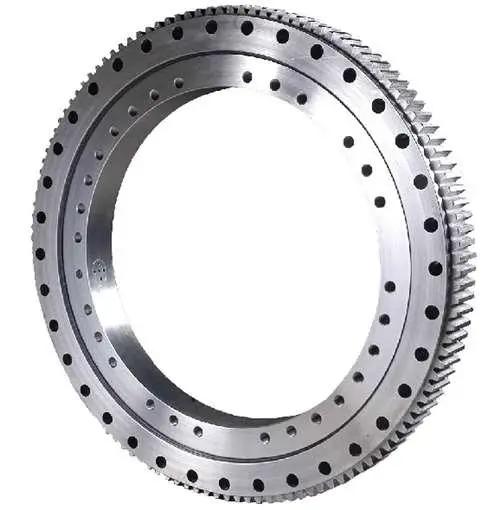

25 Inch Four-Point Contact 623x820.8x55mm Ball Slewing Ring Bearing - Outside Gear

25 Inch Four-Point Contact 623x820.8x55mm Ball Slewing Ring Bearing - Outside Gear

$1,802.29 USD
$2,004.99 USD $1,802.29 USD
Sale Sold out
Shipping calculated at checkout.

Four-Point Contact Ball Slewing Ring Bearing with Outside Gear
✨ 25" Diameter - 623x820.8x55mm - VXB01120710401

This 25-inch four-point contact slewing ring bearing is built for heavy-duty rotary applications where strength, stability, and space-saving design are essential. With an external gear and deep groove profile, it's commonly used in cranes, rotating platforms, and wind turbines for slow-turning or oscillating motion.

🟢 Inner diameter (ID): 623mm
🟢 Outer diameter (OD): 820.8mm
🟢 Height: 55mm
🟢 Gear: External gear
🟢 Gear outer pitch diameter (Dp): 762mm
🟢 Gear inner pitch diameter (d0): 658mm
🟢 Bolt holes: 18 holes (n) - Ø16mm
🟢 Bolt hole pitch circle: 711mm (D1), 709mm (d1)
🟢 Tooth count (z): 134
🟢 Normalizing gear force: 35 kN
🟢 Slack quench gear force: 53 kN
🟢 Material: Hardened steel
🟢 Quantity: 1 bearing
🟢 Part No.: VXB01120710401
Item
 Outside Dimensions(mm) Shoulder Dimensions(mm) Physical Dimensions(mm) Gear Parameter Gear Peripheral force
Dp De D d T D0 d0
n
C
M
n1
 d1 D1 B S b m
z
x
ha
 Normalizing (KN) Slack Quench (KN)
VXB01120710401 820.8 820.8 623 55 762 658 24 18 16 4 711 709 46 9 46 6 134 0.5 0.9 35 53
