25mm Square Flanged Linear Ball Bushing Smooth Operator Long Shaft Sleeve Bully Proof Tracking For Cnc Machines And Robots Pro Grade Zero Drag Assembly Built Tough Durable Lbk25luu

25mm square flanged linear bearing for CNC machine slide tracks
✔️ 25mm bore 30mm OD handles 3140 Newton static max capacity spec

This listing contains a single precision guide component designed to deliver steady linear travel along hardened steel shafts in factory automation setups. Operators mount these housings on packaging conveyors and pick and place stations to minimize vibration during rapid directional shifts and extend overall system uptime.

✅ 25mm inner diameter accommodates standard metric guide rods perfectly ✅ Extended forty millimeter body length increases support span Against bending moments ✅ One hundred twelve millimeter flange layout aligns with four equidistant mounting holes ✅ Double lip seals protect the internal ball circuits from abrasive workshop dust ✅ Fifteen hundred sixty Newton dynamic rating ensures smooth continuous cycling operation

Specification	Measurement
Bore Diameter (D)	25 mm
Outer Diameter (Df)	30 mm
Flange Length (F)	112 mm
Body Length (L)	40 mm
Dynamic Load Rating (C)	1560 N
Static Load Rating (Co)	3140 N

💡 What factors influence the operational lifespan of a square flanged linear ball bearing assembly? Service longevity hinges primarily on consistent lubrication routines and preventing cross-threaded mounting errors during initial installation.
- Fresh grease application reduces friction coefficients across the hardened inner raceway channels
- Rigid bracket anchoring stops eccentric deflection that prematurely wears the polymer cage
- Selecting appropriate environmental sealing blocks abrasive grit from entering the ball path
- Scheduled shaft cleaning procedures maintain dimensional tolerances for flawless reciprocating motion
Shop supervisors rate these housings mighty handy because they cut down emergency breakdowns on crowded production lines.

✝️

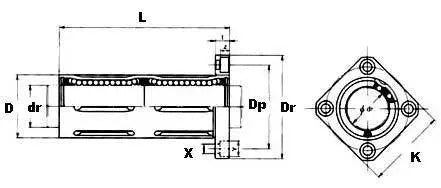

Square Flanged Linear Motion Long Ball Bushings 25mm LBK25LUU

Item

Main Dimensions and Tolerances

Basic Load Rating

dr

D

L

flange

dynamic (C N)

static (Co N)

mm

tolerances

mm

tolerances

tolerances

tolerances

Df mm

K mm

t mm

Dp mm

X mm

Y mm

Z mm

25mm LBK25LUU

25

0 -12

40

0 -19

112

300

62

50

8

51

5.5

9

5.1

1560

3140
