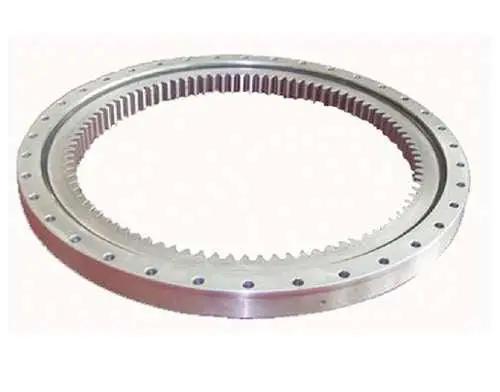

27 Inch Slewing Ring Bearing Four Point Contact Ball Bearing With Internal Gear Rotary Swivel Heavy Duty Workhorse Built Like A Tank For Slow Oscillating Loads
27 Inch Slewing Ring Bearing Four Point Contact Ball Bearing With Internal Gear Rotary Swivel Heavy Duty Workhorse Built Like A Tank For Slow Oscillating Loads
Couldn't load pickup availability
✔️ Inside Gear Rotating Bearing Measures 678 By 922 Millimeters
✅ Inner race width measures one hundred millimeters for stable mounting
✅ Eighty pitch circle diameter gears seamlessly with standard motors
✅ Four point ball contact design handles combined axial and radial loads
💡 What exactly do engineers look for when picking a heavy duty slewing ring bearing with internal gear for rotary equipment?
A handy setup needs solid grip while keeping friction low during slow swings.
- High load capacity ratings keep platform movement steady under stress
- Matched internal tooth profiles guarantee smooth torque transfer without slip
- Sealed ball tracks protect against dust and moisture in outdoor jobsites
- Compact cross section saves floor space on tight machinery frames
| Four-Point Contact Ball Slewing Bearing with inside Gear |
A slewing bearing ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, or the wind-facing platform of a horizontal-axis windmill. (To 'slew' means to turn without change of place.) |
| Outside Dimensions(mm) | Shoulder Dimensions(mm) | Physical Dimensions(mm) | Gear Parameter | Gear Peripheral force | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dp | De | D | d | T | D0 | d0 |
n |
C |
M |
n1 |
d1 | D1 | B | S | b | m |
z |
x |
ha |
Normalizing (KN) | Slack Quench (KN) |
| VXB01340800001 | 635.2 | 922 | 678 | 100 | 878 | 722 | 30 | 22 | 20 | 6 | 801 | 798 | 90 | 10 | 80 | 8 | 80 | 0.5 | 0.8 | 80 | 111 |
