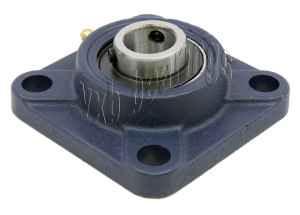

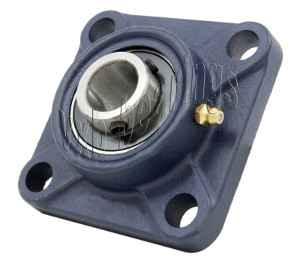

3-1/4" Bearing UCF-217-52 + 4-Bolt Flanged Housing Mounted

UCF-217-52 Four-Bolt Flange Bearing Unit - Set Screw Lock
✨ 3-1/4" Inner Diameter - Heavy Duty - UC217-52 Insert

The UCF-217-52 is a robust four-bolt flange-mounted bearing unit built for heavy-duty industrial applications. Featuring a 3-1/4" inner diameter and set screw locking system, it offers secure shaft grip and easy alignment with its solid F217 housing. Ideal for conveyor systems, rotating drums, and large industrial machinery.

🟢 Type: 4-bolt flange mounted bearing
🟢 Insert: UC217-52
🟢 Housing: F217
🟢 Bore type: 3-1/4" inner diameter - set screw locking
🟢 Mounting: Four-bolt flange with round cartridge back
🟢 Bolt size: 3/4" inch
🟢 Dynamic load rating (Cr): 84,000 N
🟢 Static load rating (Cor): 61,900 N
🟢 Quantity: 1 bearing unit

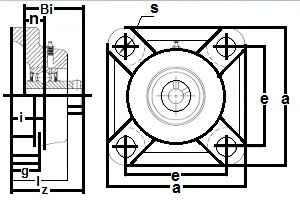

Mounting Dimensions (inches):

• a (flange width): 8-21/32"

• e (bolt hole spacing): 6-57/64"

• i (housing base height): 2-15/32"

• g (flange thickness): 15/16"

• l (bearing seat depth): 2-15/32"

• s (bolt hole diameter): 29/32"

• z (flange height): 3-7/16"

• Bi (insert width): 3-3/8"

• n (set screw spacing): 1-11/32"
