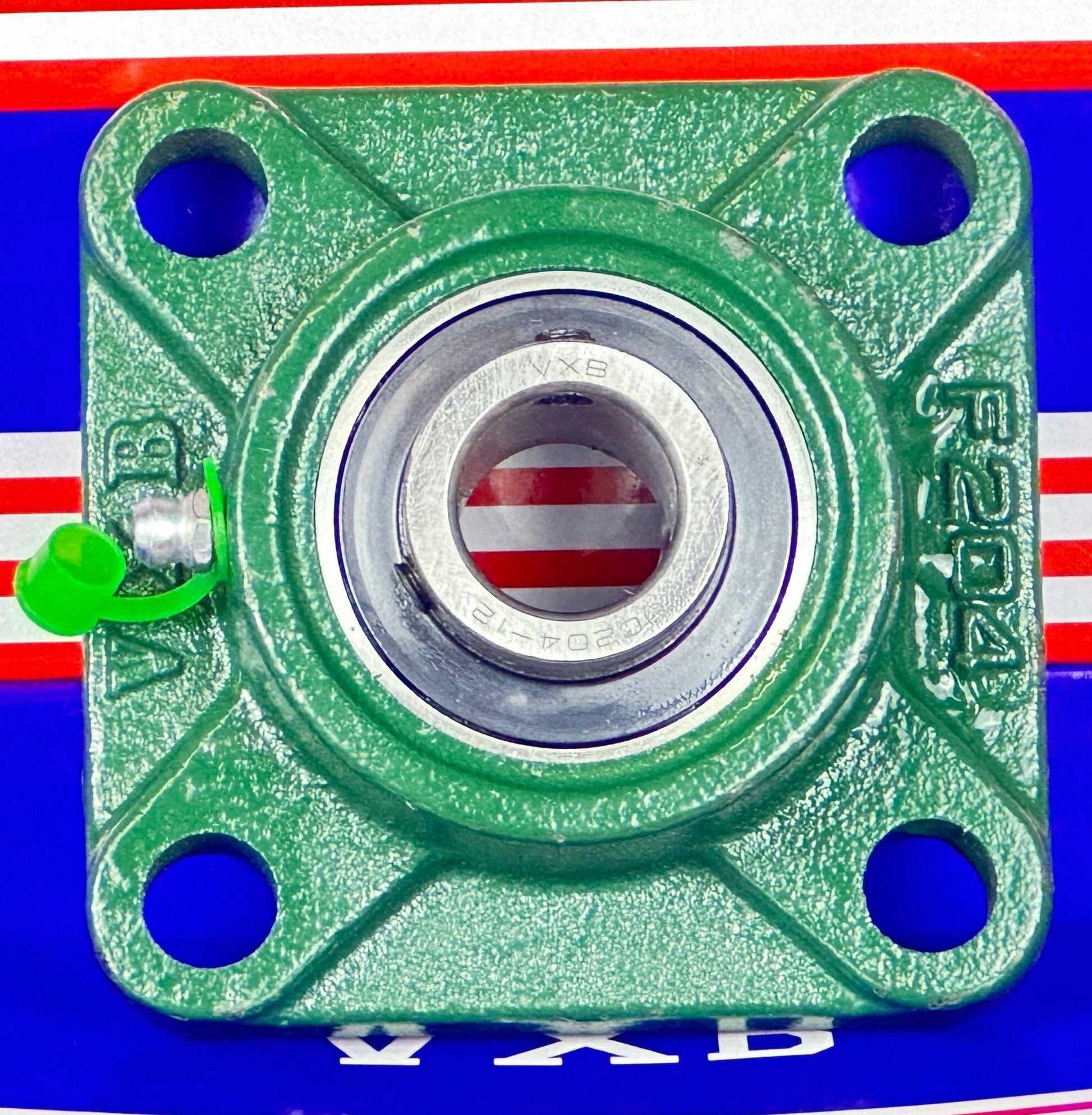

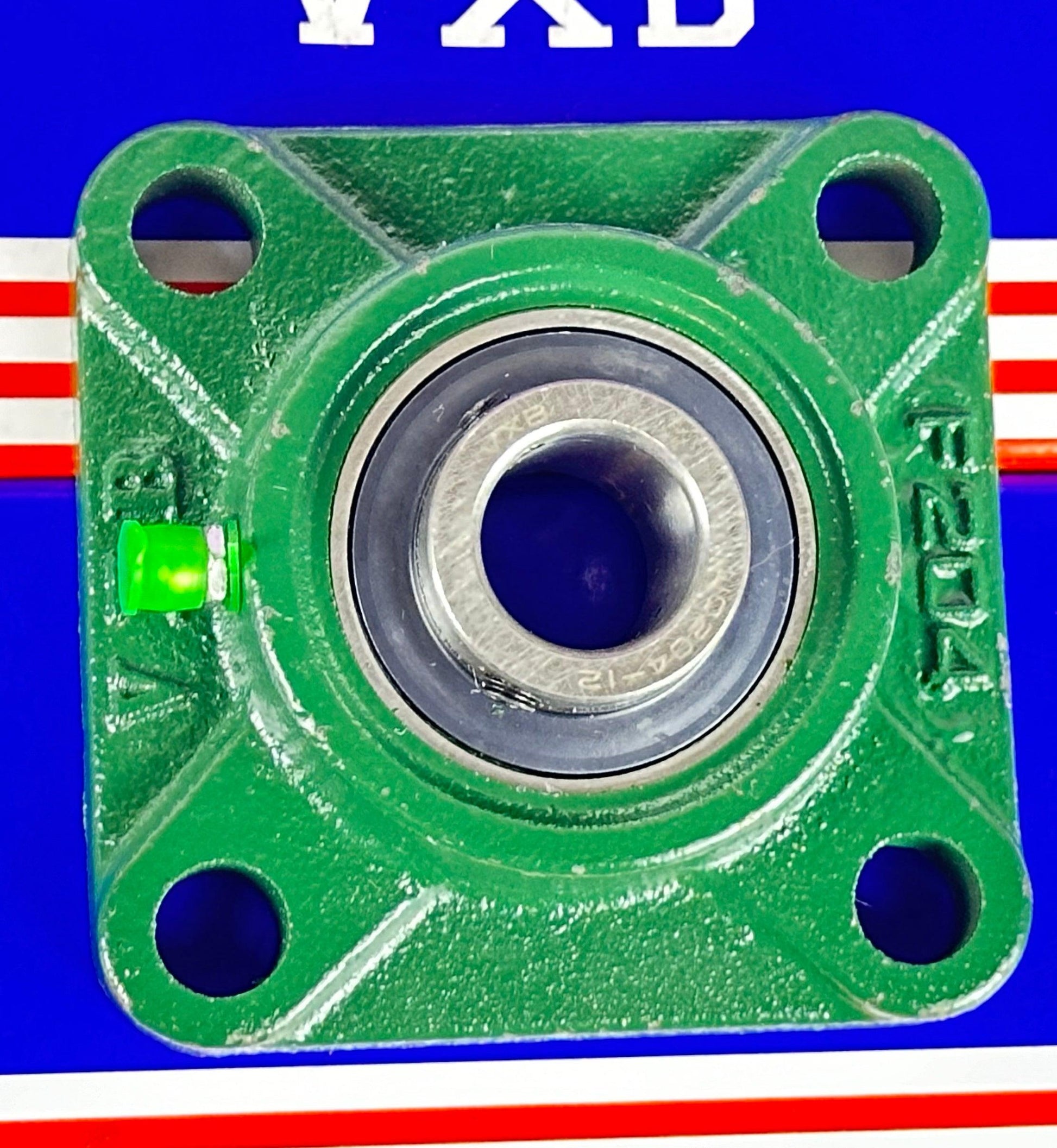

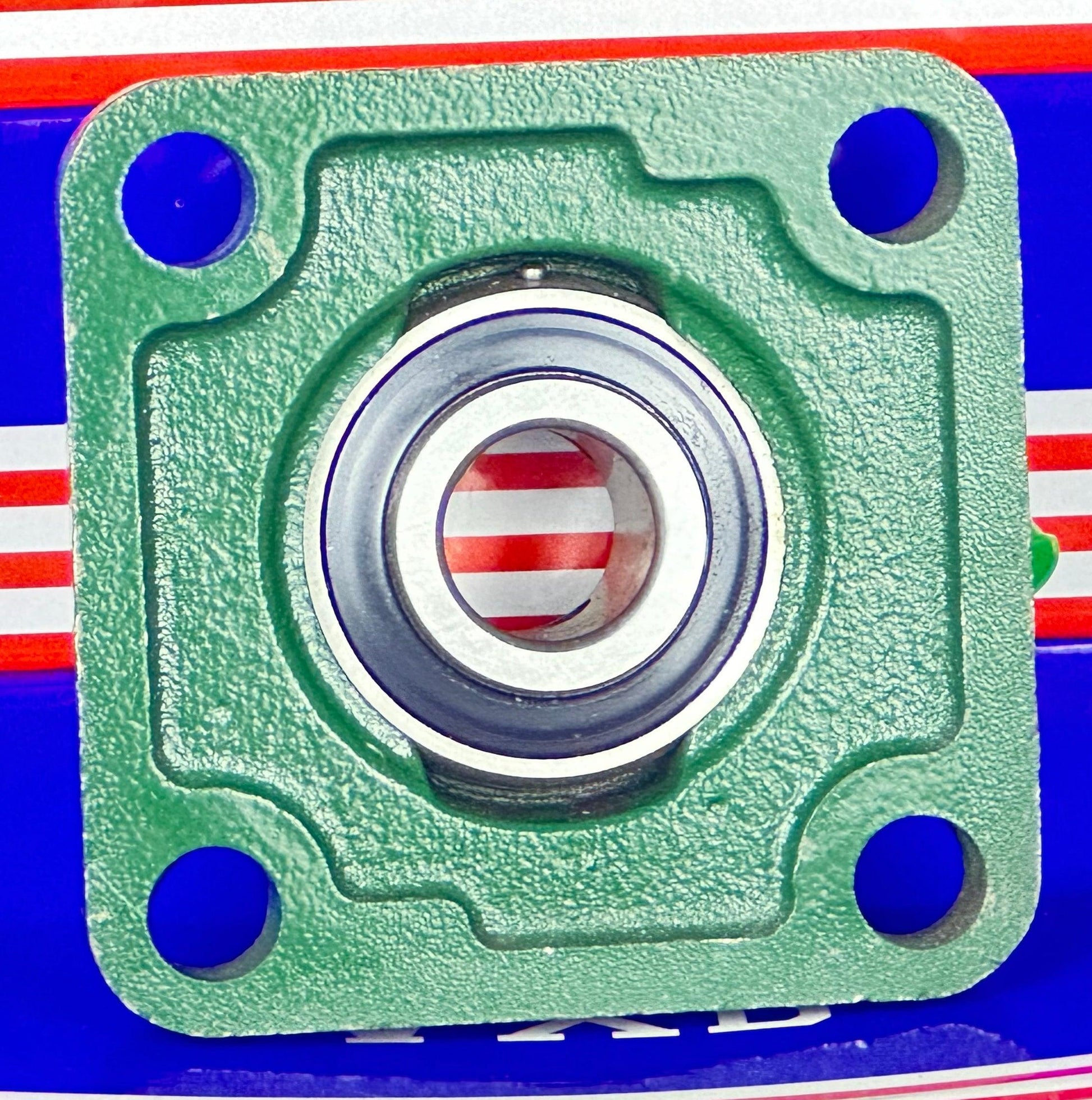

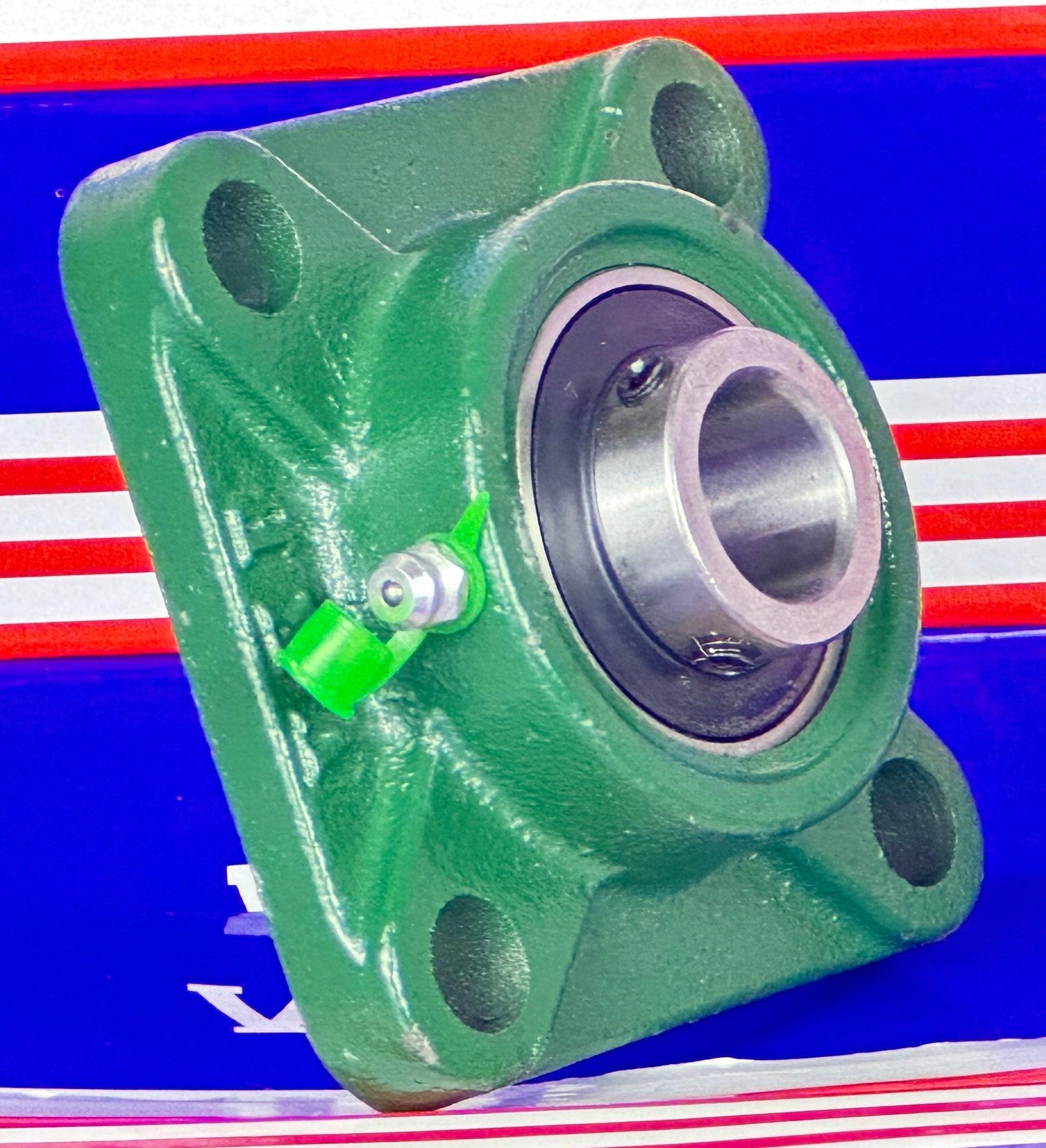

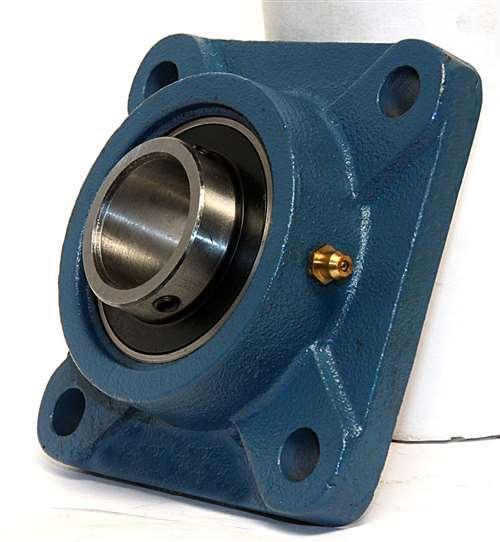

3/4" UCF204-12 Mounted Bearing Insert + Square Flanged Cast Housing

UCF204-12 Flanged Mounted Bearing
✨ 3/4" ID - 4-Bolt Square Flange - Set Screw Mount

The UCF204-12 is a heavy-duty, four-bolt flange bearing unit designed for accurate alignment and stable mounting. With a cylindrical bore and set screws, it's ideal for supporting rotating drums, rollers, and shafts where precision placement matters.

🟢 Inner Diameter: 3/4"
🟢 Mount: Square 4-bolt flange with round cartridge backing
🟢 Bore Type: Cylindrical with set screws
🟢 Bolt Size: 3/8"
🟢 Dynamic Load Rating: 12 kN
🟢 Static Load Rating: 6.65 kN
🟢 Bearing Reference: UC204-12
🟢 Quantity: 1 bearing

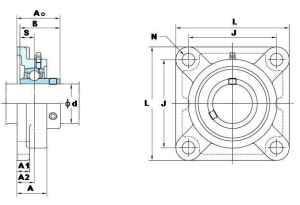

Dimensions (in inches):
