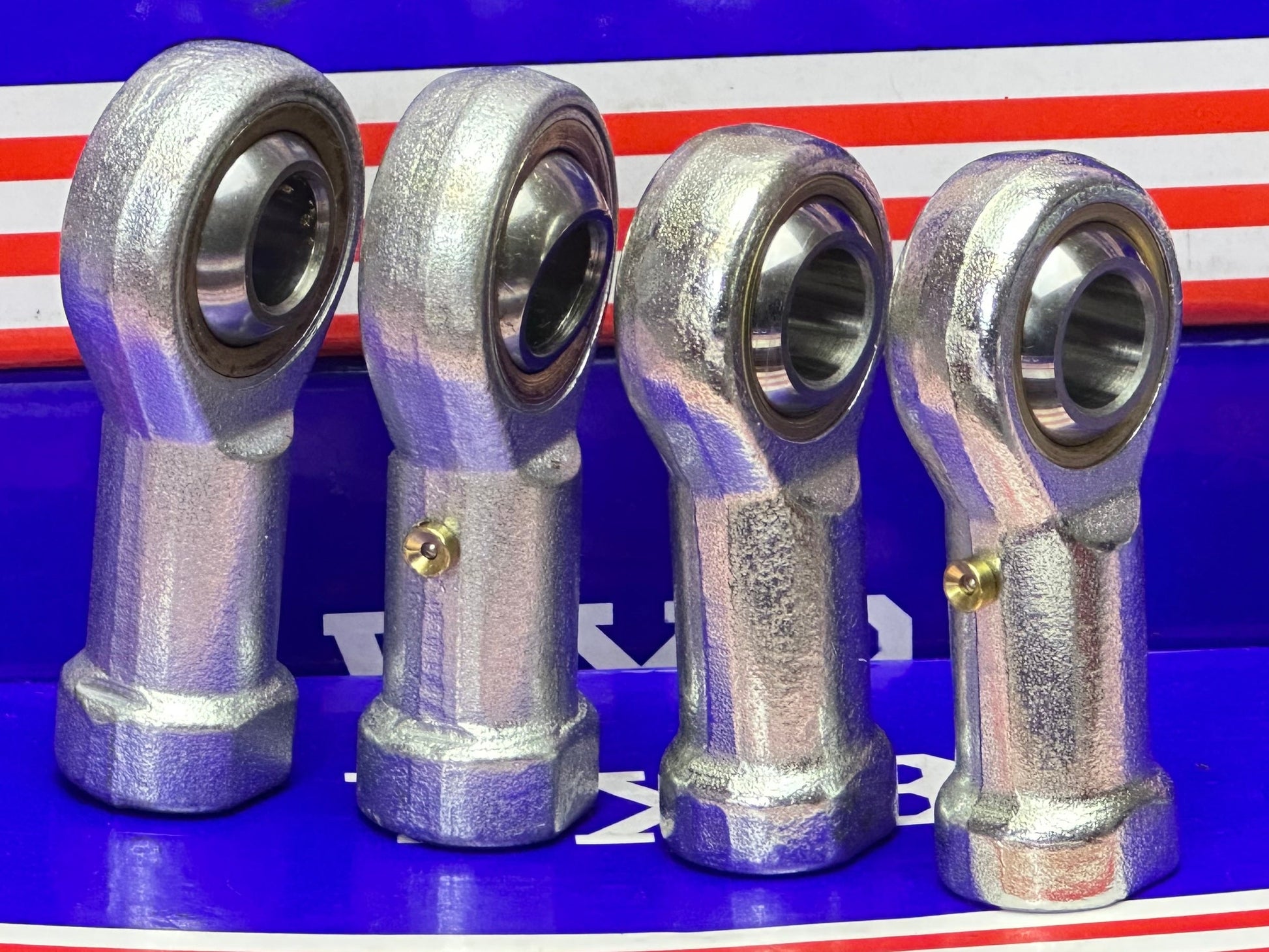

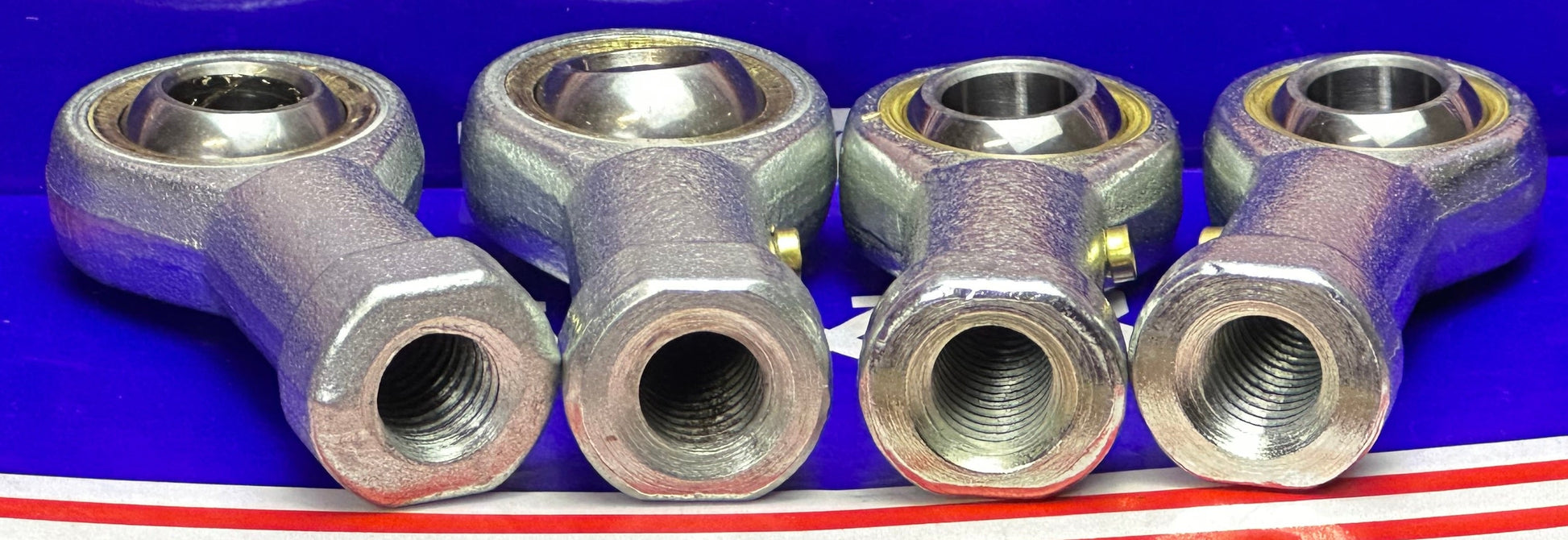

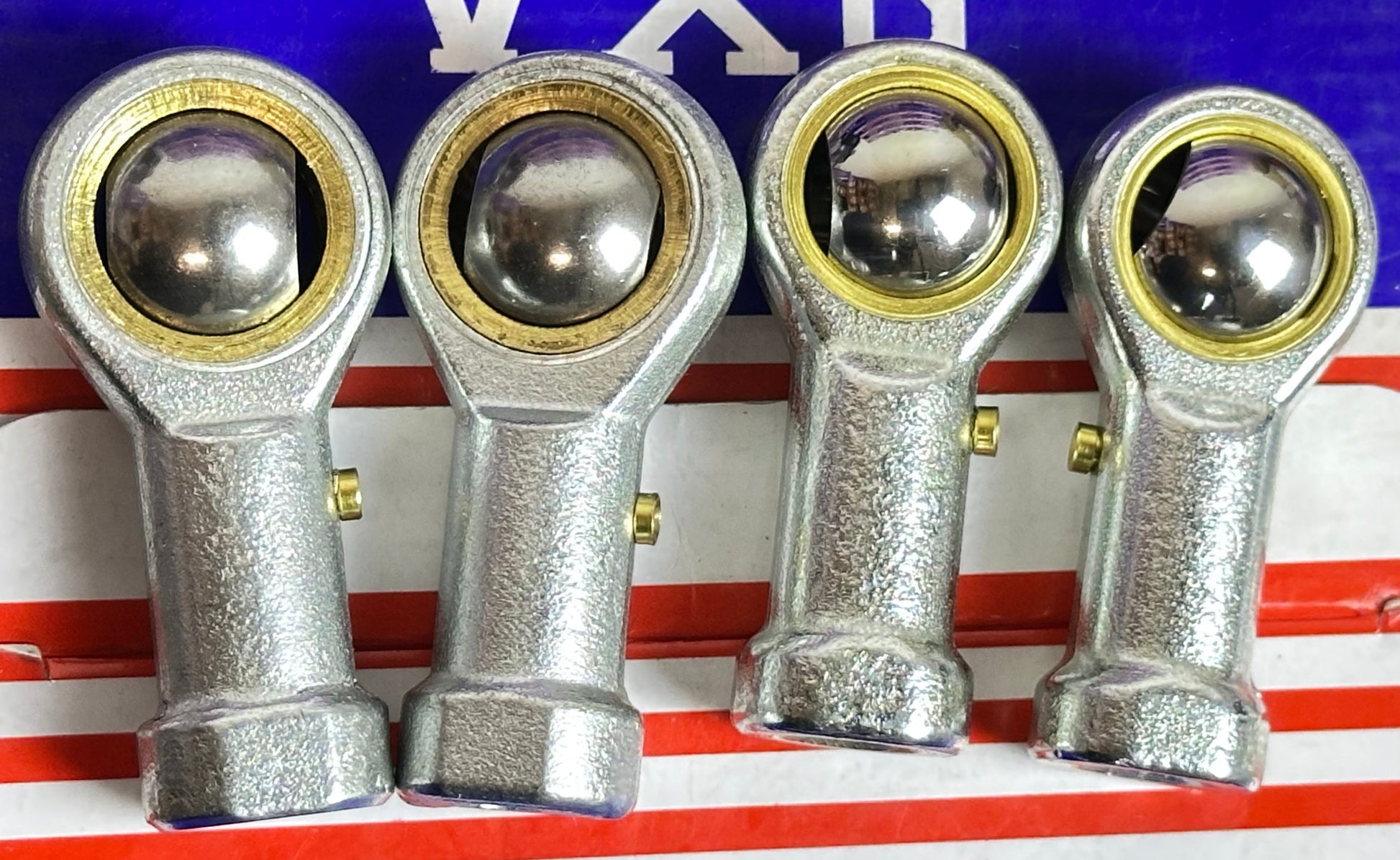

4 Pieces Female Rod End PHS-10 work with 10 mm Shafts (0.3937"), bearings are 2 left hand and 2 right hand, inner diameter is 10mm, the internal thread size is M10x1.5, Cross-reference part numbers:
- PHS-10 bearings
- Rod Ends Heim Joints Bearings
- Quantity: Four Bearings
- Basic Dynamic Load Rating: 1,000 KGF
- Basic Static Load Rating: 1,360 KGF
- IKO: PHS 10
- ELGES: GIKFR 10 PB
- Equal: SIKAC 10 M
- HIRSCHMANN: SF 10

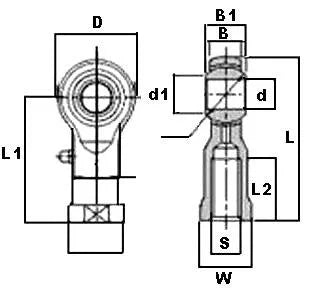

| Dimensions (mm) |
|---|
| d |
Thread
S |
D |
B |
B1 |
d1 |
L |
L1 |
L2 |
W |
| 10 |
M10x1.5 |
26 |
10.5 |
14 |
12.9 |
56 |
43 |
21 |
17 |
|
