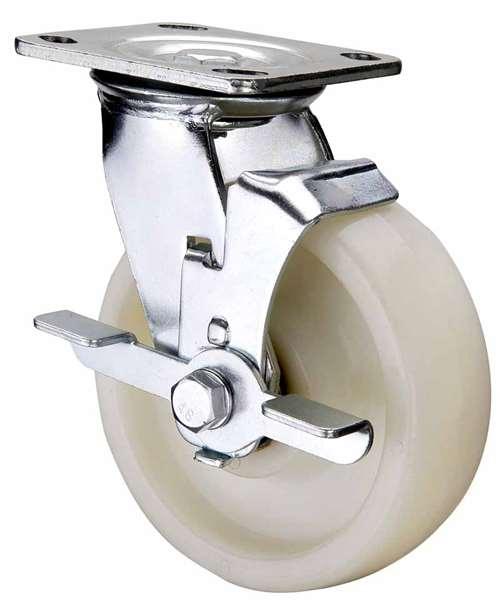

4" Heavy Duty Caster Wheel 1102 Lbs Side Brake Polyamide (Nylon) - Top Plate Mount

4" Inch Caster Wheel 1102 pounds Side Brake Polyamide (Nylon) Top Plate

VXB00510050BNYB1

Heavy Duty

Wheel Diameter= 100mm

Wheel Width= 50mm

Wheel Diameter= 4" Inch = 100mm

Overall Height= 142mm

Overall Height Inch= 5.591"

Mounting Type= Top Plate

Top Plate Size= 115mm x 110mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Polyamide (Nylon)

Tire= Polyamide (Nylon)

Bearing type= Double ball beaing

Load Capacity= 1102 lb

Mounting= Side Brake

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB00510050BNYB1. The wheel diameter is 100mm or 3.937" inch in inches. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 142mm = 5.591" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 115mm x 110mm x 6mm with the holes distance of 72mm x 85mm. The Double ball beaing design will enable the Polyamide (Nylon) tire to roll easily with a core made from Polyamide (Nylon). Each caster will carry the load of 1102 lb and is Side Brake type. Temperature range is -40 to 180 F. Buy our VXB00510050BNYB1, we wish all the best.
