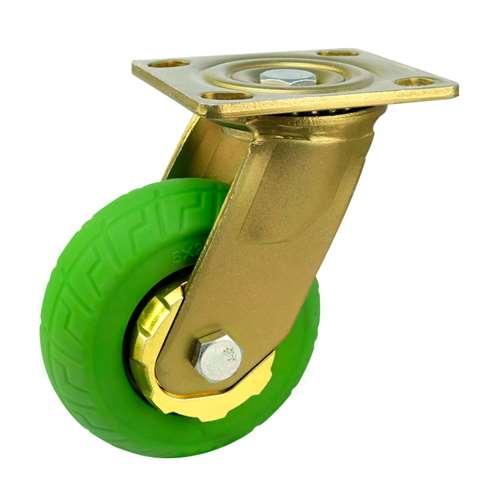

4" Heavy Duty Caster Wheel 441 Lbs - TPR - Top Plate Mount

4" Inch Caster Wheel 441 pounds Swivel Thermoplastic Rubber Top Plate

VXB005100BLTPR

Heavy Duty

Wheel Diameter= 100mm

Wheel Width= 50mm

Wheel Diameter= 4" Inch = 100mm

Overall Height= 142mm

Overall Height Inch= 5.591"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Thermoplastic Rubber

Tire= Thermoplastic Rubber

Bearing type= Double ball beaing

Load Capacity= 441 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB005100BLTPR. And rolling on wheel that has 100mm diameter/3.937" inch. The wheel has a width of 50mm=1.969" inch. The Caster with the wheel from end to end is 142mm = 5.591" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. This caster wheel core material is Thermoplastic Rubber and has a Thermoplastic Rubber tire spinning over Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 441 lb with a Swivel type. Environment temperature range is -40 to 180 F. Buy our VXB005100BLTPR, we wish all the best.
