LMF40UU Linear Ball Bearing
✨ Flanged Type - For 40mm Shaft - 40mm x 60mm x 80mm
The LMF40UU linear ball bearing is built for smooth motion along 40mm shafts, featuring a flanged round housing for secure mounting. With built-in rubber seals and a rugged steel body, it’s perfect for CNC, automation, and guided rail systems where precision and support matter.
🟢 Fits 40mm linear motion shafts
🟢 Flanged housing for easy surface mounting
🟢 Built-in rubber seals to keep out dust and debris
🟢 Inner diameter: 40mm
🟢 Outer diameter: 60mm
🟢 Length: 80mm
🟢 Dynamic load rating: 2,160 N
🟢 Static load rating: 4,020 N
🟢 Sold as 1 linear bearing

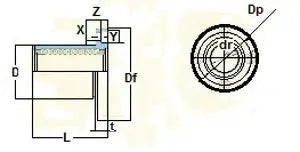

Dimensions Table (mm):
| ID (dr) | OD (D) | Length (L) | Flange Dia. (Dp) | Bolt Circle (X) | Bolt Hole (Y) | Hole Diameter (Z) |
|---|---|---|---|---|---|---|
| 40 mm | 60 mm | 80 mm | 96 mm | 78 mm | 14 mm | 8.1 mm |
💡When should you use a flanged linear bearing like LMF40UU?
Flanged linear bearings bring stability and guided motion to vertical and horizontal setups:
-
Secure mounting for guided rails and machine frames
-
Smooth motion for CNCs, 3D printers, and robotics
-
Protect internal balls from dust with sealed design
-
Great for long travel with minimal friction
Upgrade your linear system with this tough, smooth glider - add it to your cart and get rolling right!
