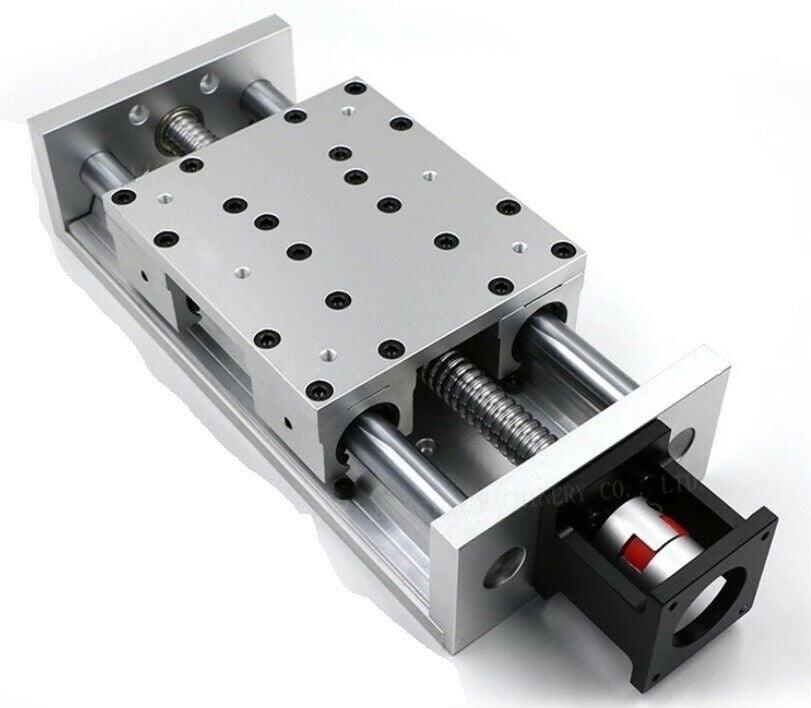

48" Linear Motion CNC Router Module - Heavy Duty Ballscrew - 5mm Lead

Heavy Duty CNC Linear Motion Guide with Ballscrew
✨ 48" (4-Foot) Travel - SBR20 + 2005 Ball Screw - Dual Shaft CNC/Robot Module

This 48" (4-foot) CNC router linear motion guide combines a C7-graded 2005 ballscrew and dual-shaft SBR20 linear guideways for precise, smooth movement over long distances. Designed for heavy-duty CNC and robotic use, it supports multiple motor types and is ideal for X, Y, or Z-axis applications requiring stable high-accuracy motion.

🟢 Stroke Length: 48 inches (approx. 1220mm)
🟢 Ball Screw Type: 2005 (20mm diameter, 5mm lead)
🟢 Accuracy: C7 Grade (±0.02mm)
🟢 Guideways: SBR20 linear motion rail system
🟢 Design: Dual shaft for added rigidity and load support
🟢 Max Speed: 250mm/sec
🟢 Motor Compatibility:
✨ 57 & 86 Stepper Motors
✨ 100W, 200W, and 400W Servo Motors
🟢 Application: Ideal for CNC routers, robotic arms, camera sliders, and gantry systems
🟢 Structure: Precision aluminum alloy profile - durable and corrosion-resistant
