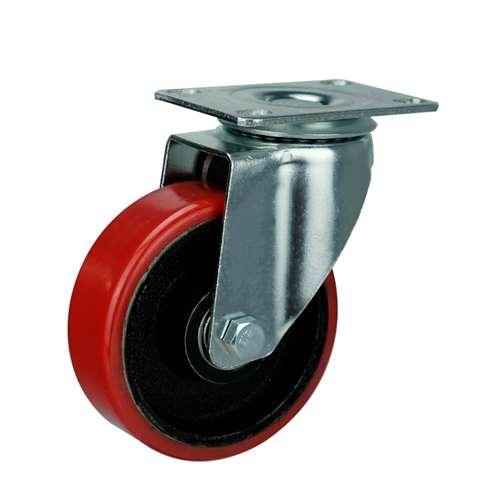

5" Caster Wheel 331 Lbs - Iron - PU - Top Plate Mount

5" Inch Caster Wheel 331 pounds Swivel Iron and Polyurethane Top Plate

VXB004125CPU

Medium Duty

Wheel Diameter= 125mm

Wheel Width= 32mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 156mm

Overall Height Inch= 6.142"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 45mm x 72mm

Wheel Core= Iron and Polyurethane

Tire= Iron and Polyurethane

Bearing type= Double ball bearing

Load Capacity= 331 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB004125CPU. Diameter size of the caster wheel has a metric standard 125mm which is equal to 4.921" inch with imperial units. The thickness of the wheel is 32mm or 1.260" inch. The Caster with the wheel from end to end is 156mm = 6.142" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 93mm x 62mm with the holes distance of 45mm x 72mm. This caster wheel core material is Iron and Polyurethane and has a Iron and Polyurethane tire spinning over Double ball bearing. Each caster will carry the load of 331 lb and is Swivel type. The caster temperature range = -40 to 180 F. Very important notice, you need to buy the VXB004125CPU in order to get one :).
