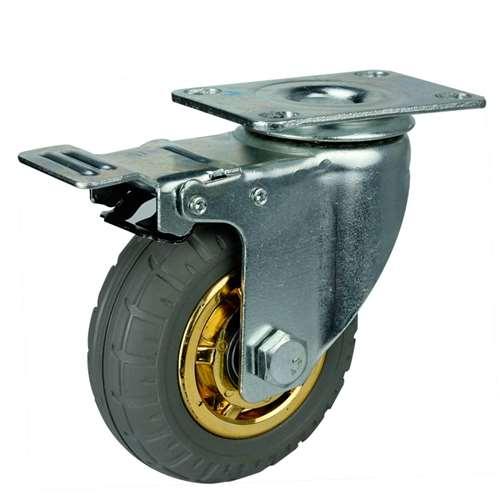

5" Caster Wheel - Brake Rubber - Top Plate Mount

5" Inch Caster Wheel 176 pounds Swivel and Upper Brake Rubber Top Plate

VXB004125RBB

Medium Duty

Wheel Diameter= 125mm

Wheel Width= 35mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 157mm

Overall Height Inch= 6.181"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 45mm x 72mm

Wheel Core= Rubber

Tire= Rubber

Bearing type= Ball bearing

Load Capacity= 176 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Tens of thousands of different kinds to select from to have your office Desk/chair sliding easily right and left, install the VXB004125RBB. And rolling on wheel that has 125mm diameter/4.921" inch. The thickness of the wheel is 35mm or 1.378" inch. Overall height of the wheel caster is 157mm = 6.181" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 93mm x 62mm with the holes distance of 45mm x 72mm. This caster wheel core material is Rubber and has a Rubber tire spinning over Ball bearing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 176 lb with a Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Buy the VXB004125RBB now, just add the quantity to basket and click on Checkout.
