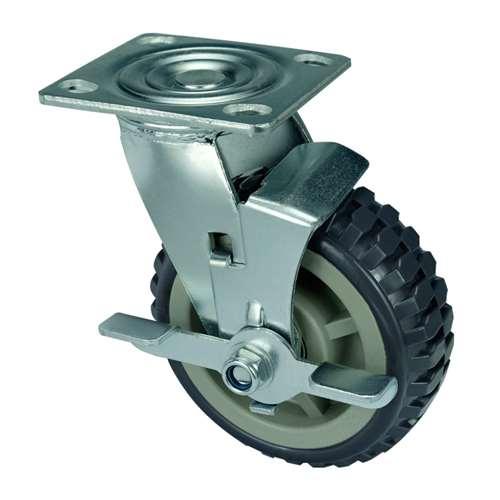

5" Heavy Duty Caster Wheel 507 Lbs - Center Brake PP Core - PU - Top Plate Mount

5" Inch Caster Wheel 507 pounds Swivel and Center Brake Polypropylene core and Polyurethane Top Plate

VXB005125YGVCB1

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 167mm

Overall Height Inch= 6.575"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polypropylene core and Polyurethane

Tire= Polypropylene core and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 507 lb

Mounting= Swivel and Center Brake

Temperature Range= -40 to 180 F

Make your life easier, have big objects easier to Maneuver using the VXB005125YGVCB1 Wheel Caster. Diameter size of the caster wheel has a metric standard 125mm which is equal to 4.921" inch with imperial units. Dimensions of the caster wheel is 50mm (1.969" inch). The caster dimensions heightwise is 167mm/6.575" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The Double ball beaing design will enable the Polypropylene core and Polyurethane tire to roll easily with a core made from Polypropylene core and Polyurethane. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 507 lb with a Swivel and Center Brake type. The caster temperature range = -40 to 180 F. Buy our VXB005125YGVCB1, we wish all the best.
