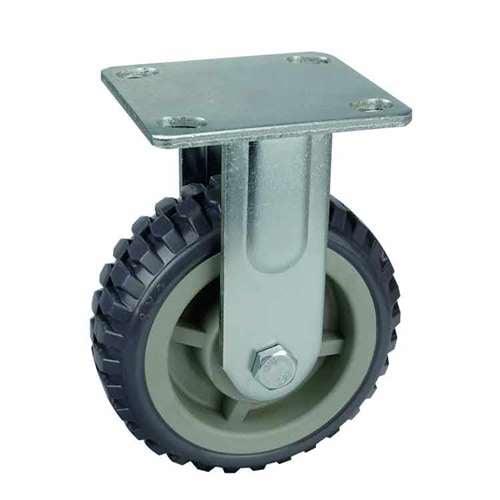

5" Heavy Duty Caster Wheel 507 Lbs Fixed PP Core - PU - Top Plate Mount

5" Inch Caster Wheel 507 pounds Fixed Polypropylene core and Polyurethane Top Plate

VXB005125YGVCF

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 167mm

Overall Height Inch= 6.575"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polypropylene core and Polyurethane

Tire= Polypropylene core and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 507 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Utilizing VXB005125YGVCF makes it feasible to pull and push items instead of transport The wheel diameter is 125mm or 4.921" inch in inches. Dimensions of the caster wheel is 50mm (1.969" inch). The Caster with the wheel from end to end is 167mm = 6.575" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 100mm x 115mm with the holes distance of 75mm x 85mm. The weehl core material is Polypropylene core and Polyurethane and has a Polypropylene core and Polyurethane tire with a low friction Double ball beaing. Bearing in mind that every caster wheel has the load capacity of 507 lb with a Fixed type. Temperature range is -40 to 180 F. Buy the VXB005125YGVCF now, just add the quantity to basket and click on Checkout.
