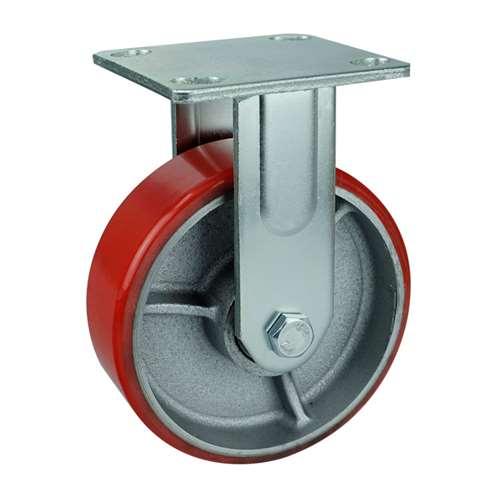

5" Heavy Duty Caster Wheel 838 Lbs Fixed Cast Iron - PU - Top Plate Mount

5" Inch Caster Wheel 838 pounds Fixed Cast Iron and Polyurethane Top Plate

VXB005C125CPUF

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 175mm

Overall Height Inch= 6.890"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Cast Iron and Polyurethane

Tire= Cast Iron and Polyurethane

Bearing type= Roller bearing

Load Capacity= 838 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Make your life easier, have big objects easier to Maneuver using the VXB005C125CPUF Wheel Caster. Diameter size of the caster wheel has a metric standard 125mm which is equal to 4.921" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The Caster with the wheel from end to end is 175mm = 6.890" inch. Mounted via a Top Plate that has the size of 115mm x 100mm x 6mm and the holes distance of 72mm x 85mm. This caster wheel core material is Cast Iron and Polyurethane and has a Cast Iron and Polyurethane tire spinning over Roller bearing. Each caster will carry the load of 838 lb and is Fixed type. The caster temperature range = -40 to 180 F. Buy the VXB005C125CPUF now, just add the quantity to basket and click on Checkout.
