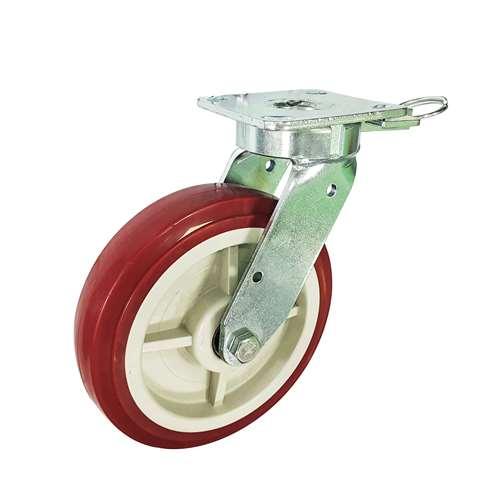

5" Heavy Duty Caster Wheel 926 Lbs - Brake Aluminium - PU - Top Plate Mount

5" Inch Caster Wheel 926 pounds Swivel and Upper Brake Aluminium and Polyurethane Top Plate

VXB005C125BAPUB3

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 175mm

Overall Height Inch= 6.890"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Aluminium and Polyurethane

Tire= Aluminium and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 926 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Mounting VXB005C125BAPUB3 is the Low cost solution of making a project to move around by pushing or pulling. The wheel diameter is 125mm or 4.921" inch in inches. The thickness of the wheel is 50mm or 1.969" inch. Overall height of the wheel caster is 175mm = 6.890" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 115mm x 100mm x 6mm with the holes distance of 72mm x 85mm. The Double ball beaing design will enable the Aluminium and Polyurethane tire to roll easily with a core made from Aluminium and Polyurethane. Each caster will carry the load of 926 lb and is Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Buy our VXB005C125BAPUB3, we wish all the best.
