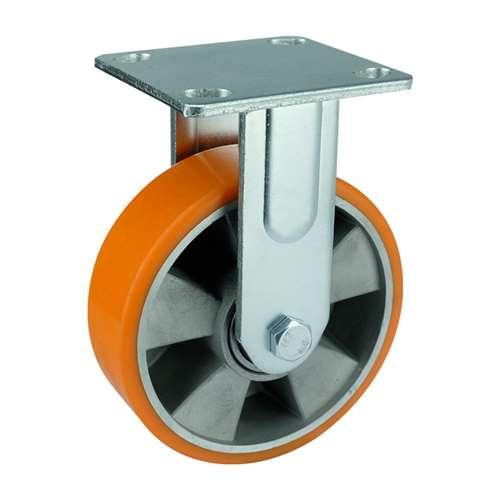

5" Heavy Duty Caster Wheel 926 Lbs Fixed Aluminium - PU - Top Plate Mount

5" Inch Caster Wheel 926 pounds Fixed Aluminium and Polyurethane Top Plate

VXB005C125BAPUF

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 175mm

Overall Height Inch= 6.890"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Aluminium and Polyurethane

Tire= Aluminium and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 926 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Heavy weight capability and Durability made the wheel casters like the VXB005C125BAPUF a must use, get your do it yourself object move around. Diameter size of the caster wheel has a metric standard 125mm which is equal to 4.921" inch with imperial units. The wheel has a width of 50mm=1.969" inch. The Caster with the wheel from end to end is 175mm = 6.890" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 115mm x 100mm x 6mm with the holes distance of 72mm x 85mm. This caster wheel core material is Aluminium and Polyurethane and has a Aluminium and Polyurethane tire spinning over Double ball beaing. Each caster will carry the load of 926 lb and is Fixed type. Environment temperature range is -40 to 180 F. Very important notice, you need to buy the VXB005C125BAPUF in order to get one :).
