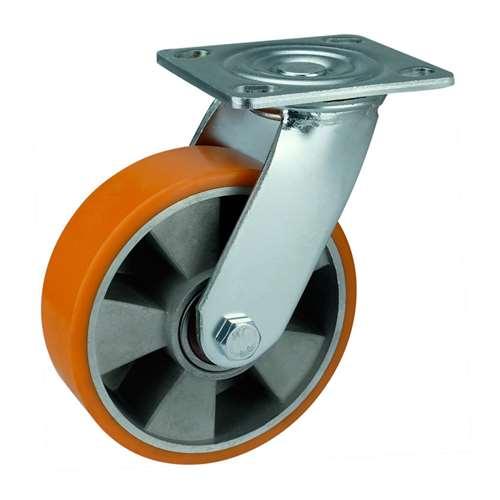

5" Heavy Duty Caster Wheel - Aluminium - PU - Top Plate Mount

5" Inch Caster Wheel 926 pounds Swivel Aluminium and Polyurethane Top Plate

VXB005C125BAPU

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 175mm

Overall Height Inch= 6.890"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Aluminium and Polyurethane

Tire= Aluminium and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 926 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Mounting VXB005C125BAPU is the Low cost solution of making a project to move around by pushing or pulling. And rolling on wheel that has 125mm diameter/4.921" inch. The thickness of the wheel is 50mm or 1.969" inch. Overall height of the wheel caster is 175mm = 6.890" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 115mm x 100mm x 6mm and holes distance of 72mm x 85mm. The weehl core material is Aluminium and Polyurethane and has a Aluminium and Polyurethane tire with a low friction Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 926 lb with a Swivel type. The caster temperature range = -40 to 180 F. Buy our VXB005C125BAPU, we wish all the best.
