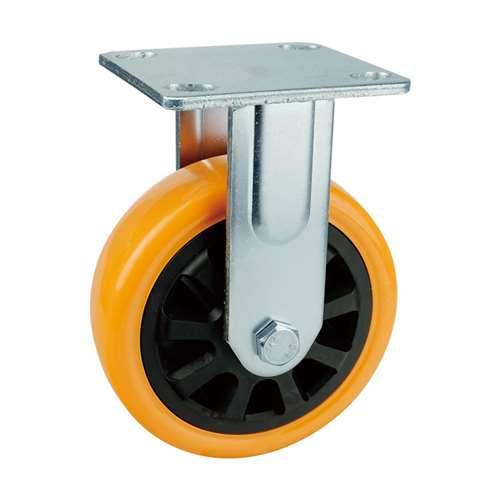

5" Heavy Duty Caster Wheel Fixed PU - Top Plate Mount

5" Inch Caster Wheel 507 pounds Fixed Polyurethane Top Plate

VXB005125HPUF

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 166mm

Overall Height Inch= 6.535"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polyurethane

Tire= Polyurethane

Bearing type= Double ball beaing

Load Capacity= 507 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Minimization of possible untoward effects on operator by installing VXB005125HPUF just ask your operator to push and pull, but not carry. And rolling on wheel that has 125mm diameter/4.921" inch. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 166mm/6.535" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 100mm x 115mm with the holes distance of 75mm x 85mm. The weehl core material is Polyurethane and has a Polyurethane tire with a low friction Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 507 lb with a Fixed type. Temperature range is -40 to 180 F. Buy our VXB005125HPUF, we wish all the best.
