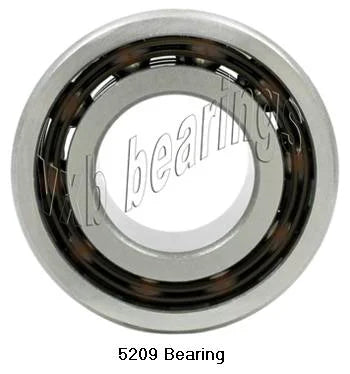

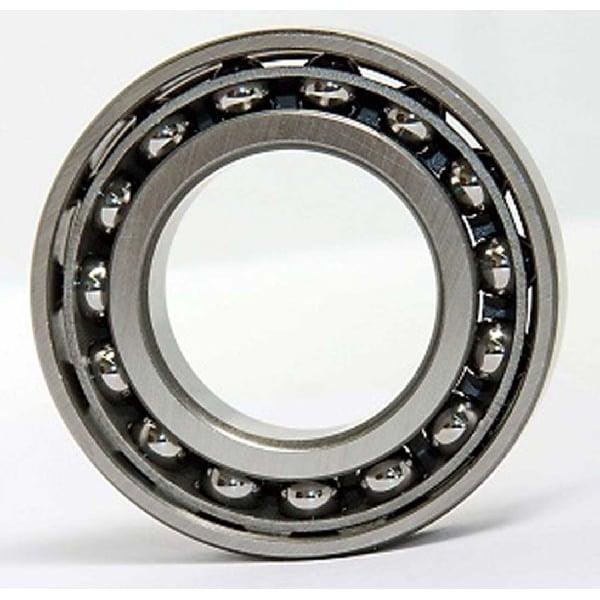

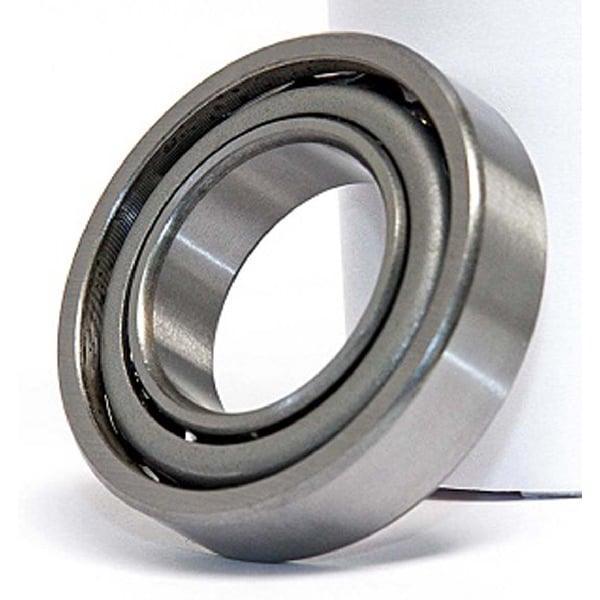

5209 Bearing Angular contact 5209

5209 Angular Contact Ball Bearing
✨ Double Row Chrome Steel - Built for Heavy Loads

The 5209 double row angular contact bearing is a rugged option for applications needing high radial and axial strength. Its two-row construction allows it to handle thrust from both directions, making it ideal for gearboxes, pumps, and tough industrial setups.

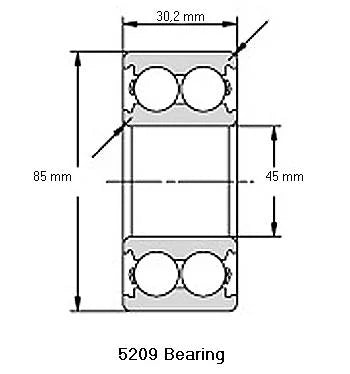

🟢 Size: 45mm ID x 85mm OD x 30.2mm Width
🟢 Chrome steel build for long-lasting use
🟢 Double row for extra load capacity
🟢 Grease-lubricated for 7,500 RPM operation
🟢 Clearance range: 1-15µm
🟢 Pack size: 1 bearing

Dimensions Table:

🟢 Basic dynamic load rating: 51 kN
🟢 Basic static load rating: 39 kN

☑️ Equal Fafnir 5209, 5209K, 5209W, 5209W-E7195, FB7075590
☑️ Equal FAG 3209, 3209B-TVH, 5209NW, 5209X
☑️ Equal MRC 5209C, 5209M, 5209SB, 5209SBK
☑️ Equal New Departure-Hyatt 5209, 5209W
☑️ Equal NSK 3209, 5209 / NTN 3209, 5209, 5209A
