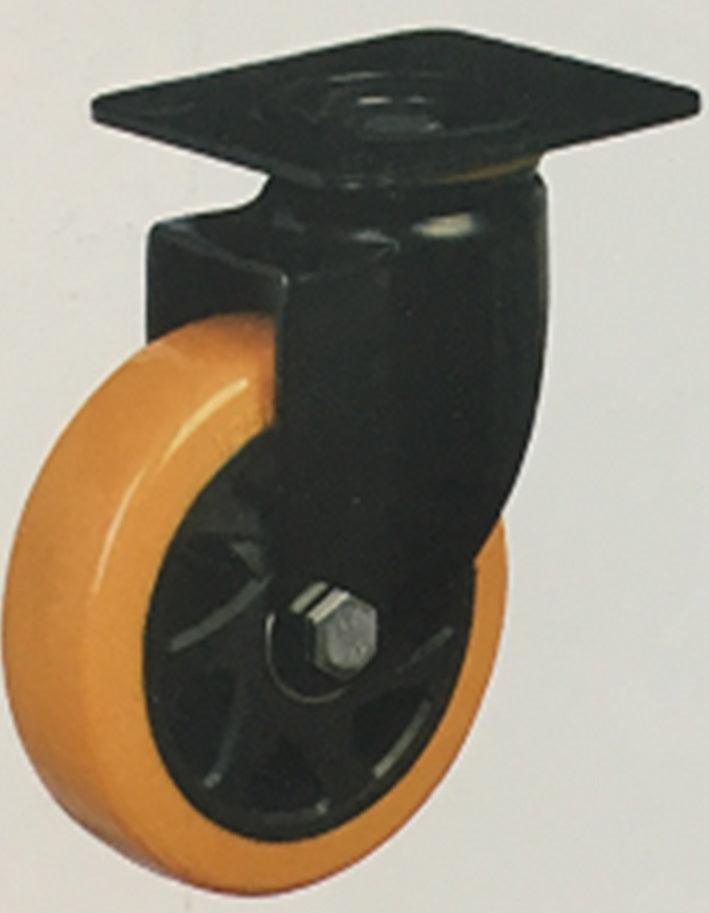

6" Caster Wheel - PU - Polypropylene - Top Plate Mount

6" Inch Caster Wheel 772 pounds Swivel Polyurethane and Polypropylene Top Plate

VXB0045150PU

Medium Duty

Wheel Diameter= 150mm

Wheel Width= 40mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 195mm

Overall Height Inch= 7.677"

Mounting Type= Top Plate

Top Plate Size= 110mm x 100mm x 4mm fork:3.5mm

Hole distance= 85mm x 75mm

Wheel Core= Polyurethane and Polypropylene

Tire= Polyurethane and Polypropylene

Bearing type= ball bearing

Load Capacity= 772 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB0045150PU. The wheel diameter is 150mm or 5.906" inch in inches. The wheel has a width of 40mm=1.575" inch. The caster dimensions heightwise is 195mm/7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 110mm x 100mm x 4mm fork:3.5mm and holes distance of 85mm x 75mm. Low drag was achieved by a Polyurethane and Polypropylene core on a Polyurethane and Polypropylene tire spinning freely with a ball bearing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 772 lb with a Swivel type. The caster temperature range = -40 to 180 F. Buy the VXB0045150PU now, just add the quantity to basket and click on Checkout.
