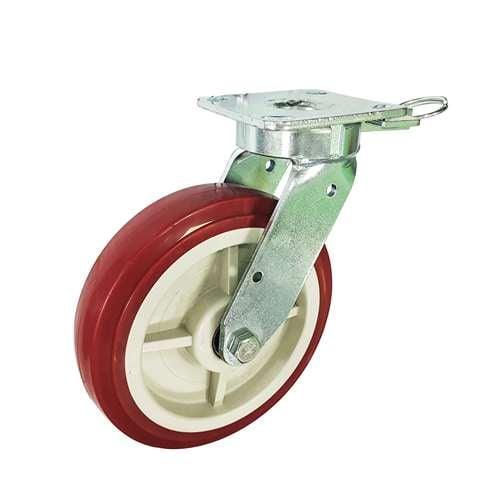

6" Heavy Duty Caster Wheel 1102 Lbs - Brake Aluminium - PU - Top Plate Mount

6" Inch Caster Wheel 1102 pounds Swivel and Upper Brake Aluminium and Polyurethane Top Plate

VXB005C150BAPUB3

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 200mm

Overall Height Inch= 7.874"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Aluminium and Polyurethane

Tire= Aluminium and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 1102 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Utilizing VXB005C150BAPUB3 makes it feasible to pull and push items instead of transport And rolling on wheel that has 150mm diameter/5.906" inch. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 200mm/7.874" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 115mm x 100mm x 6mm with the holes distance of 72mm x 85mm. Low drag was achieved by a Aluminium and Polyurethane core on a Aluminium and Polyurethane tire spinning freely with a Double ball beaing. Bearing in mind that every caster wheel has the load capacity of 1102 lb with a Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Buy our VXB005C150BAPUB3, we wish all the best.
