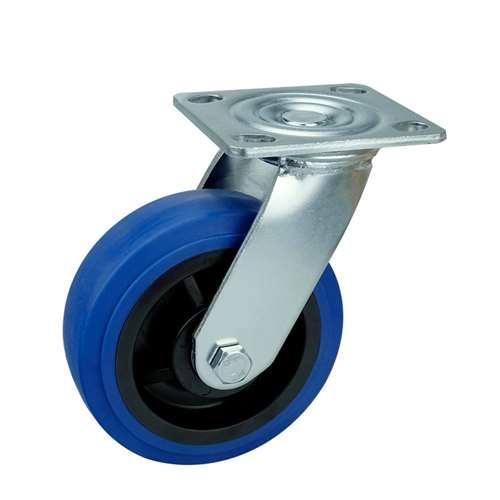

6" Heavy Duty Caster Wheel - TPR - Top Plate Mount

6" Inch Caster Wheel 617 pounds Swivel Thermoplastic Rubber Top Plate

VXB005150BTPR

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 195mm

Overall Height Inch= 7.677"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Thermoplastic Rubber

Tire= Thermoplastic Rubber

Bearing type= Double ball beaing

Load Capacity= 617 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Minimization of possible untoward effects on operator by installing VXB005150BTPR just ask your operator to push and pull, but not carry. And rolling on wheel that has 150mm diameter/5.906" inch. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 195mm/7.677" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The Double ball beaing design will enable the Thermoplastic Rubber tire to roll easily with a core made from Thermoplastic Rubber. Each caster will carry the load of 617 lb and is Swivel type. Environment temperature range is -40 to 180 F. Buy our VXB005150BTPR, we wish all the best.
